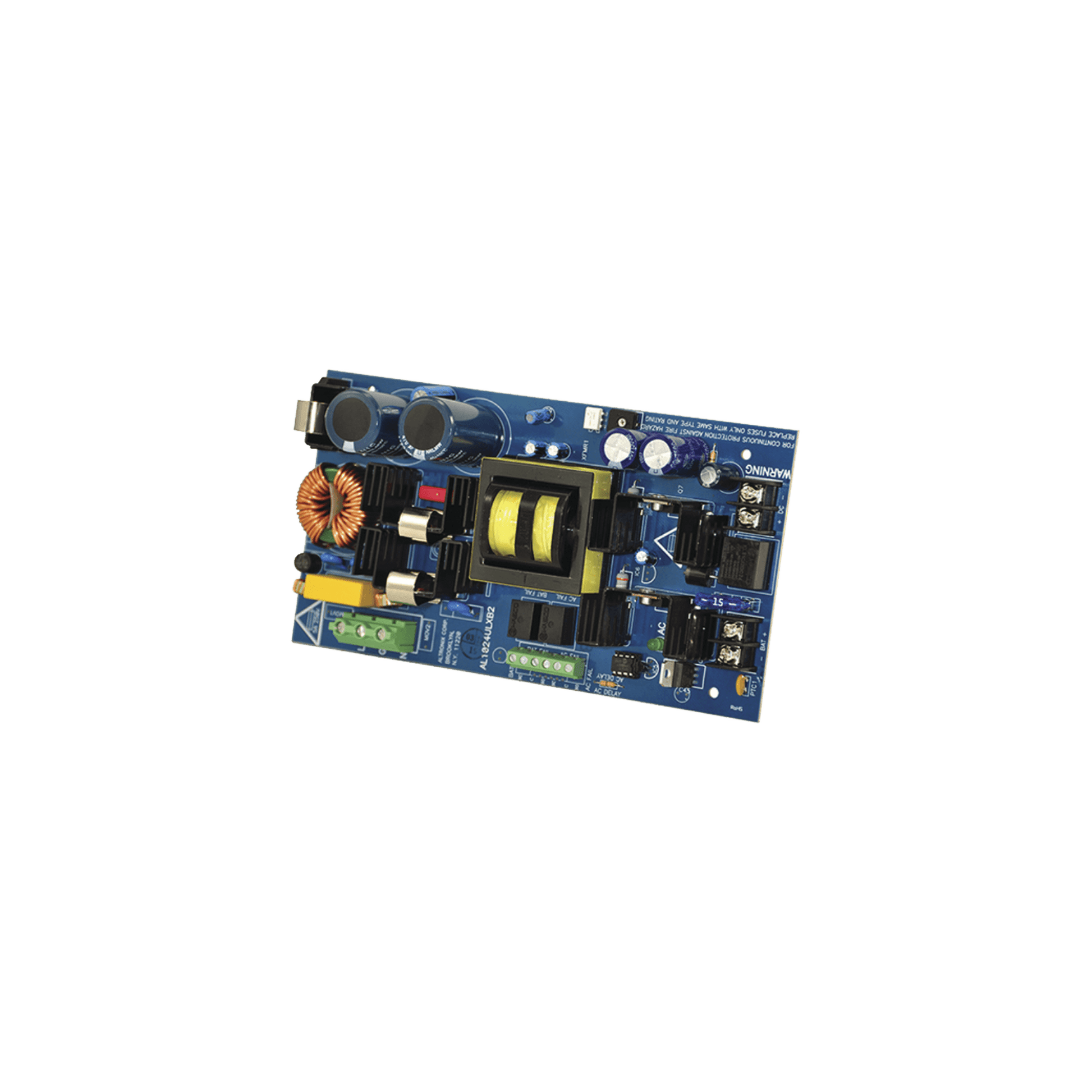

Card type power supply with output, 24VDC @ 10A

AL1024ULXB2 UL listed subassembly power supply/charger converts 115VAC input, 60Hz on a single 24VDC output without power limitation. It also offers a set of functions including AC fault monitoring, battery presence and low battery monitoring.

Characteristics :

• Input 115VAC / 60Hz, 4.2A.
• 24VDC output.
• 8A continuous supply current with 10A supply current during alarm.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.
• Maximum ripple: 250mV P/P

Backup battery

• Built-in charger for sealed lead acid or gel batteries.
• Automatic switch to standby battery when AC fails.
• Zero voltage drop when switching to backup battery.

Visual indicators

• AC input and DC output LED indicators.

Supervision

• AC failure supervision (form "C" contacts).
• Notification trigger can be selected for 30 seconds (factory set) or 6 hours.
• Low battery presence and battery presence monitoring (forms the "C" contacts).

Temperature:

• Operation: 0°C to 49°C (32°F to 120°F).
• Storage: - 20°C to 70°C (- 4°F to 158°F).
• Relative humidity 85% +/- 5%.
• BTU/Hr (approx.): 123 BTU/Hr.

Approximate dimensions):

• 4.505" W x 8.4" L x 1.955" H (114.427 mm W x 213.36 mm L x 49.657 mm H).

Approximate weight):

• Product weight: 1.15 lbs. (0:52 kg).
