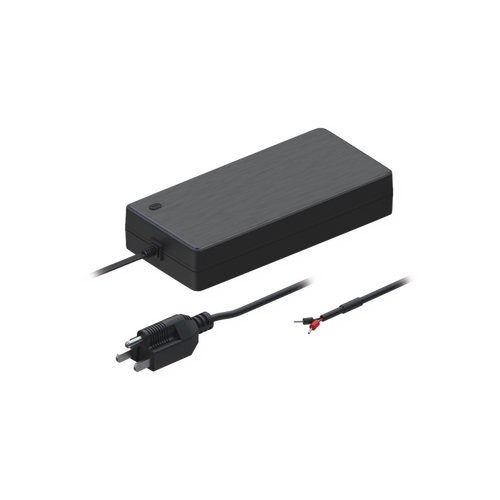

2-pin power supply, 54 Volts 250W

  • 62d53435f74f810cb503054749d174f3
  • 62d53435f74f810cb503054749d174f3
1 2
  • Voltaje de entrada 100-240 VAC, adaptable internacionalmente
  • Corriente de entrada máxima de 3.9 A
  • Salida de 54 VDC para equipos profesionales
  • Protección contra cortocircuito incorporada
  • Certificaciones de seguridad IEC, UL y CAN/CSA

Out of stock

Modelo: PR320USA

Proveedor: TELTONIKA

Código SAT: 39121000

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details
TECHNICAL DATA

  • GENERAL

  • input voltage

    100 – 240 VAC

  • Input frequency

    50/60Hz

  • Input current

    3.9A

  • Input connector

    US (Type A)

  • Output voltage

    54VDC

  • Output current

    4.62A

  • Output connector

    2-pin, with cord end terminals

  • Weight

    910g

  • ADDITIONAL

  • Input voltage range

    90 – 264 VAC

  • Input frequency range

    47 – 63Hz

  • Maximum input inrush current

    60A

  • Output voltage maximum deviation

    51.3 – 56.7 VDC

  • Short circuit protection

    ✓

  • HIPOT (dielectric withstand test)

    Primary to Secondary: 1500 VAC

  • Certification

    Safety: IEC62368-1 (CB Scheme) UL 62368-1:2014 CAN/CSA-C22.2 No. 62368-1-14

    EMC: FCC Part 15:2019 / ANSI C63.4:2014
