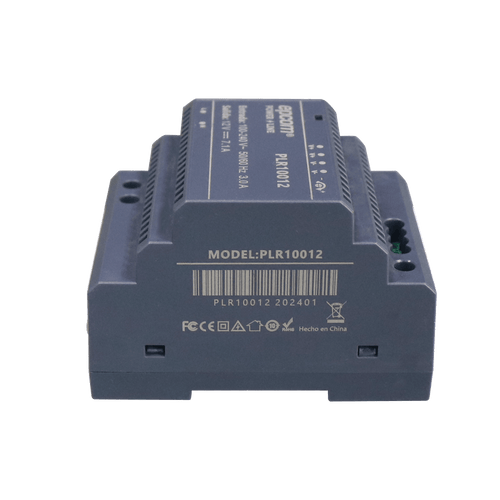

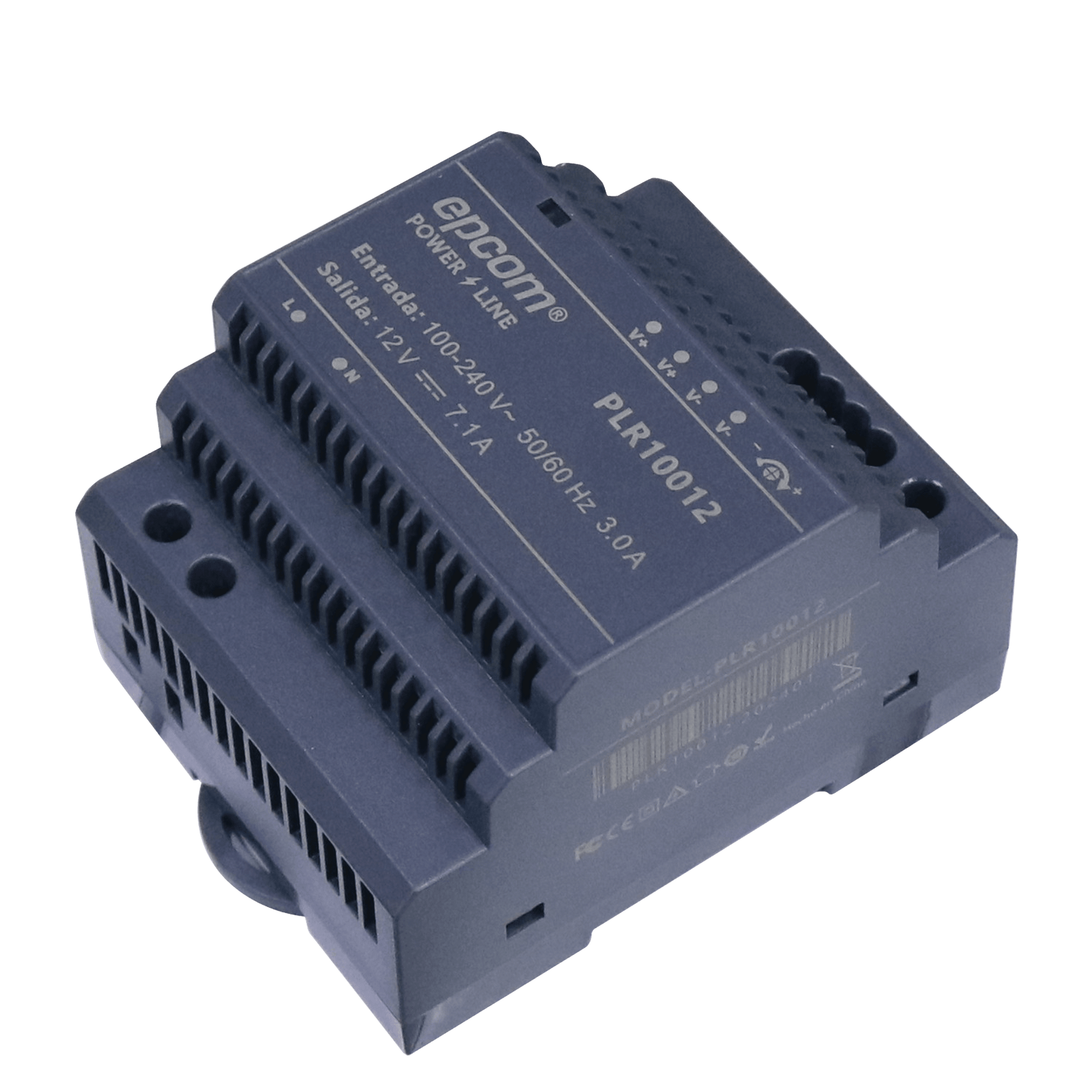

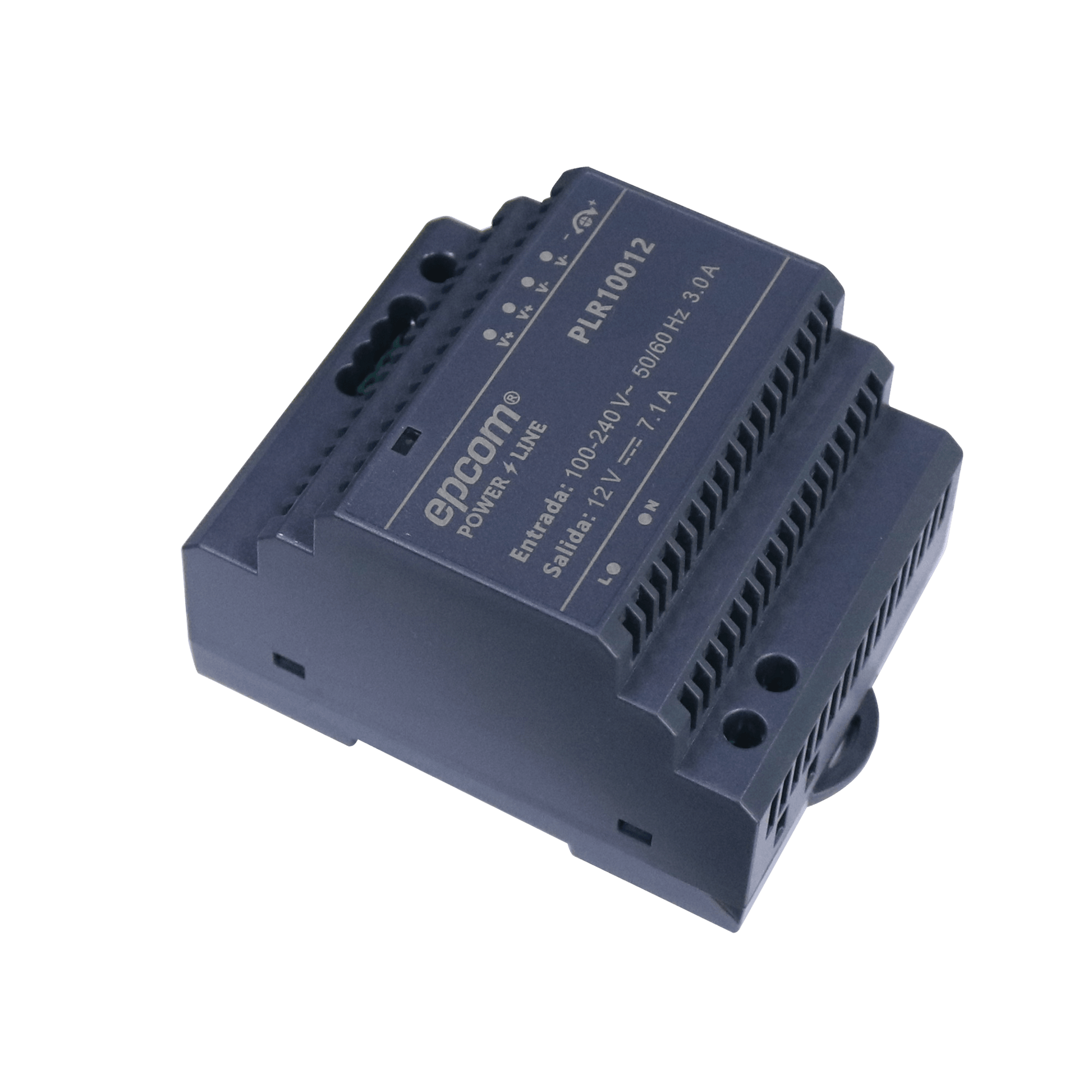

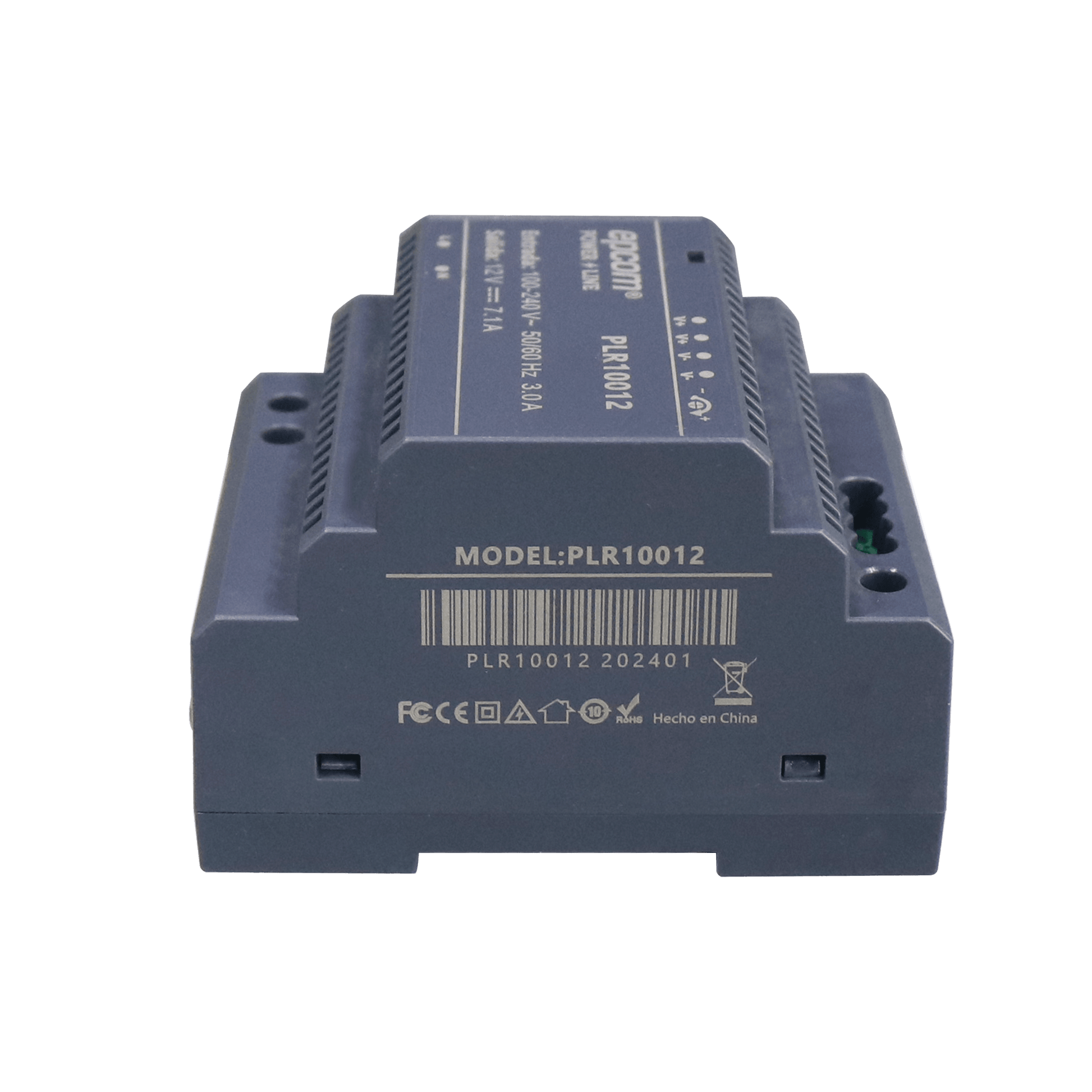

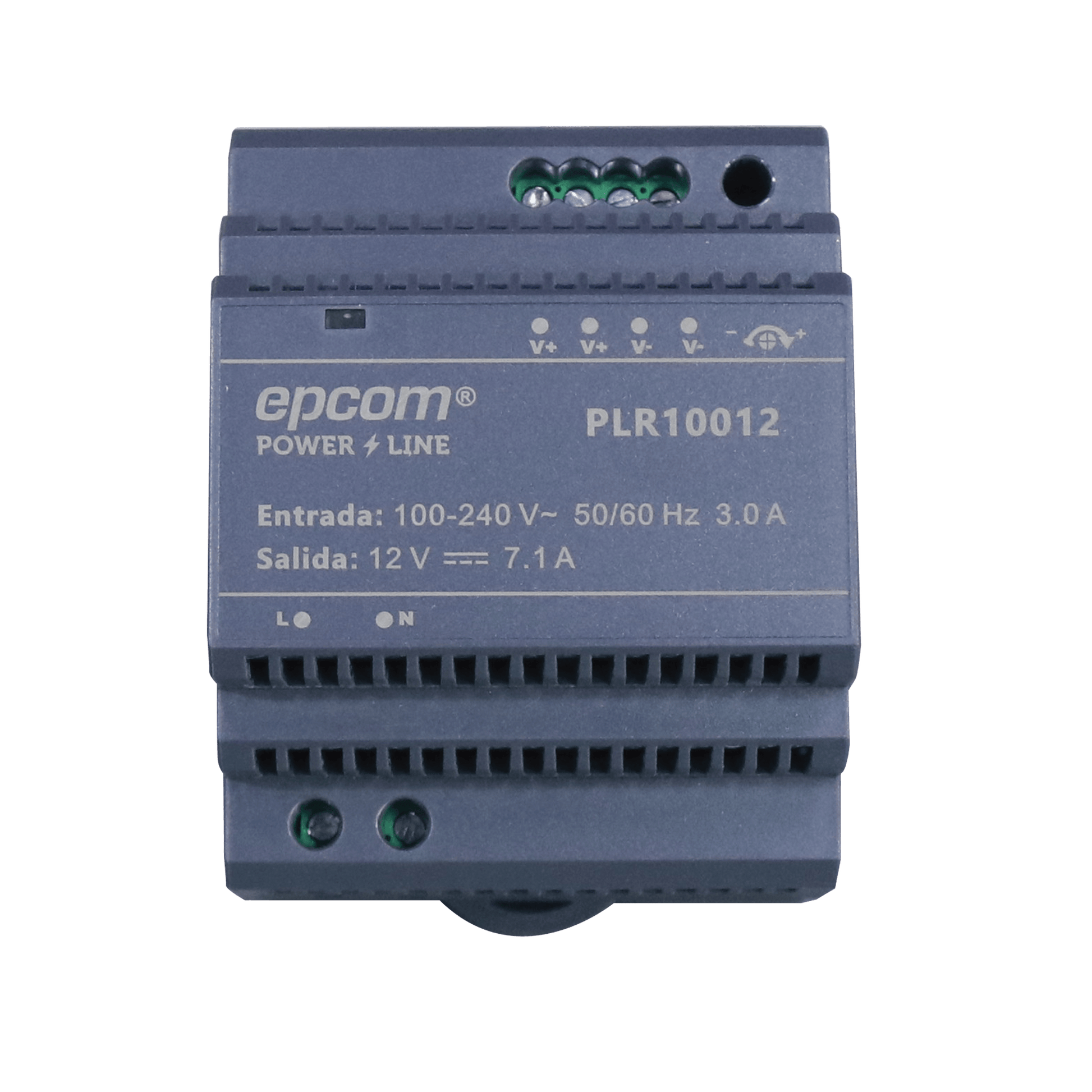

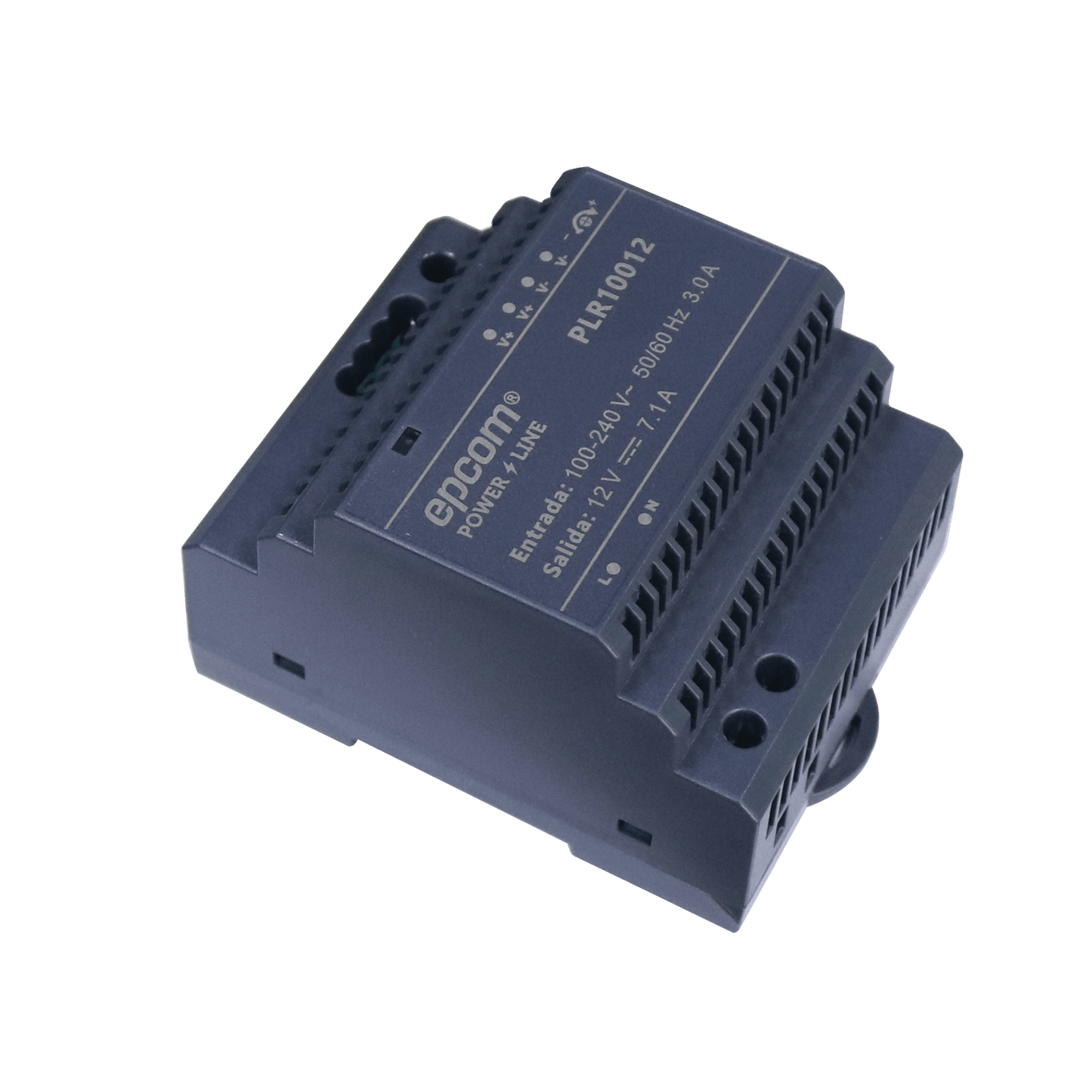

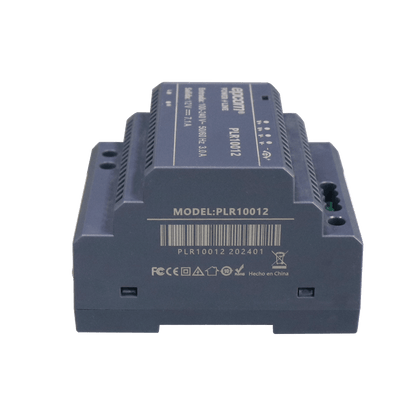

12 Vdc / 7.1 A / 85.2 W power supply

  • b8986b178be52b58a0a39285abcad713
  • 75e0ff88899a82fe44b1bd1618bd6988
  • a5b355db63f018ca2b214077db6e8859
  • 4561a5787a7d7f2f86e6ce1202d12472
1 4

Out of stock

Modelo: PLR-100-12

Proveedor: EPCOM POWERLINE

Código SAT: 39121006

Tax included.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

PLR10012

12 Vdc power supply @ 7.1 Amps 85.2 W

Power systems for applications in electronic security and communication systems.

Characteristics

  • Input voltage: 100-240 Vac
  • Output voltage: 12 Vdc
  • Output current: 7.1 mA
  • Nominal frequency: 50-60 Hz
  • Output power: 85.2 W

Physical specifications

  • Input: Pin terminals
  • Output: Terminals 5.5 x 2.5 mm
  • Material: ABS Plastic
  • Color: Black
  • Operating temperature: -30°C to 70°C
  • Dimensions (L x W x H): 94.2 x 70 x 58.4 mm.
  • 1 year warranty.

Applications

  • Electronic security systems
  • Communication and control systems
  • Telecommunications systems
  • Radio communication systems
