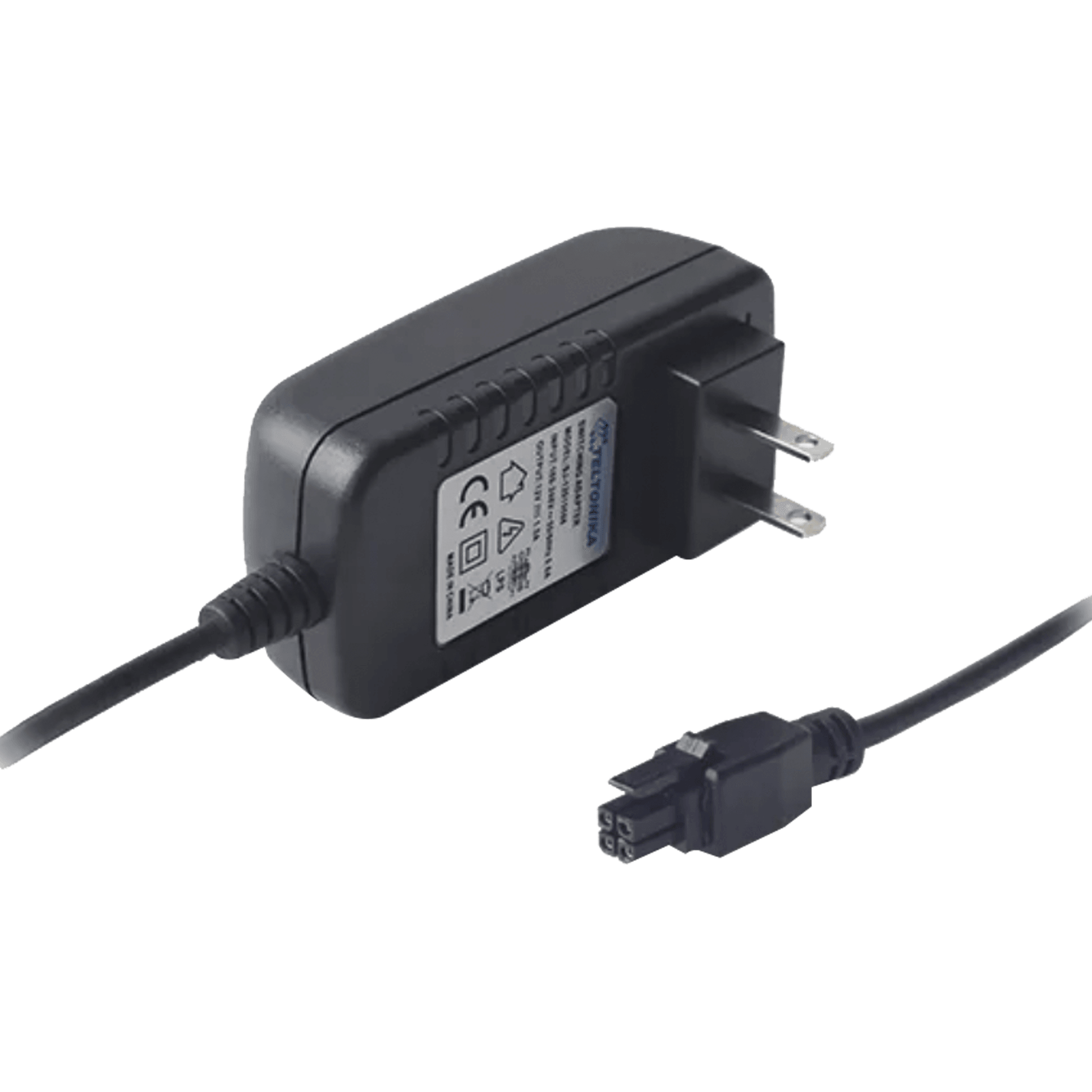

Power Supply, 4 pin, 12 Volts, 24 Watts

  • 49edf28298e0fe450dafc37f64a1c518
1 1

Out of stock

Modelo: PR3P2US3

Proveedor: TELTONIKA

Código SAT: 39121006

Tax included.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Parameters
Nominal value absolute maximum
Input voltage 100-240 VAC 90-264 VAC
Input frequency 50/60Hz 47-63Hz
Input current (@100-240VAC) 0.6A -
Input current (@100-240VAC) - 40A
Output voltage 12VDC 11.40-12.60 VDC
Output current 0-2A -
Tolerance 5 % 10%
Other parameters
Short circuit protection
Ingress protection Fuse
HIPOT (dielectric strength test) Primary to Secondary: AC3000V
MTBF 50000 hours
input connector U.S.
Output connector 4 pins, 3mm connector
Certification: UL 60950-1;
CSA C22.2 No. 60950-1-07;
47 CFR FCC part 15 subpart B, 10-1-2016;
ANSI C63.4:2014;
IEC 62368-1:2014;
J62368-1 (H30).
