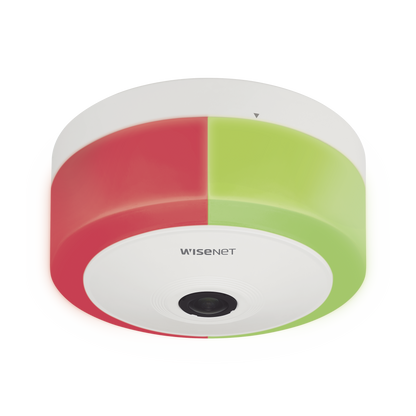

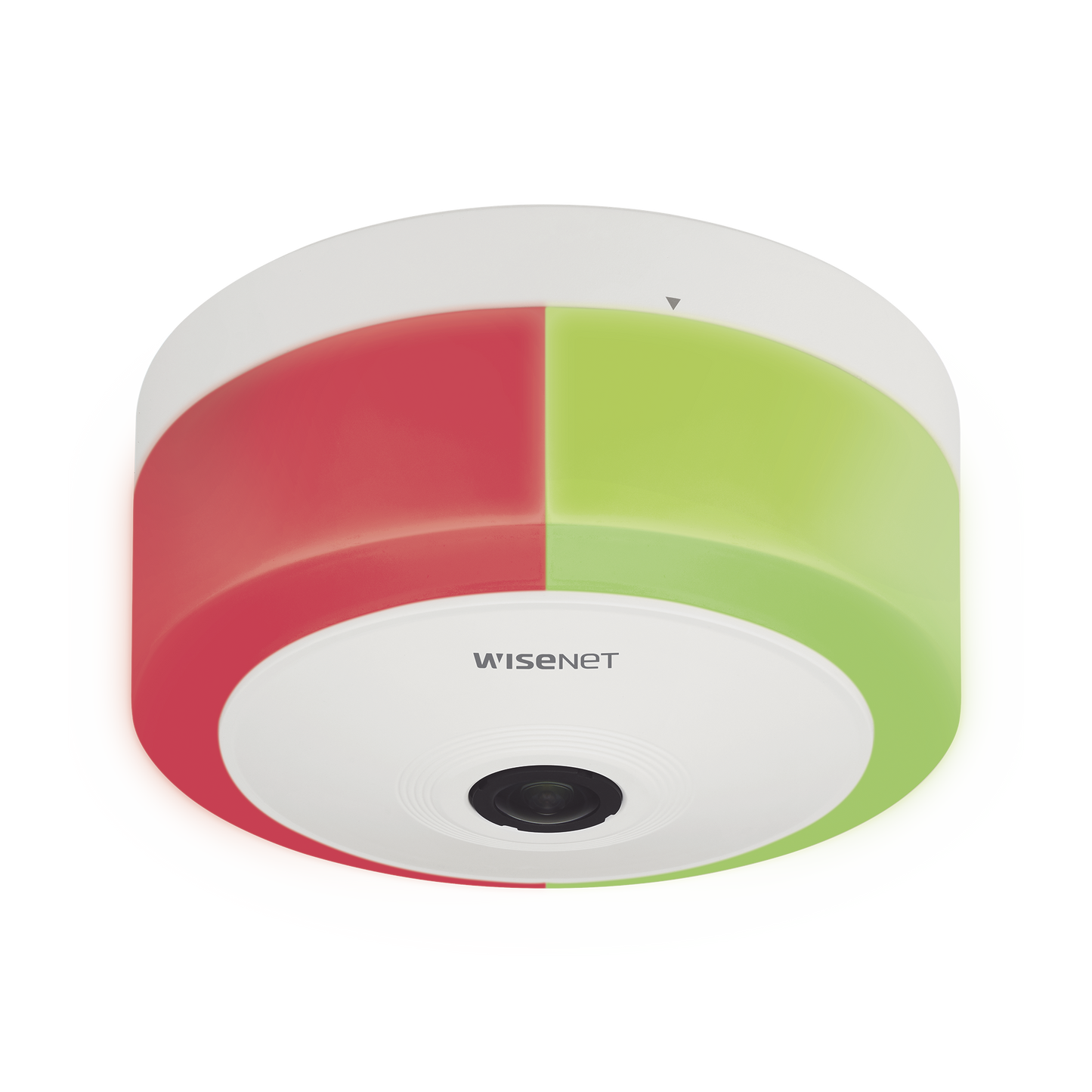

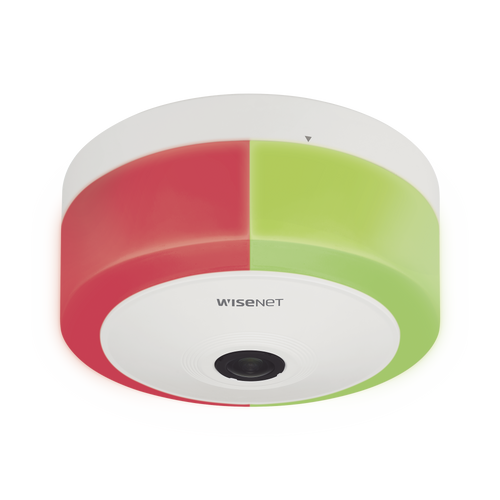

Fisheye IP 12 Megapixel / WDR 120dB / 16X Digital PTZ / For parking applications

  • 2cd22725052a553d0f79c6bb58178837
  • 2cd22725052a553d0f79c6bb58178837
1 2

Low stock: 1 left

Modelo: TNF-9010

Proveedor: Hanwha Techwin Wisenet

Código SAT: 46171610

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Camera Features:

  • Image Sensor: 1/2.3" 12MP CMOS.
  • Minimum illumination: Color: 0.39 Lux (F2.2), B/W: 0 Lux (IR LED On).
  • Shutter speed: 2 ~ 1/12000s
  • Real Day/Night with ICR filter.
  • Fixed lens: 1.08 mm.
  • Features: Real WDR (120dB) HLC, BLC
Advanced video analytics:
  • Manipulation, virtual line, entry/exit, appear / disappear, audio detection and blur detection.

Video compression and maximum resolution:

  • Compression: H.265 / H.264 / MJPEG
  • Maximum resolution: 4000 x 3000 (12 MP).

Multiple views:

    • Fisheye, Individual Panorama, Double Panorama, Simple overview

Network and storage features:

  • Storage: Supports microSD 2 slots of maximum 512GB
  • ONVIF: Profile S / G/T, SUNAPI.

Interfaces and Audio:

  • Audio: 1 input and 1 output.
  • Network: 1 RJ45 10/100 Mbps port.
  • Alarms: 1 configurable input and output
  • Built-in microphone.

Physical and electrical characteristics:

  • Operating temperature: -10 to 60 °C, humidity less than 95%.
  • Power: 12Vdc / PoE (802.3af) / 12.95 W.
  • Protection: Interior
  • Dimensions: Ø 158 × 80.5 mm.
  • Weight: 1280 gr.
 Warranty: 3 years.

Demonstrative video of the Fisheye Camera:

Video note: The video is taken at 1080p (2 MP), In practice, the image will be displayed 6 times better since the camera recording is in 4K (12 MP).
