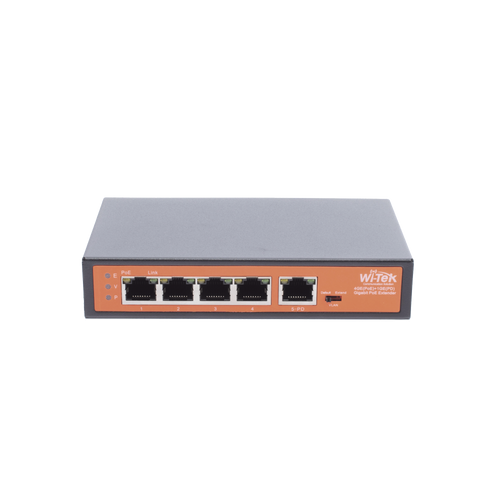

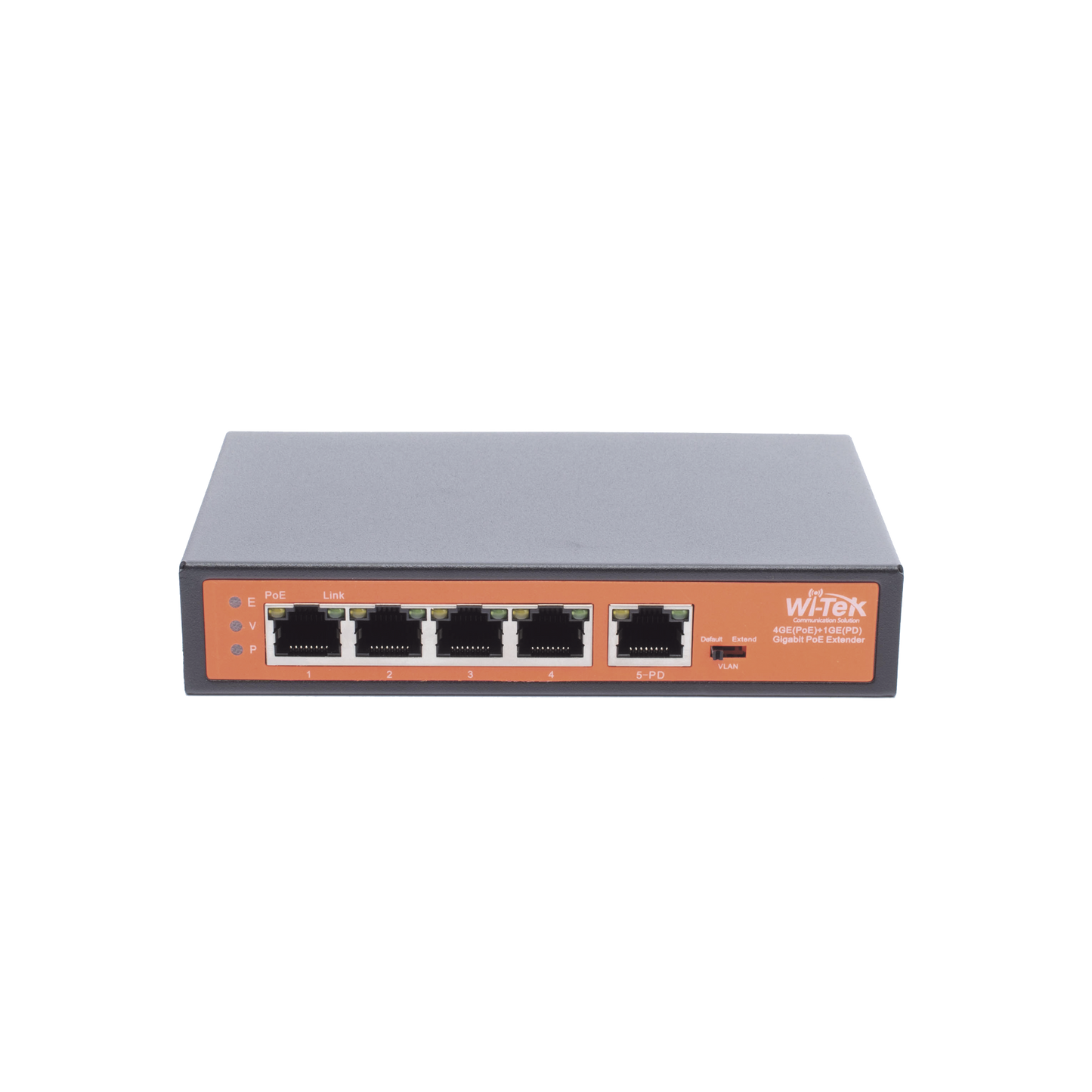

PoE Extender / Input up to 90 W / 4 Gigabit PoE ports 802.3 af/at output / PoE Extender up to 250 m / Not manageable

  • 39a2e34185bb12b1aaa4c0a9c9719d63
  • 39a2e34185bb12b1aaa4c0a9c9719d63
1 2
  • Maximum extension 650 m
  • PoE extended 250m
  • PoE input up to 90W
  • PoE output up to 30W
  • Port Insolation

Low stock: 1 left

Modelo: WIPE51G

Proveedor: WI-TEK

Código SAT: 43222610

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

PoE Extender multiple PoE outputs

With the extender. PoE we can implement multiple connections of energized equipment using standardized PoE.

We can reach distances of up to 650 m, We have to take into account the capacity with which we energize the extender

To reach greater distances, we have to take into account the. capacity with which we will power the extender, We can see that in the image we have a 90W PoE injector

PoE extender up to 250 m.

Specifications

Dimensions 148 x 82 x 28mm
Network Interfaces (5) 10/100/1000 Mbps ports
Feeding

-----
PoE PIN

In: 4,5(+) 7,8(-) or 1,2(+) 3,6(-)
Out: 4,5(+) 7,8(-) or 1,2(+) 3,6(-)
PoE ports (RJ45)

(4) Output 802.3 af/at 30W
(1) 802.3 af/atbt 60W input
Operating temperature -10 to 55°C
Certifications CE, FCC, RoHS
Others
Package content PoE Extender
Installation guide
