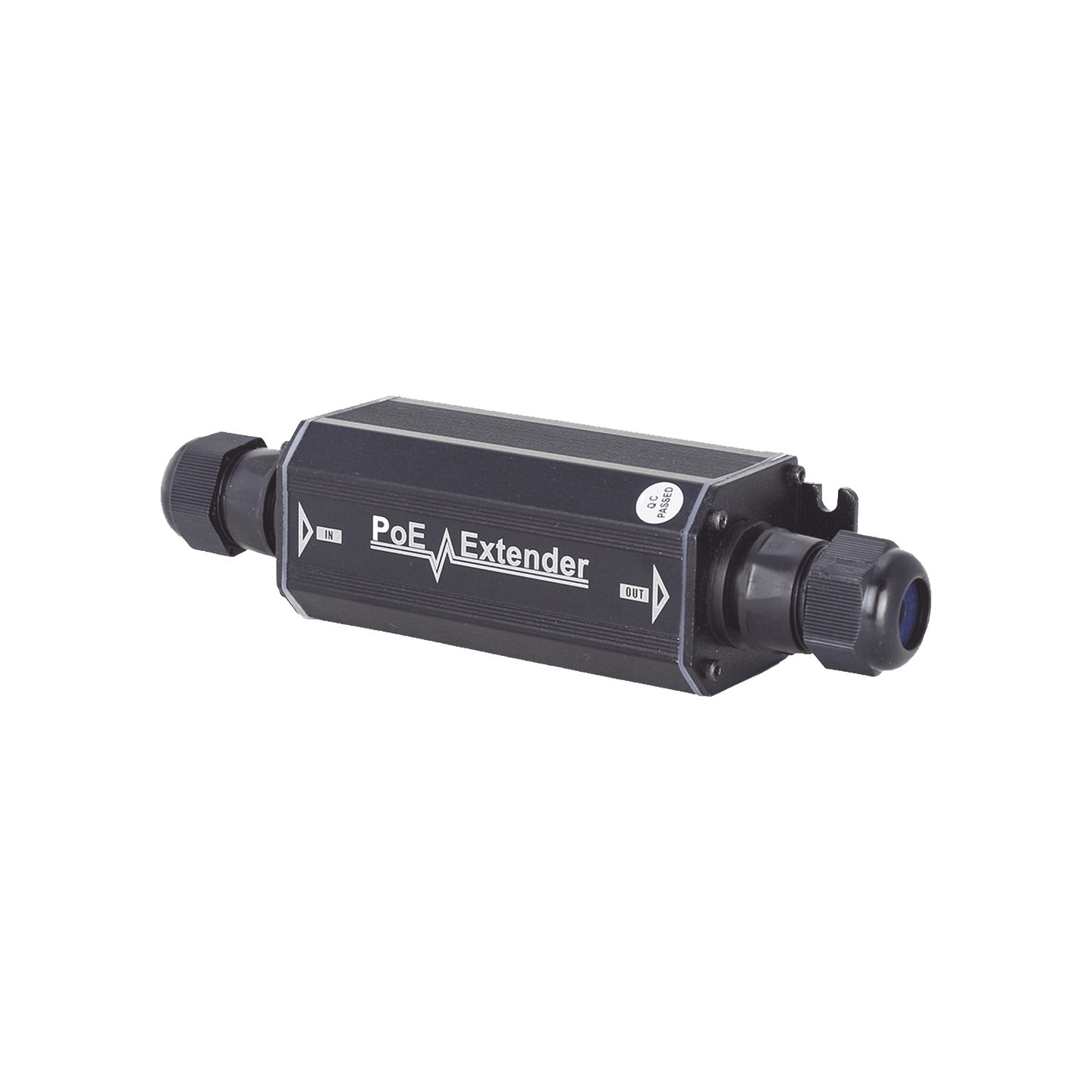

PoE Extender / 100 Meters / Outdoor (IP66) / 60 Watts / 1 Input Port / 1 PoE Output Port / No power required.

  • d02935d99c8ec6a5c4f36fca323426ba
  • 27981223b948c11437eaae845324bacb
  • 8a17c2ec890946b82da6cc0262b209c8
  • 6574bd79b1d3ee5d0ae5d65d90f7f117
1 4

212 in stock

Modelo: TT-2001EX-POE

Proveedor: EPCOM POWERLINE

Código SAT: 43222600

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

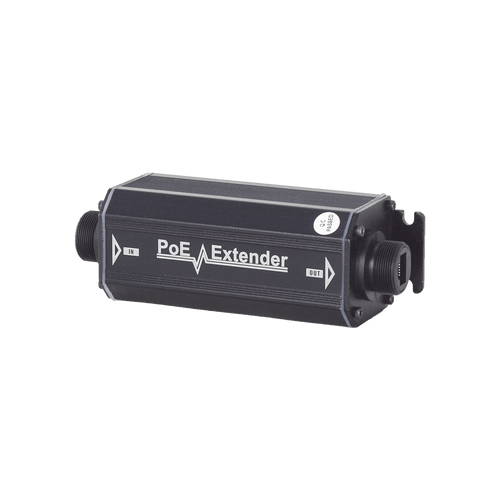

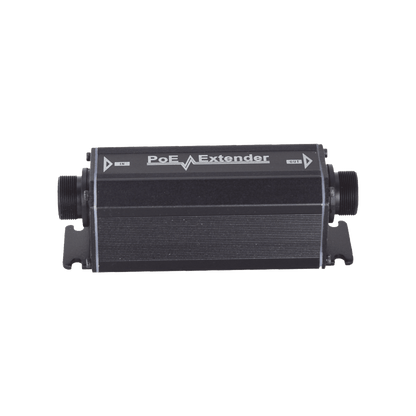

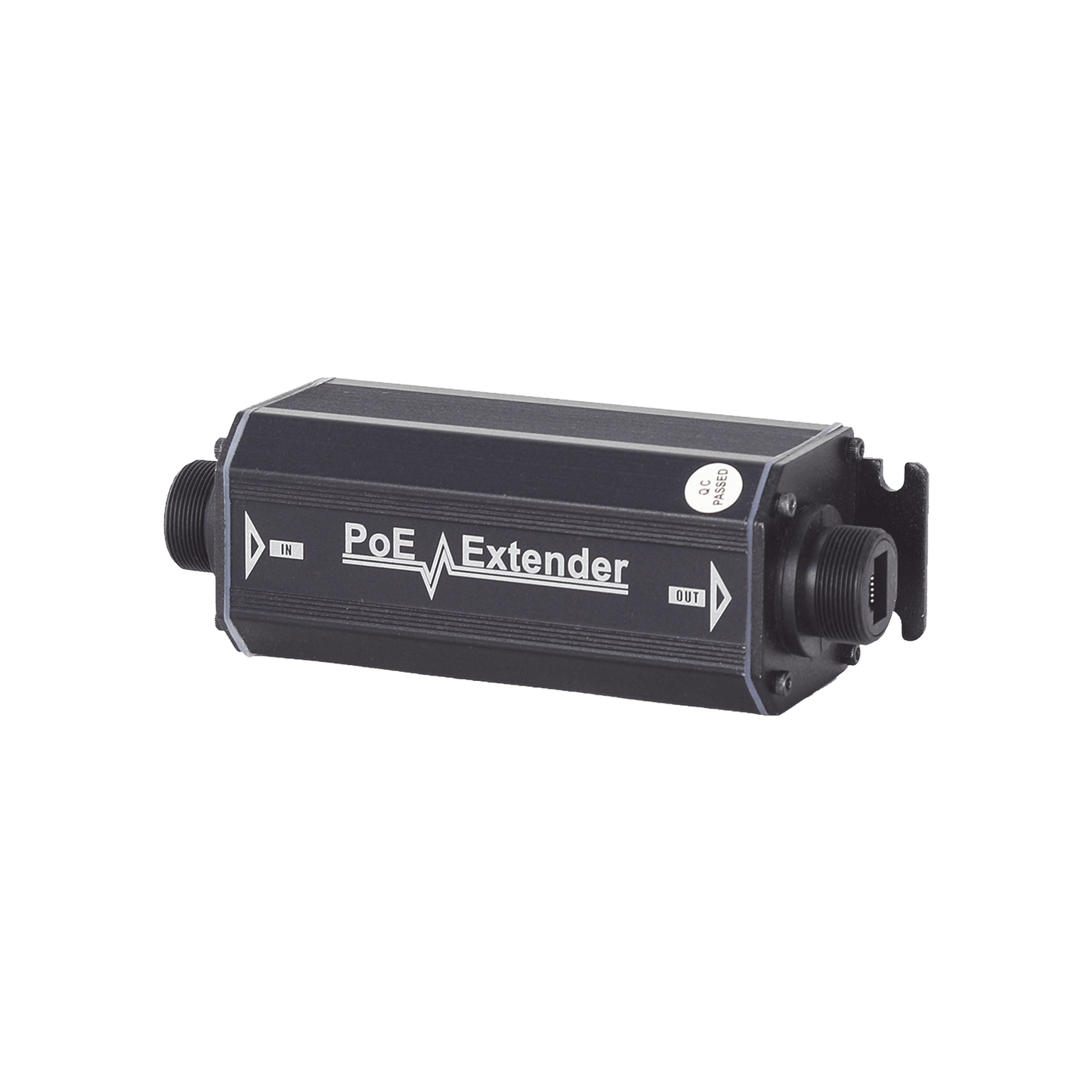

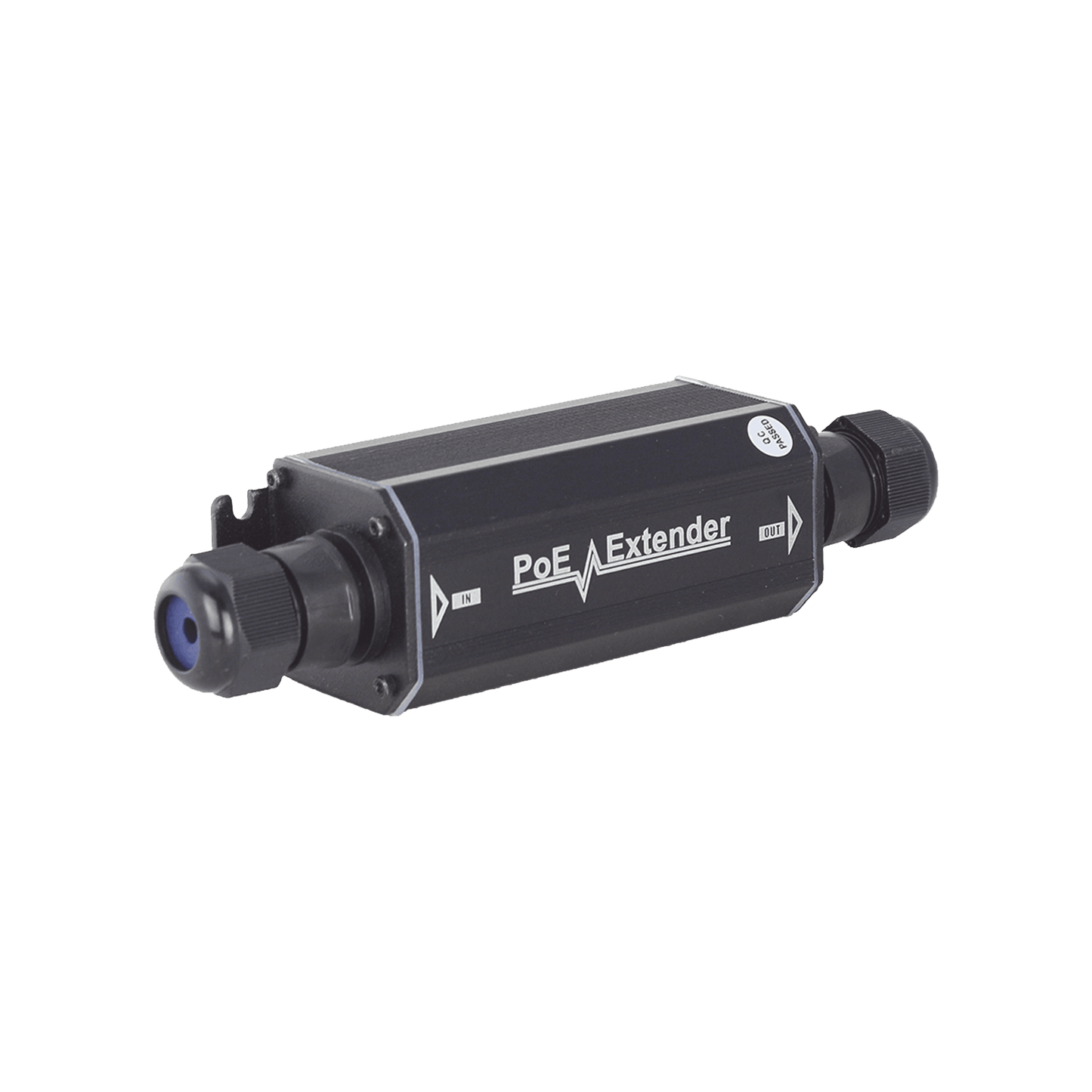

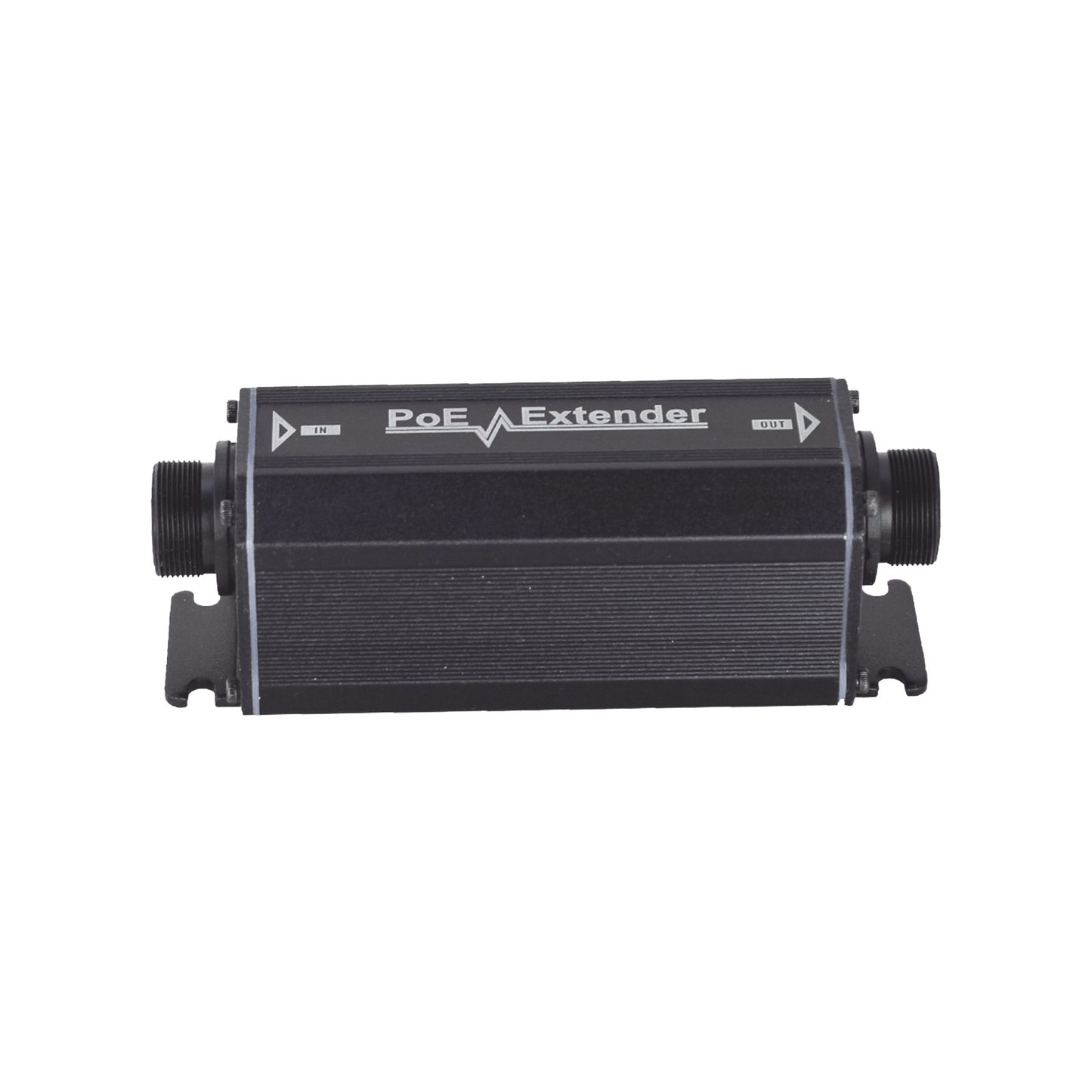

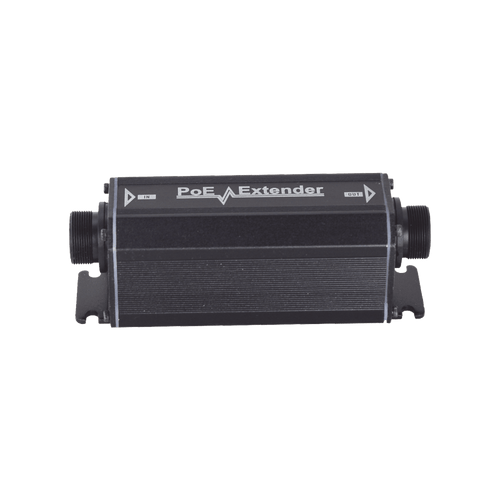

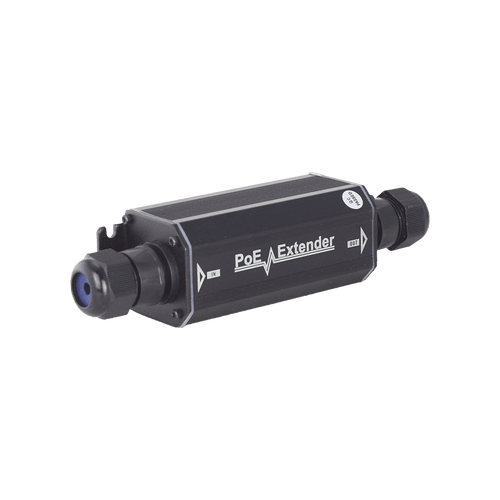

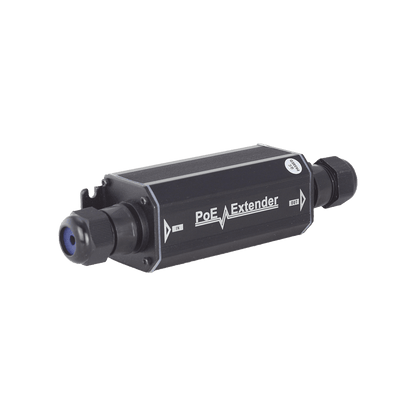

TT-2001EX-POE

Outdoor Gigabit Poe Extender 1 POE IN PORT / 1 POE OUT PORT

Ethernet and PoE connections restrict cable distances to 100 meters between network ports. To overcome this distance limit, Network installers can simply connect a TT-2001EX-POE extender inline with Cat-5e or Cat-6 (outdoor) cable. With Gigabit PoE Extender, PDs (such as IP security cameras and wireless access points) can be installed at distances greater than 100 meters from each other. By connecting the PoE extender for every additional 100 meters of cable, Both Ethernet and PoE can extend to 200 meters, depending on the required PD power and power supply.The TT-2001EX-POE does not require any additional power supply and the connected PDs are powered by a single PoE or Mid-span switch, which simplifies installation. PoE Extender offers two Gigabit Ethernet ports, which are automatically configured for link speed, duplex and crossed, and full-speed network performance is maintained. PoE in connection PoE switch, powered support 12.36 or 45.78, Support IEEE802.3af and on power supply, PoE output for supply terminal 1 Gigabit, total PoE power can reach 25w (PoE switch must provide IEEE802.3at power)...

Main Features:

  • Extends PoE and Gigabit Ethernet range an additional 100 meters
  • Compatible with IEEE802.3af and IEEE802.3at
  • Full-rate Gigabit network over extended distance
  • Automatically detects and protects PoE equipment so it is not damaged by incorrect installation
  • IP66 compliant (support outdoor rain prevention, need outdoor UTP cable)
...

Physical and Electrical Characteristics:

  • No additional power supply required
  • Dimensions LxWxH 185 mm x 45 mm x 45 mm
  • Operating temperature -15℃ -55℃ / 10% -80% RH (non-condensing)
  • Operating humidity Maximum 90%, no condensation
  • Storage temperature: -30 to 70 ℃
  • Storage humidity: Maximum 95%, no condensation
...

Featured Features:

  • Wall mount design
  • Indoor or outdoor use
  • Data transfer speed: Full duplex/half duplex 10/100/1000 Mbps
  • IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
  • Easy installation; plug and play
  • Shielded RJ-45 connector EIA 568A and 568B
  • 1 year warranty
