HDMI Video Extender | Fiber Optic SM | 4K resolution | 10Km | Stereo Audio, Infrared, RS232 | USB 2.0

  • 3ad785281ded5c10668e14e2192f5416
  • 4b60cca15d8f8e60bdbe9ebbc4fa7543
  • eb389ea9eb64ac61f594e01dbcd9c31c
  • 6f97559fdc08049d8ff5f516c403b525
  • 2bd95c1e98042238f758b21cb215a50c
  • 4bc2a6897e024a78e21ef83b3fc3a560
  • fc5b83b0186a9bec1d386b7b81527dec
1 7

Out of stock

Modelo: VE883K2

Proveedor: ATEN

Código SAT: 52161500

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

HDMI/USB Cat 5 Extender (1080p@40m)

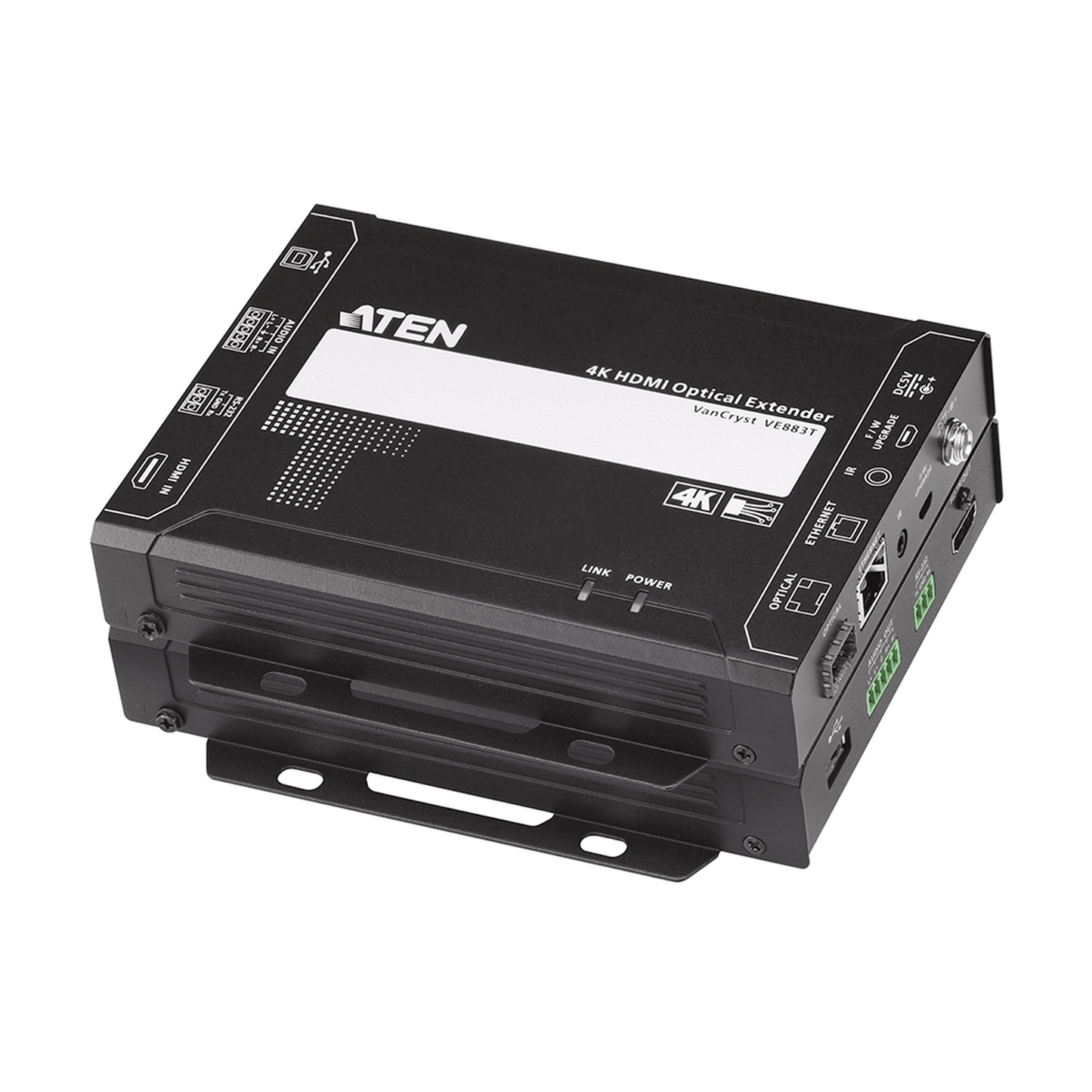

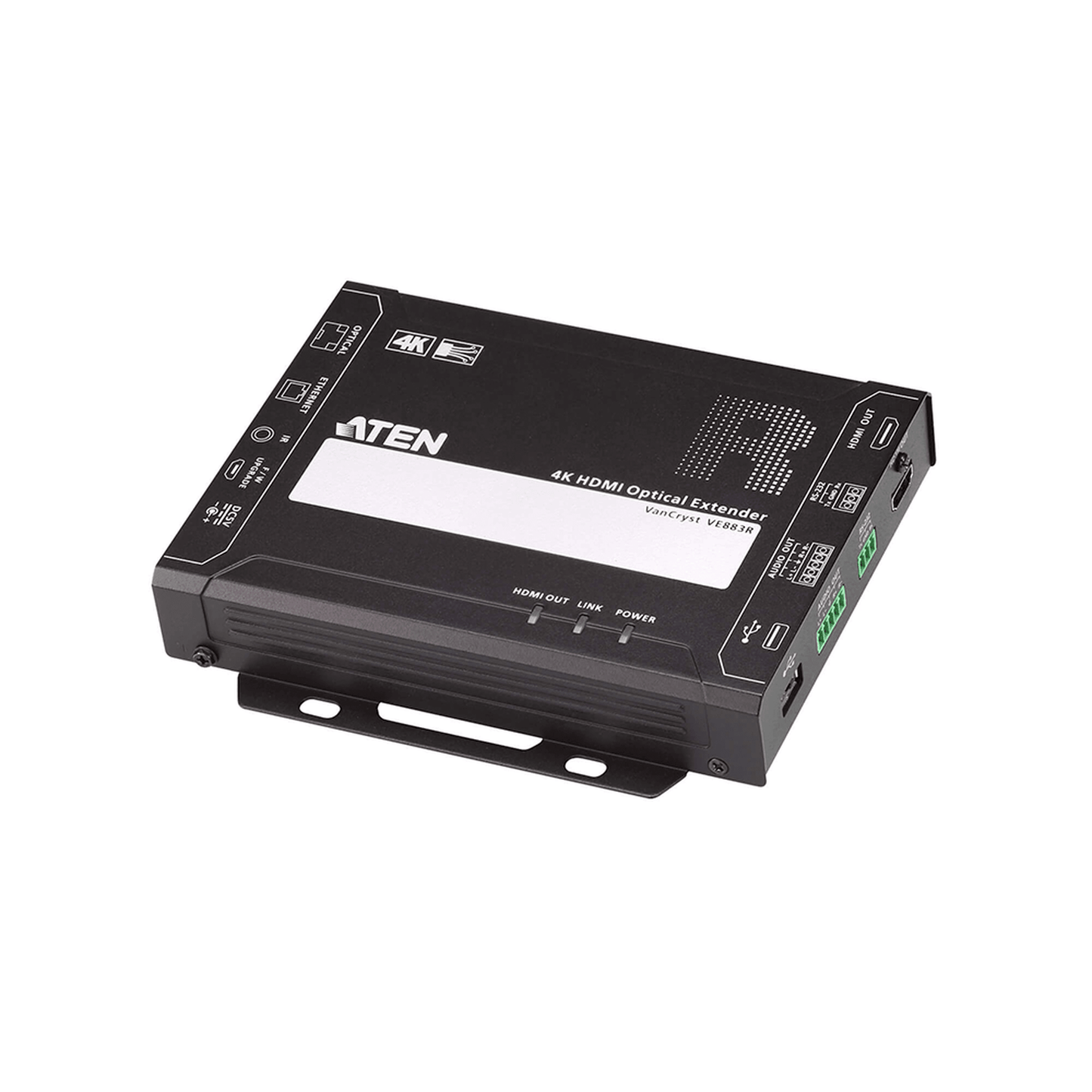

Fiber optic extender that facilitates the transmission of uncompressed 4K signals up to 300 m (with VE883K1) or 10 km (with VE883K2) using fiber optic cables. Complies with HDMI specifications to ensure high video quality, supports 3D, Deep Color up to 12 bits and rates up to 10:2 Gbps. ATEN's FarSmooth technology enables lag- and freeze-free video playback, even over long distances. Compact solution to extend Ethernet signals, GO, HDMI, RS-232 and USB up to 10 km, and is compatible with a variety of USB devices, avoiding the need for bulky cables and complex installations. It is ideal for applications that require good long-range signals with minimal interference, such as transit stations and modern office buildings.

General characteristics

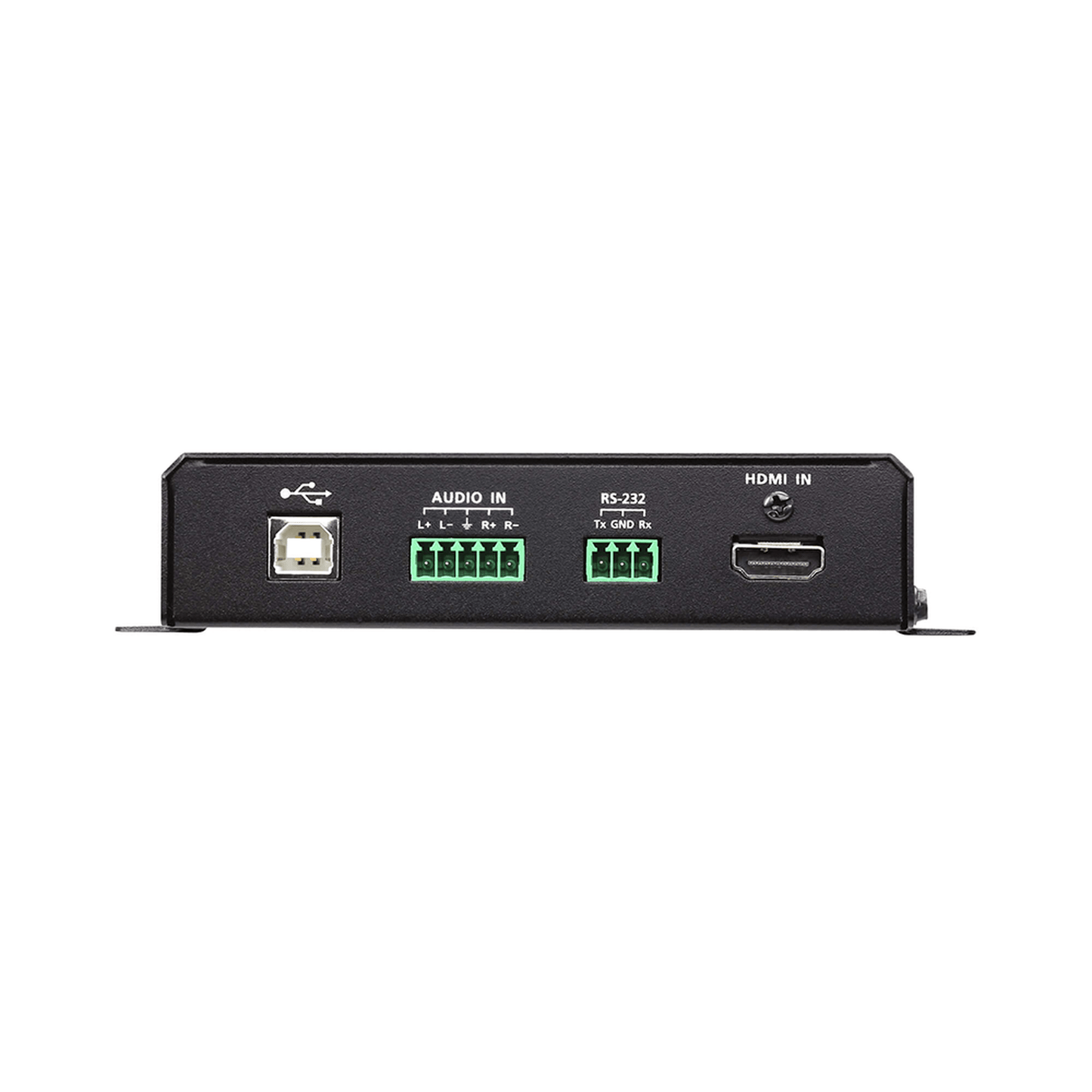

  • Video Input VE883T:
    • 1x HDMI Type A Female (Black)
    • Impedance: 100Ω
    • Max Distance: 5 meters

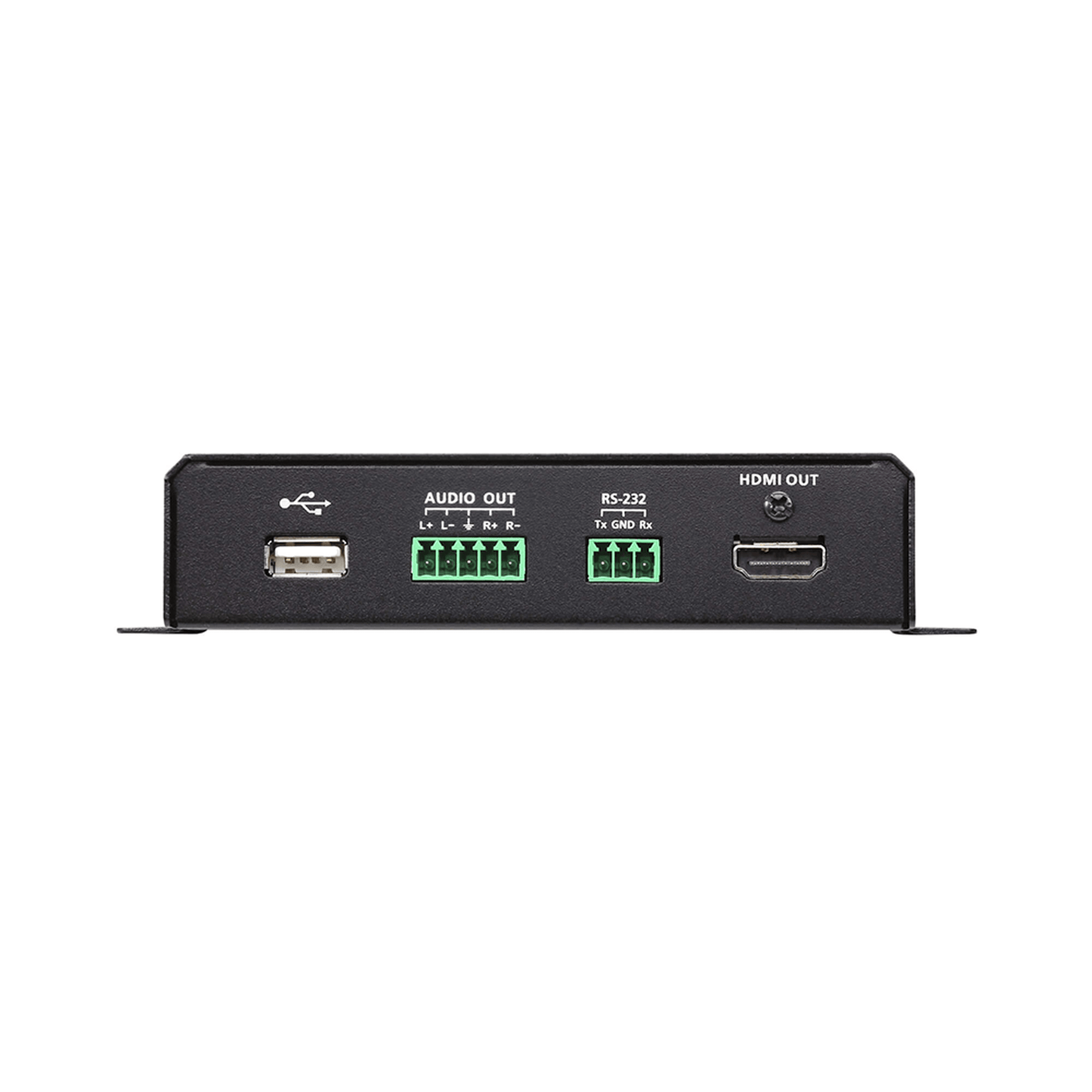

  • Video Output VE883R:
    • 1x HDMI Type A Female (Black)
    • Impedance: 100Ω
    • Max Distance: 10 meters
  • Audio:
    • Input VE883R: 1x Terminal Block: 5 poles (green)
    • Output VE883T: 1x Terminal Block, 5 poles (green)
  • VE883R-VE883T Video:
    • Max. Data rate: 10:2 Gbps (3:4 Gbps per lane)
    • Max clock pixel: 340 MHz
    • Compliance: HDMI (3D, deep color) compatible with HDCP 2.2
    • Max. Resolutions: 4096x2160/3840x2160 at 60 Hz (4:2:0); 4096x2160/3840x2160 at 30Hz (4:4:4)
    • Maximum distance: 1 x SFP module (*Note), VE883K1 : up to 300 m (MM, OM3, black), VE883K2 : up to 10 km (SM, blue)
  • Control VE883R-VE883T
    • USB Channel: 1 x USB Type A Female (White)
    • RS-232 channel: 1 x terminal block, 3 poles (green)
    • Infrared Channel: 1 x Mini Female Stereo Jack (Black); 30~56KHz full range transmission
    • Ethernet channel: 1 female RJ45 connector.

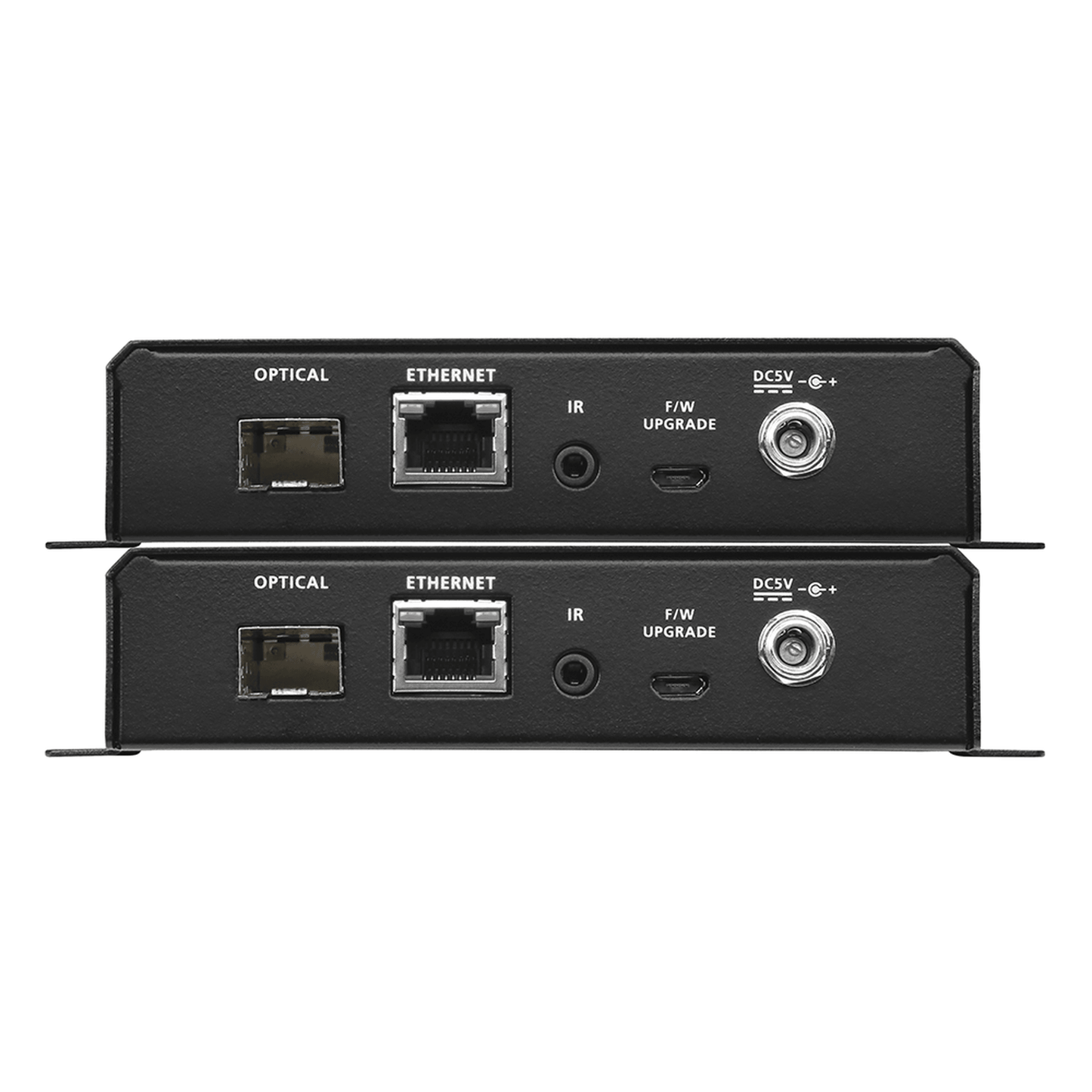

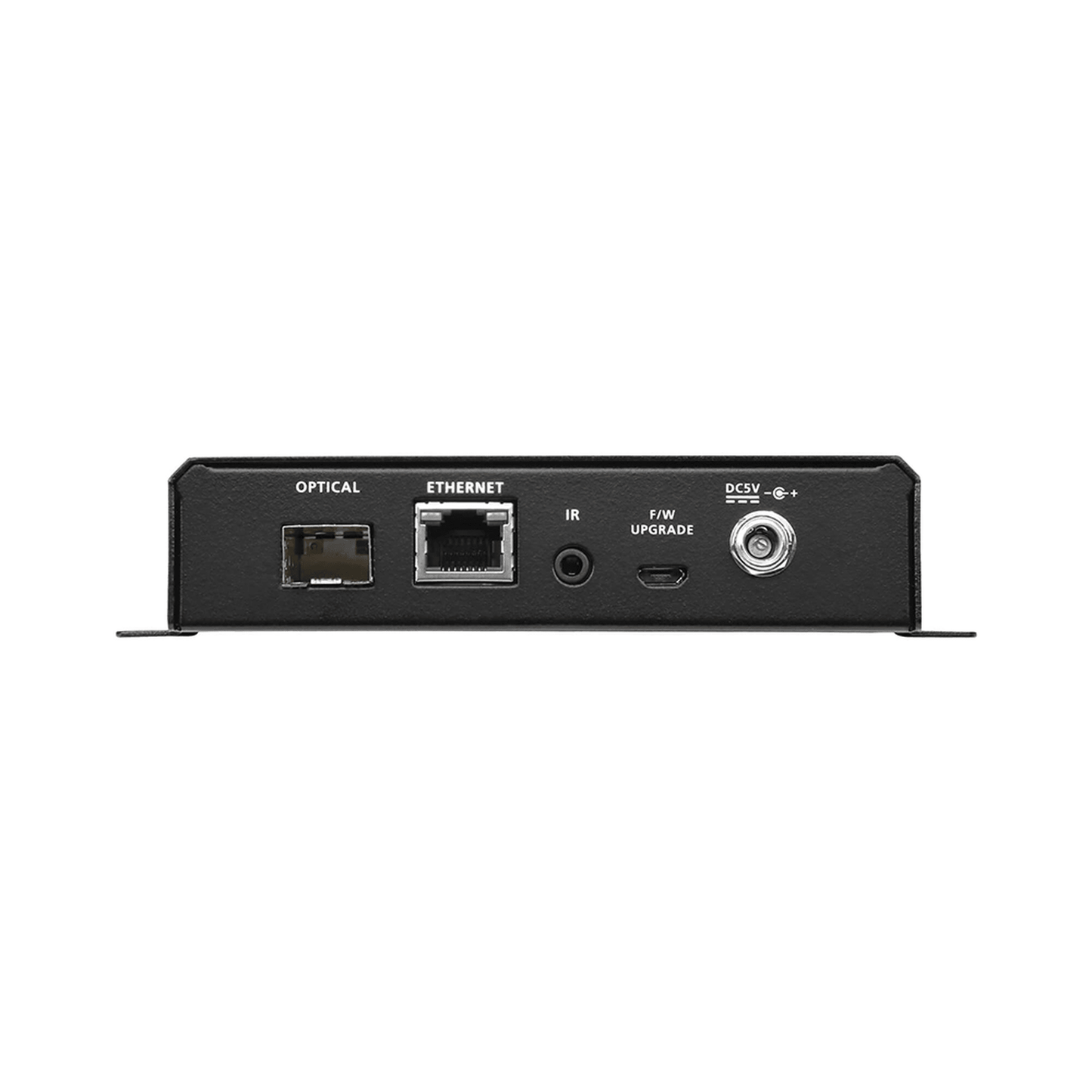

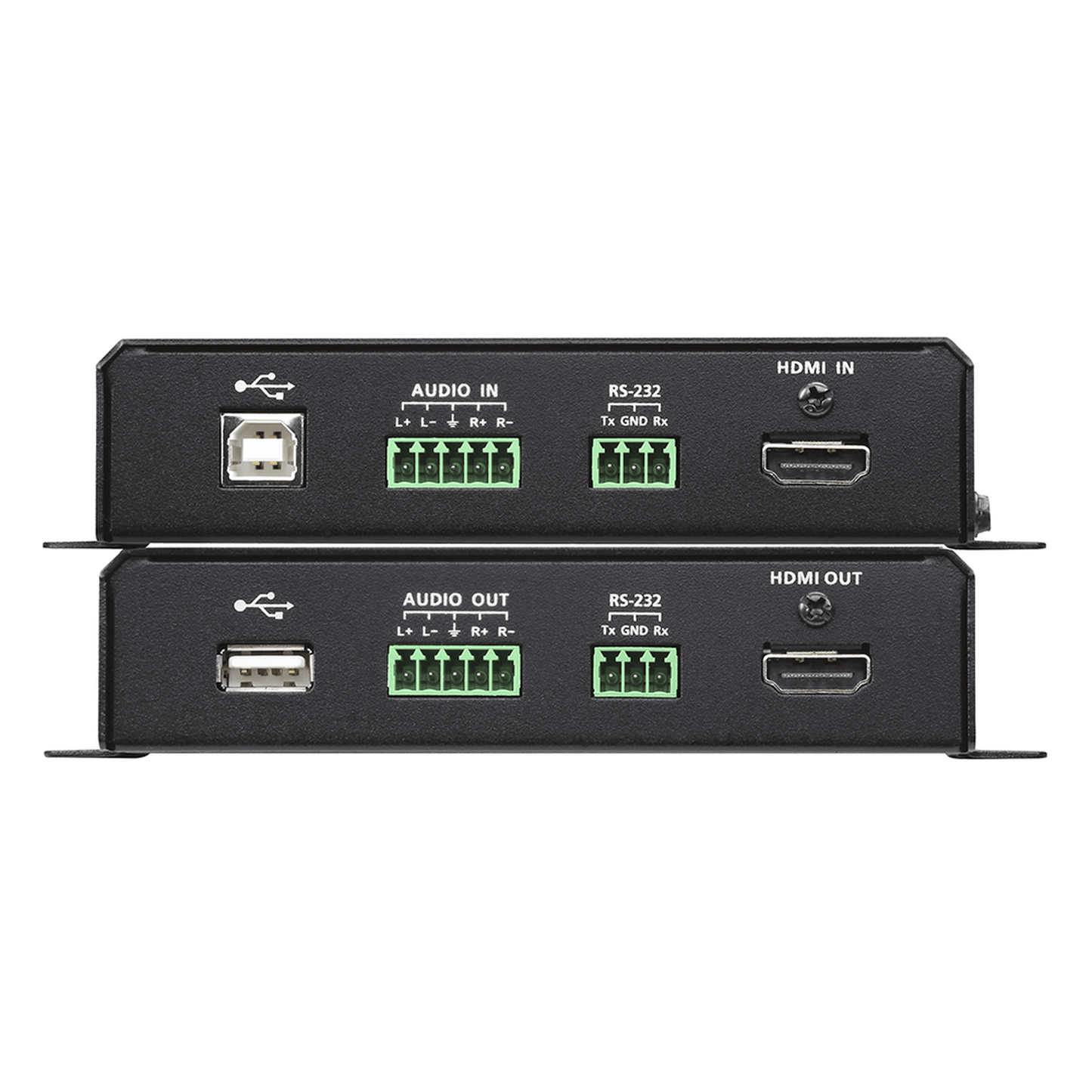

  • Connectors VE883R-VE883T
    • Unit by unit: 1 x Bidirectional SFP (LC)
    • Firmware update: 1 x Micro USB (Type B) Female (Black)
    • Power VE803R-VE803T: 1 x Locking DC Connector
  • Fiber Optic VE883R-VE883T
    • Data rate: 10:3 Gbps
    • Wavelength: VE883K1: 850 nm, VE883K2: 1310nm
    • Fiber type: VE883K1 : multimode (MM) OM3, duplex LC type: VE883K2 : singlemode (SM), duplex LC type
  • Energy consumption
    • VE883R: DC 5V: 6@77W: 42BTU
    • VE883T: DC 5 V: 7:05 W: 33 BTU
  • Environmental conditions VE883R-VE883T
    • Operating temperature 0-40℃
    • Storage temperature -20 - 60°C
    • Humidity RH 0 - 80%, no condensation
  • Physical Properties VE883R-VE883T
    • Metal Housing
    • Weight: 0:64 kg (1:41 lbs)
    • Dimensions (L x W x H) with support: 16,94x14,69x3,00cm
    • Dimensions (L x W x H) without support: 16:60x12:49x2:90cm

1x VE883T 4K HDMI optical transmitter: 1x VE883R 4K HDMI optical receiver: 2x power adapters, 2x terminal blocks with 3 poles, 2x terminal blocks with 5 poles, 1x infrared receiver, 1x infrared emitter, 1x USB cable, 2x HDMI LockPro, 2x SFP modules, 1x instruction manual
