4K HDR HDMI Extender Over 100M HDBaseT TX/RX with Ethernet, Control, PoE and Audio Return

  • 88bf64db61464126cdcbccb494ac80a7
1 1
  • 4K/UHD capability at 60Hz with 4:4:4 chroma sampling, plus support for HDR formats
  • HDCP 2.2 compliant
  • HDBaseTTM Extender Kit for HDMI®, Ethernet, Power and Control up to 330 feet (100 meters)
  • Receiver powered by transmitter via PoE (Power over Ethernet)
  • Extends RS-232, IR, Ethernet and CEC control signals over HDBaseT
  • Delivers return audio from a TV via a dedicated HDBaseT audio return path
  • HDBaseT link status test

Out of stock

Modelo: AT-HDR-EX-100CEA-KIT

Proveedor: ATLONA

Código SAT: 46171611

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

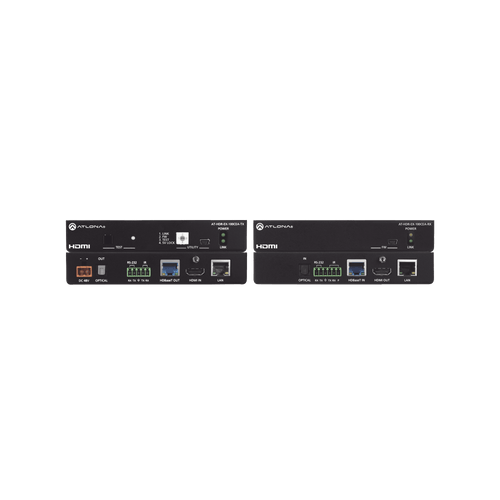

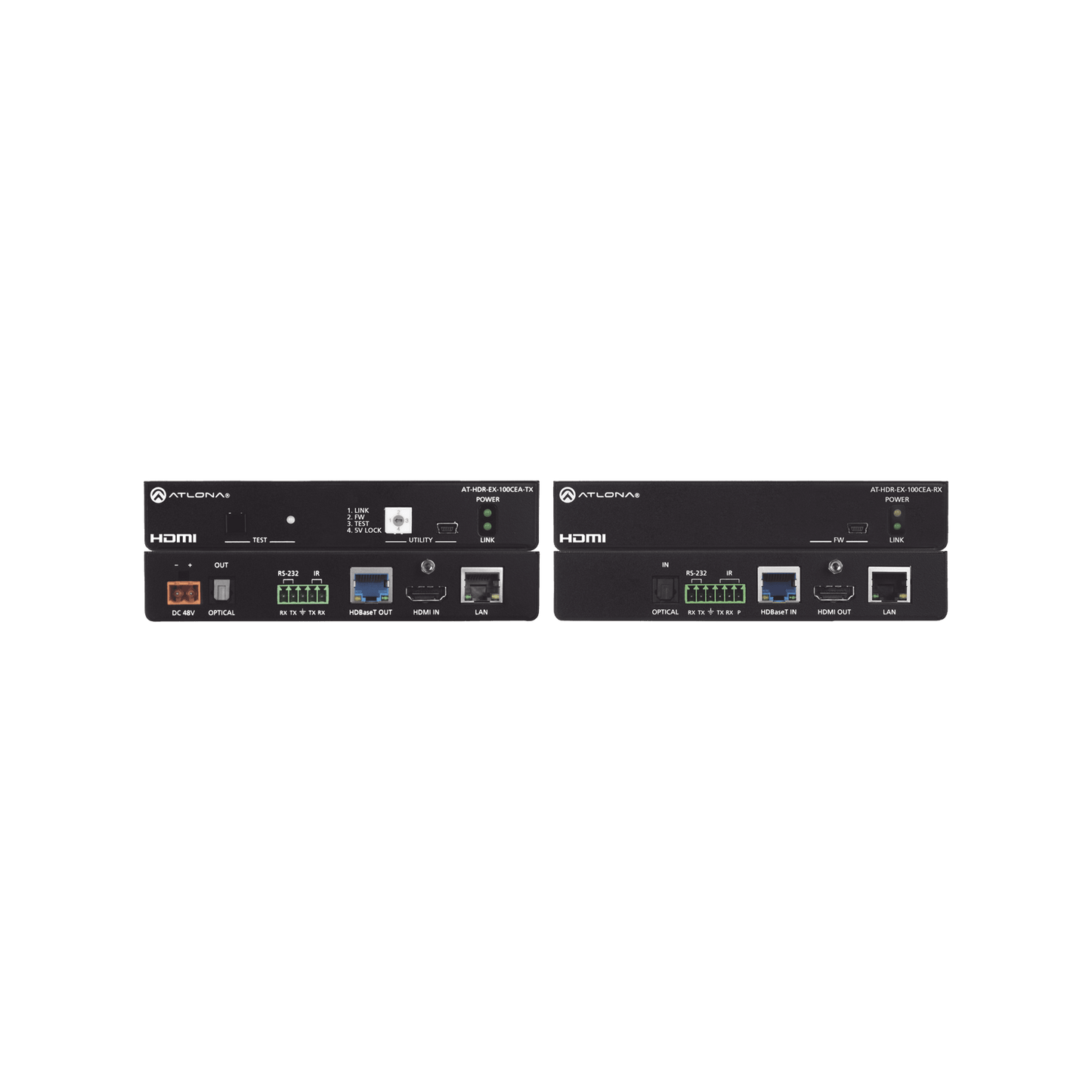

The Atlona AT-HDR-EX-100CEA-KIT is an HDBaseT transmitter/receiver kit for high dynamic range (HDR) formats. The kit is HDCP 2.2 compliant and supports 4K/UHD video at 60 Hz with 4:4:4 color sampling, as well as HDMI Data speeds up to 18 Gbps. The HDR-EX-100CEA-KIT provides HDMI streaming, Ethernet pass-through and bi-directional IR and RS-232 control signals up to 330 feet (100 meters) over CAT6a/7 cable. This extender kit includes lossless, latency-free visual compression to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT. For greater integration convenience, The transmitter remotely powers the receiver via Power over Ethernet (PoE). The HDR-EX-100CEA-KIT can stream digital audio from a TV to an AV receiver, via a dedicated audio path. The HDR-EX-100CEA-KIT is ideal for residential and commercial applications with the latest and emerging

4K/UHD and HDR sources and displays. It supports all video resolutions, audio formats and color space. Formats supported in the HDMI 2.0b specification, plus the ability to pass metadata for HDR content. The HDR-EX 100CEA-KIT includes Atlona's award-winning 10-year limited product warranty and customer services. ​​so integrators can specify, Buy and install with confidence.

HDBaseT extender for 4K and HDR

Supports HDR and 4K/60 4:4:4 video content.

HDR and 4K/60 4:4:4 video content requires data rates greater than 10 Gbps, a major challenge to extending signals over HDBaseT. The HDR-EX-100CEA-KIT provides the answer with visually lossless video compression technology that applies extremely light compression without latency. This enables the transmission of HDR and 4K/60 4:4:4 over a single category cable, while ensuring impeccable and very high image quality.

An innovative yet practical solution for 4K HDR over HDBaseT.

HDR and 4K/60 4:4:4 video content requires data rates greater than 10 Gbps, a major challenge to extending signals over HDBaseT. The HDR-EX-100CEA-KIT provides the answer with visually lossless video compression technology that applies extremely light compression without latency. This enables the transmission of HDR and 4K/60 4:4:4 over a single category cable, while ensuring impeccable and very high image quality.
