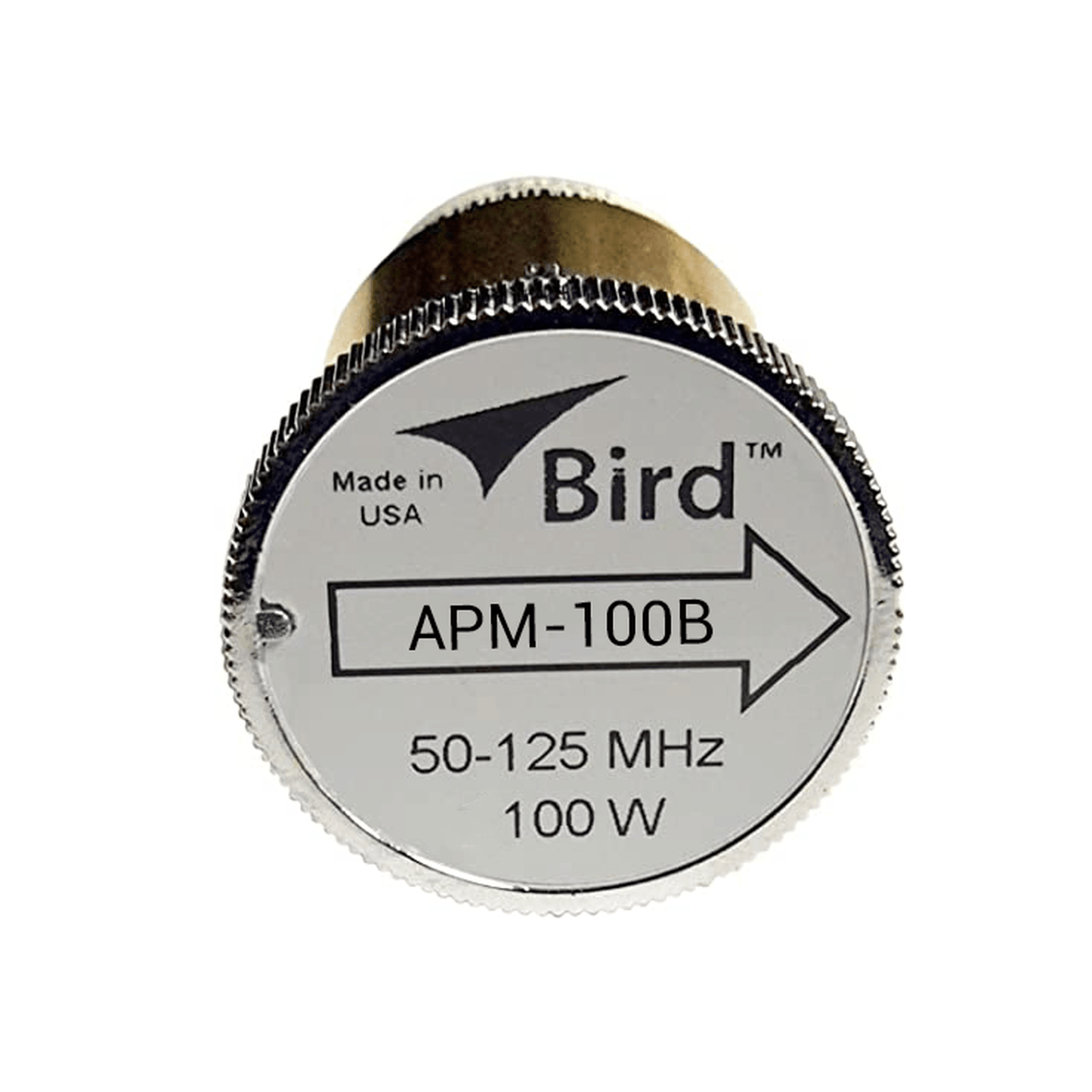

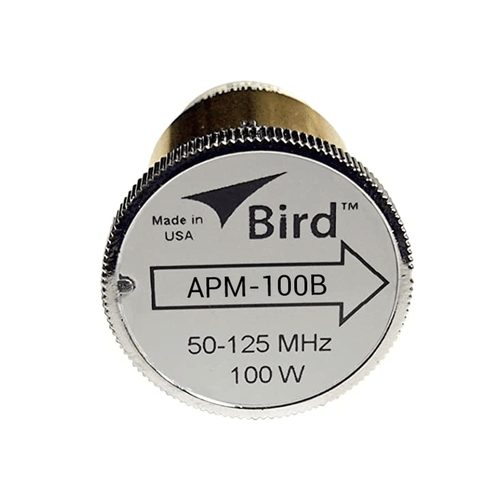

Element for Wattmeter APM-16, 50-125 MHz, 100 Watt.

  • 9fd369ddc20daf8d55eec3cf0c52be19
1 1

Out of stock

Modelo: APM-100B

Proveedor: BIRD TECHNOLOGIES

Código SAT: 41113700

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details


Element for Wattmeter APM-16, 50-125 MHz, 100 Watt.

APM elements are specially designed for use with the APM-16 Wattmeter, adjusted according to Bird&comma's meticulous calibration procedures; backed by a long history of Mean Deviation Values ​​to ensure credibility in the published specifications of current instruments, as well as compatibility in the field with equipment purchased and used with long-standing confidence during all the years since its introduction.

Model number Frequency Range (MHz) Power Model number Frequency Range (MHz) Power
APM-5H 2-30 5W APM-2.5D 200-500 2.5W
APM-10H 2-30 10W APM-5D 200-500 5W
APM-100H 2-30 100W APM-10D 200-500 10W
APM-250H 2-30 250W APM-25D 200-500 25W
APM-500H 2-30 500W APM-50D 200-500 50W
APM-1000H 2-30 1000W APM-100D 200-500 100W
APM-5A 25-60 5W APM-250D 200-500 250W
APM-10A 25-60 10W APM-500D 200-500 500W
APM-100A 25-60 100W APM-1E-400 400-800 1W
APM-250A 25-60 250W APM-2.5E-400 400-800 2.5W
APM-1B 50-125 1W APM-5E-400 400-800 5W
APM-2.5B 50-125 2.5W APM-10E-400 400-800 10W
APM-5B 50-125 5W APM-25E-400 400-800 25W
APM-10B 50-125 10W APM-50E-400 400-800 50W
APM-25B 50-125 25W APM-100E-400 400-800 100W
APM-100B 50-125 100W APM-250E-400 400-800 250W
APM-250B 50-125 250W APM-500E-400 400-800 500W
APM-500B 50-125 500W APM-1000E-400 400-800 1000W
APM-1000B 50-125 1000W APM-1E-800 800-960 1W
APM-1C 100-250 1W APM-2.5E-800 800-960 2.5W
APM-5C 100-250 5W APM-5E-800 800-960 5W
APM-10C 100-250 10W APM-10E-800 800-960 10W
APM-25C 100-250 25W APM-25E-800 800-960 25W
APM-50C 100-250 50W APM-50E-800 800-960 50W
APM-100C 100-250 100W APM-100E-800 800-960 100W
APM-250C 100-250 250W APM-250E-800 800-960 250W
APM-500C 100-250 500W APM-500E-800 800-960 500W
APM-1000C 100-250 1000W APM-1000E-800 800-960 1000W
