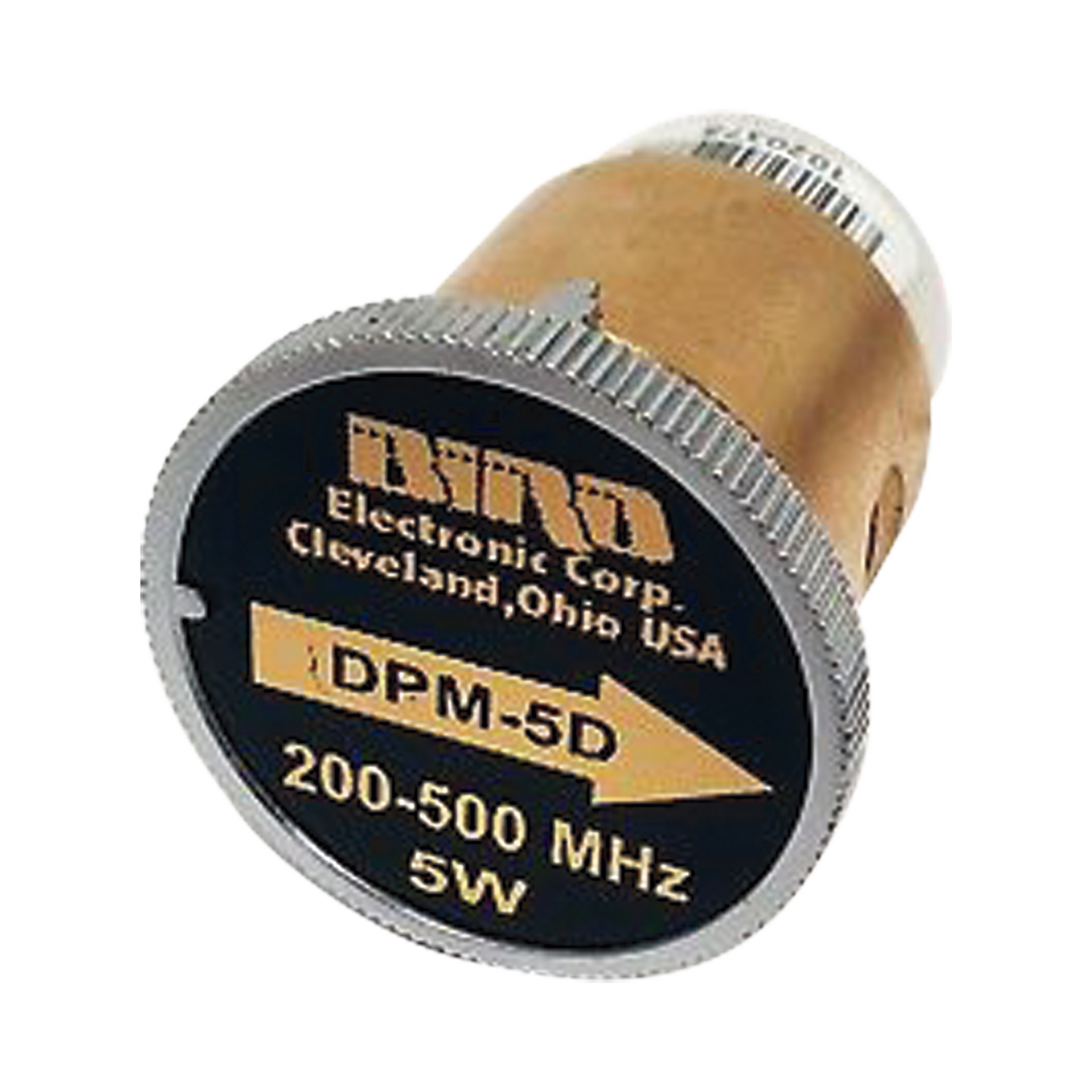

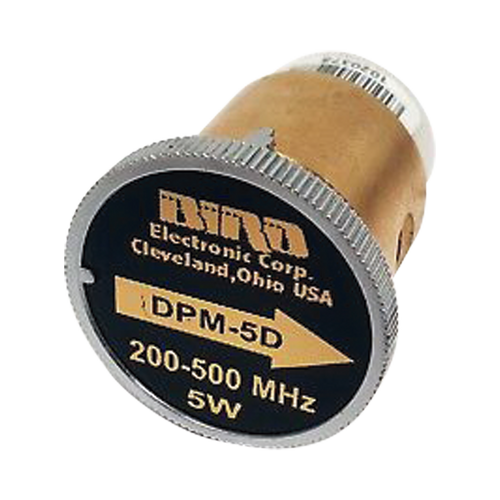

200-500 MHz DPM element in Sensor 5010 / 5014, with Output power of 125 mW-5 W.

  • 393191778146a26d6d68a0a782ddabe4
1 1

Low stock: 1 left

Modelo: DPM-5D

Proveedor: BIRD TECHNOLOGIES

Código SAT: 41113700

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

2 00-500 MHz DPM element in Sensor 5014, with output power of 125 mW-5 W.
  • DPM elements are designed for use with 5010 / 5014 series digital power sensors.
  • Using the familiar design of shape elements, The DPM Element can accurately measure the actual average power.
  • All assembly elements are calibrated according to the meticulous BIRD calibration procedures. backed by a long history of mean deviation values ​​to ensure certification to the stipulated specifications of current instruments, as well as interchangeability in the field with equipment purchased from the beginning.

model Freq. Range (MHz) FWD Power RFL Power FWD Element RFL Element
DPM-50H 2-30 1.25W to 50W 125mW to 5W DPM-50H DPM-5H
DPM-500H 2-30 12.5W to 500W 1.25W to 50W DPM-500H DPM-50H
DPM-50A 25-60 1.25W to 50W 125mW to 5W DPM-50A DPM-5A
DPM-500A 25-60 12.5W to 500W 1.25W to 50W DPM-500A DPM-50A
DPM50B 50-125 1.25W to 50W 125mW to 5W DPM-50B DPM-5B
DPM-500B 50-125 12.5W to 500W 1.25W to 50W DPM-500B DPM-50B
DPM-1000B 50-125 25W to 1.0kW 2.5W to 100W DPM-1000B DPM-100B
DPM-50C 100-250 1.25W to 50W 125mW to 5W DPM-50C DPM-5C
DPM-500C 100-250 12.5W to 500W 1.25W to 50W DPM-500C DPM-50C
DPM-2500C 100-250 62.5W to 2.5kW 6.25W to 250W DPM-2500C DPM-250C
DPM-5D 200-500 125mW to 5W 12.5mW to 500mW DPM-5D DPM-.5D
DPM-50D 200-500 1.25W to 50W 125mW to 5W DPM-50D DPM-5D
DPM-500D 200-500 12.5W to 500W 1.25W to 50W DPM-500D DPM-50D
DPM-5E 400-960 125mW to 5W 12.5mW to 500mW DPM-5E DPM-.5E
DPM-50E 400-960 1.25W to 50W 125mW to 5W DPM-50E DPM-5E
DPM-100E 400-960 2.5W to 100W 250mW to 10W DPM-100E DPM-10E
DPM-500E 400-960 12.5W to 500W 1.25W to 50W DPM-500E DPM-50E
DPM-1000E 400-960 25W to 1.0kW 2.5W to 100W DPM-1000E DPM-100E
DPM-5J 950-1260 125mW to 5W 12.5mW to 500mW DPM-5J DPM-.5J
DPM-50J 950-1260 1.25W to 50W 125mW to 5W DPM-50J DPM-5J
DPM-5K 1100-1800 125mW to 5W 12.5mW to 500mW DPM-5K DPM-.5K
DPM-50K 1100-1800 1.25W to 50W 125mW to 5W DPM-50K DPM-5K
DPM-5L1 1700-1990 125mW to 5W 12.5mW to 500mW DPM-5L1 DPM-.5L1
DPM-50L1 1700-1990 1.25W to 50W 125mW to 5W DPM-50L1 DPM-5L1
DPM-500L1 1700-1990 12.5W to 500W 1.25W to 50W DPM-500L1 DPM-50L1
DPM-5L2 1990-2200 125mW to 5W 12.5mW to 500mW DPM-5L2 DPM-.5L2
DPM-50L2 1990-2200 1.25W to 50W 125mW to 5W DPM-50L2 DPM-5L2
DPM-5M 2200-2300 125mW to 5W 12.5mW to 500mW DPM-5M DPM-.5M
DPM-25M 2200-2300 625mW to 25W 62.5mW to 2.5W DPM-25M DPM-2.5M
DPM-5N 2300-2500 125mW to 5W 12.5mW to 500mW DPM-5N DPM-.5N
DPM-5R 2500-2700 125mW to 5W 12.5mW to 500mW DPM-5R DPM-.5R

*Ask for delivery time.
