Grounding Electrode with maximum capacity of 700A

  • c03cbead5281b257bdaca02b4be23033
  • c03cbead5281b257bdaca02b4be23033
1 2

Out of stock

Modelo: TG-700

Proveedor: TOTAL GROUND

Código SAT: 39121436

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

TOTAL GROUND brand grounding electrodes must be installed in conjunction with our ground improving compound to ensure a resistance of less than 2 Ohm (in most cases) and a corrective maintenance-free installation for up to 20 years.

Magnetoactive electrodes include a compass and level to ensure professional integration.

CHARACTERISTICS

Electrode

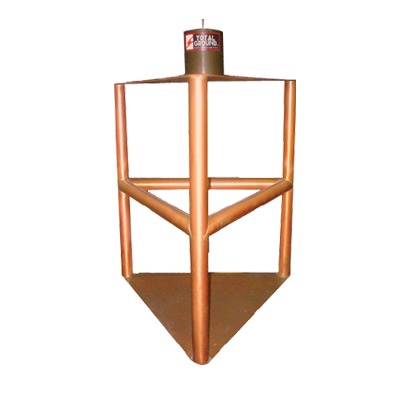

TOTAL GROUND brand grounding electrode model TG-700. Made of highly conductive electrolytic copper, specially treated to retard the effects of corrosion.

Characteristics

  • Designed in the shape of a tubular delta.
  • Electrolytic copper welding.
  • Dimensions 67 x 60 cm.

LCR filter

Includes LCR coil (inductive, capacitive and resistive) mounted on structure.

DESCRIPTION:

  • Unit of Measurement: Individual.
  • Description: Magnetoactive Electrode.
  • Capacity: 700 Amperes.


RECOMMENDED APPS:

The TG-700 electrode is used for grounding:

  • Industrial plants.
  • Transformers. ( See Selection Guide ).
  • Lightning rod systems.

Includes the following components:

Amount Model Description
1 TG700 Electrode.
1 -- Compass and level.
1 -- LCR filter.

Complementary accessories (Not included):

Amount Model Description
1 ANTIOX Protective spray for connectors.
5 TGCR14 Bronze Connector.
2 TGAB21 Rod Connector.
1 S1010 Registration for electrode.
1 SLY343BLK THW-SL sheathed copper cable 1/0 AWG gauge.
1 TGBUSG10 7-7/8" x 2" x 1/4" tie bar with 1000A capacity insulators.
1 TGBUE10 Connection bar and thread distribution.
4 H20HM 11 kg bag of soil improver.
1 TGC02 Coupler.
