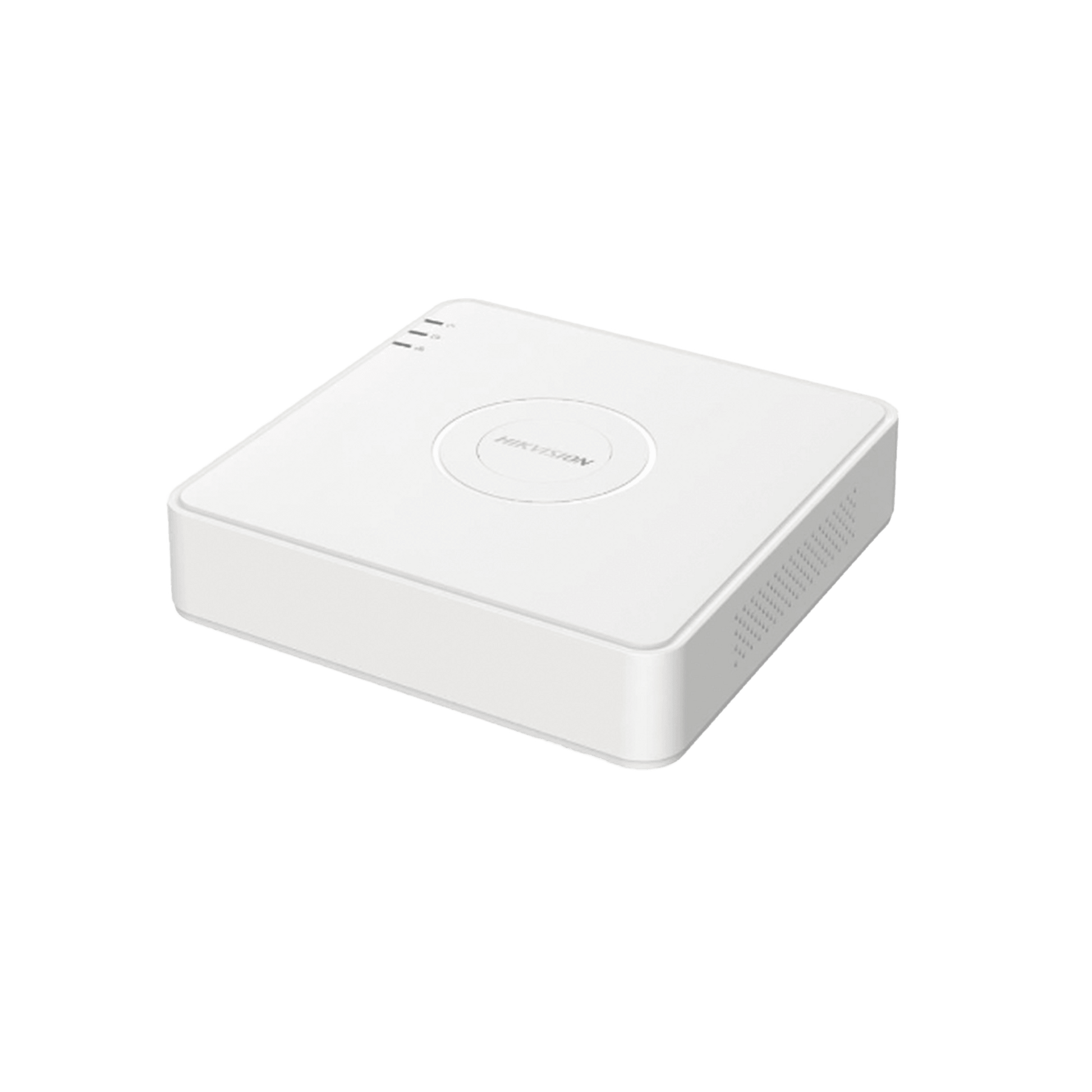

DVR 4 Channels TurboHD + 1 IP Channel / 2 Megapixel (1080p) Lite / Acusense Lite (Avoid False Alarms) / Audio by Coaxitron / 1 Hard Drive Bay / H.265+ / Full HD Video Output

• Technology support: HD-TVI / HD-CVI / AHD / Analogue (CVBS) / IP.
• iVMS-4200 client software.
• Compatible with Hik-Connect P2P ( https://appstore.hikvision.com/ ).
• Supports Hik-connect Domain/DynDNS/NO-IP service.
• Supports 4 TURBOHD/analog channels + 1 IP channel = 5 channels in total.
• NOTE: Allows you to turn off analog channels to add IP channels.
• It has AcuSense to filter humans and vehicles by motion detection (It does not have video analytics such as line crossings / area entry)

• Power: 12 Vdc / 1.5 A.
• Consumption without hard drive: 16 W.
• Operating temperature: -10 ºC up to 55 ºC
• Dimensions: 200 × 200 × 45mm (W × D × H)
• Weight: 0.8 Kg without hard drive.
• Warranty: 2 years.

Compression and resolution:

• H.265+ / H.265 / H.264+ / H.264.
• HD-TVI: 1080P Lite @ 30 IPS.
• HD-CVI: 1080P Lite @ 30 IPS.
• CVBS: WD1 @ 30 IPS.
• AHD: 1080P Lite @ 30 IPS.
• IP: 2 Megapixel (1080p).

• Video output:
  • HDMI: 1920×1080, 1280×1024, 1280×720, 1024×768.
  • VGA: 1920×1080, 1280×1024, 1280×720, 1024×768.
• Audio input: 1 (RCA, 2.0 Vp-p, 1KΩ).
• 4 audio inputs per coaxitron.
• Audio output: 1 (RCA, 2.0 Vp-p, 1KΩ).
• Alarm input: N/A
• Alarm output: N/A
• Network interface: 1 ports (RJ-45 10/100 Mbps).
• HDD capacity: 1 @ 4 TB.

Considerations:

• To use 2-way audio, it is recommended to place a microphone on the audio input, A camera with coaxitron audio is not recommended for 2-way audio.
• To connect the IP channels you need to use a switch / PoE switch (not included)
• Coaxitron audio is received only by the TVI signal.
• Does not support channel zero.
• It is not compatible with remote control.
• Note: Channel zero is not supported.
• It is not compatible with remote control.
