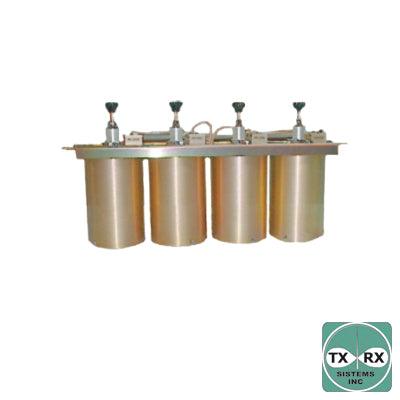

Band Pass-Band Rejection Duplexer, 764-869 / 806-869 MHz, 4Cav.(4\" Dia.) 45 MHz, N Females.

  • 4f9e1e6a55945751ea43cdf22ce5b19d
1 1

Out of stock

Modelo: 28-83E-01A

Proveedor: TX RX SYSTEMS INC.

Código SAT: 32121800

Tax included.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details


Band Pass-Band Rejection Duplexer, 764-869/806-869 MHz​ 150 Watt.

  • Vari-Notch technology to optimize insulation specifications.
  • Designed for mounting in a 19" rack.
  • Band: 764-806/806-869 MHz.
  • Separation: 30/45 MHz.
  • Cavities: 4 (4" Diameter).
  • Insertion loss: 0.8 dB.
  • Isolation: 90 dB.
  • Power: 125W
  • Connectors: N Female.
  • Temperature range: -40°C to +80ºC.

*Ask for delivery time.
