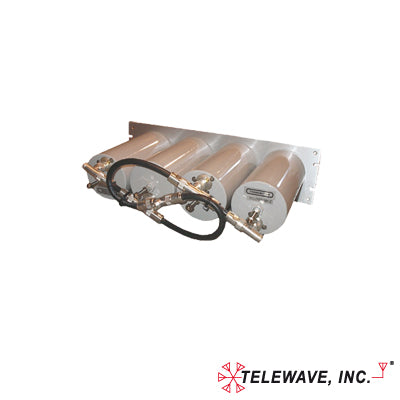

Band Pass-Band Rejection Duplexer, 470-512 MHz, 4 Cavities (4\" Dia.) 3 MHz, 250 Watt, N Hem.

  • de36772c787471b1802c80b84f741ae2
  • de36772c787471b1802c80b84f741ae2
1 2

Out of stock

Modelo: TPRD-4744

Proveedor: TELEWAVE, INC

Código SAT: 32121800

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details


Band Pass/Band Rejection Duplexer, 470-512 MHz, 250 Watt ​.

  • Frequency Range: 470-512 MHz.
  • Cavities: 4 (4" diameter).
  • TX-RX Separation (Min.): 3 MHz.
  • Insertion loss: 1.0 dB.
  • TX-Rx isolation: 90 dB (@ 5 MHz.
  • VSWR (max.): 1.5:1
  • Power: 250W.
  • Dimensions (Height x Width x Depth): 133 x 483 x 267 mm.
  • Weight: 4.5 Kg.

*Ask for delivery time.
