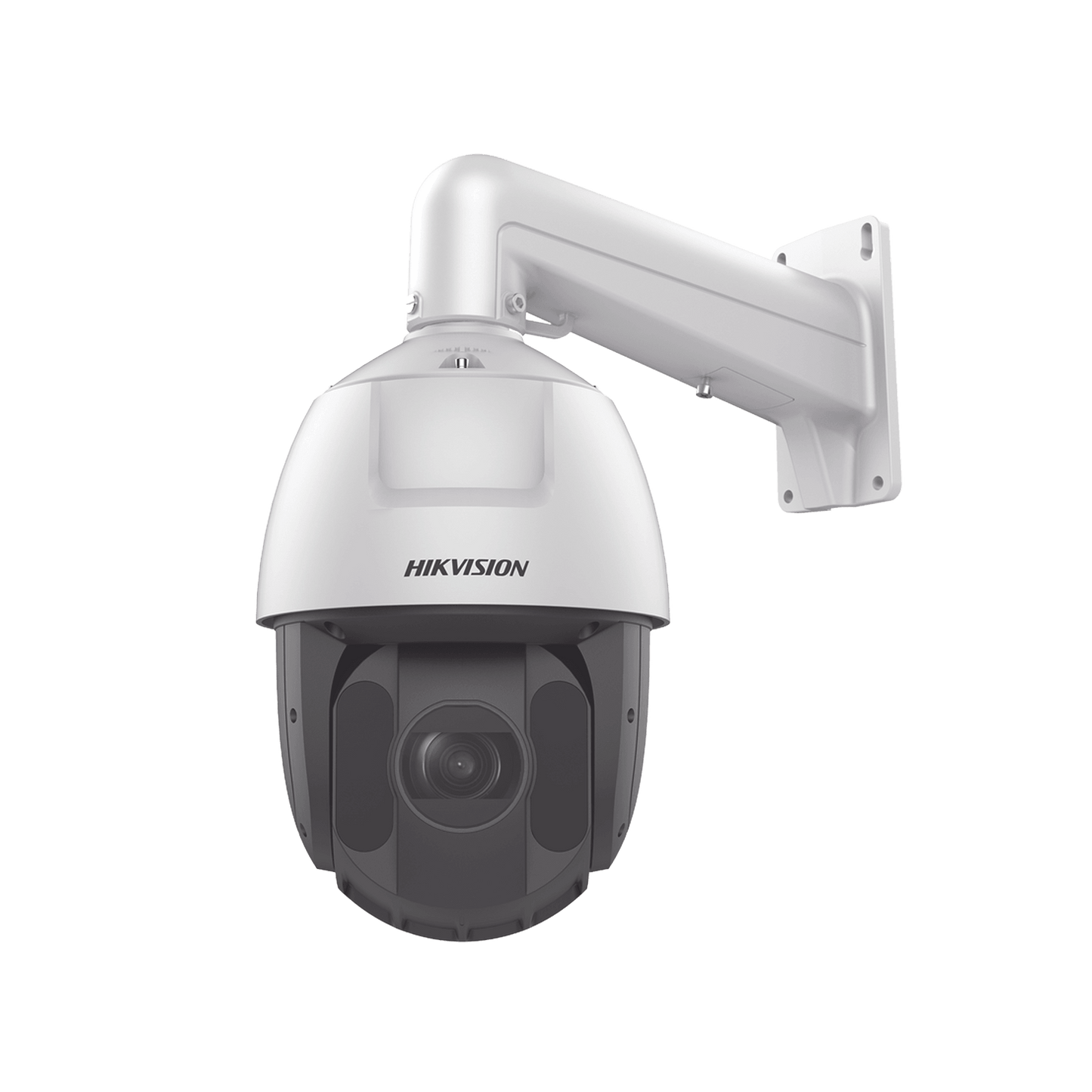

• 1/2.8” progressive scan CMOS sensor (High performance).
• Resolution 4 Megapixel (2560 x 1440).
• Real Day/Night function.
• IR distance: 150 meters with Smart IR
• Minimum color illumination 0.005 Lux (F1.6, AGC ON).
• Focal length from 4.8 to 120 mm (25X optical / 16X digital zoom).
• 1 input and 1 audio output.
• 2 alarm inputs and 1 alarm output.

• Protection against current spikes and atmospheric discharges.
• Operating Temperature: -30 ~ 65ºC.
• PTZ includes wall arm ( DS-1602ZJ ).
• Power: 24 VAC (Source not included) / PoE+.
• Electrical consumption: 30 W (IR on).
• Dimensions: 210 x 344.7 mm.
• Weight: 3.0 Kg.
• 2 Year Guarantee.

Accessories:

• Tube type ceiling mounting: Model: DS-1661ZJ
• Pole mounting, Model: DS-1604ZJ-POLE
• Wall mounting with junction box, model: DS-1604ZJ-BOX-POLE
• Ceiling mounting without extension tube, Model: DS-1663ZJ
• Hook type assembly, Model: DS-1619ZJ
• Parapet assembly on wall, Model: DS-1660ZJ
• Outdoor Wall Mount: Model: DS-1604ZJ-BOX
• Tube type ceiling mounting: Model: DS-1662ZJ
• USB joystick, Model: DS-1005KI
• Corner mounting with junction box, model: DS-1604ZJ-BOX-CORNER
• Outdoor Wall Mount: Model: DS-1604ZJ
• Dome assembly, Model: DS-1681ZJ

• Panning: 360º .
• Tildeo: -15 to 90º .
• 300 Presets, 8 Patrols, 4 Patterns.
• Auto Flip.
• PARK ACTION function (home function).
