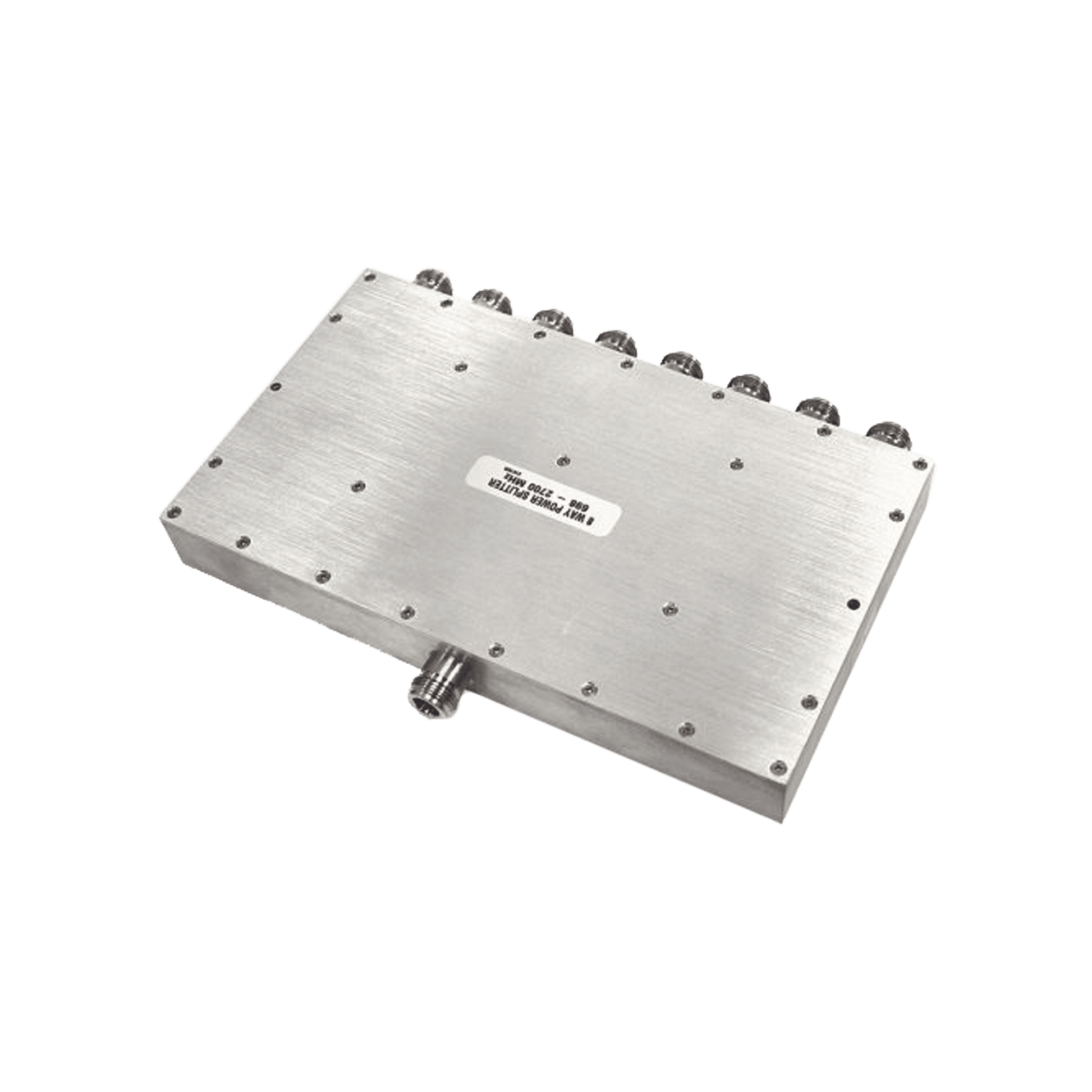

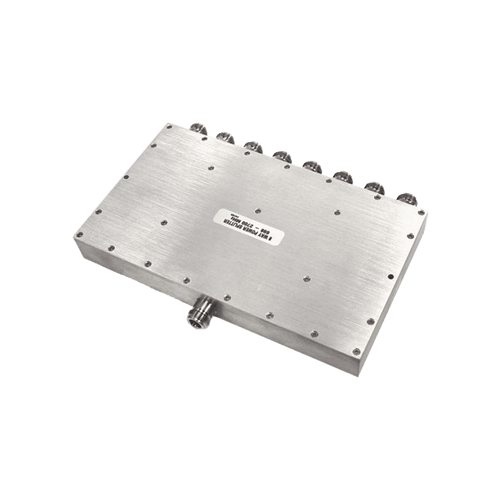

WILKINSON 8 WAY SPLITTER 694-2700MHz 50W N TYPE FOR INDOOR

WILKINSON 8 WAY DIVIDER 694-2700MHZ 50W N TYPE FOR INTERIOR

Description

The Microlab model Dx-75FN series of Wilkinson style power dividers have been designed for 50W power divider applications where output isolation is preferable to the lowest possible loss.

The wide frequency range of this design allows it to be used with multi-band antennas and leaky cable systems.
Lower loss splitters that improve receive sensitivity and preserve transmitted power are available in reactive splitters such as the Dx-95FD and Dx-85FD series.

Characteristics

• Multiband frequency range
• Rated power 50W
• Low RF insertion loss
• 20dB isolation
• RoHS
• Low cost N design
• Complies with EN50155:2007 (Class T3)

Specifications

Bandwidth: 694 – 2700 MHz
Impedance: 50W nominal
Environment: -30 to +70 °C, inside
Housing: Passivated aluminum
Connectors: N (f) triple
