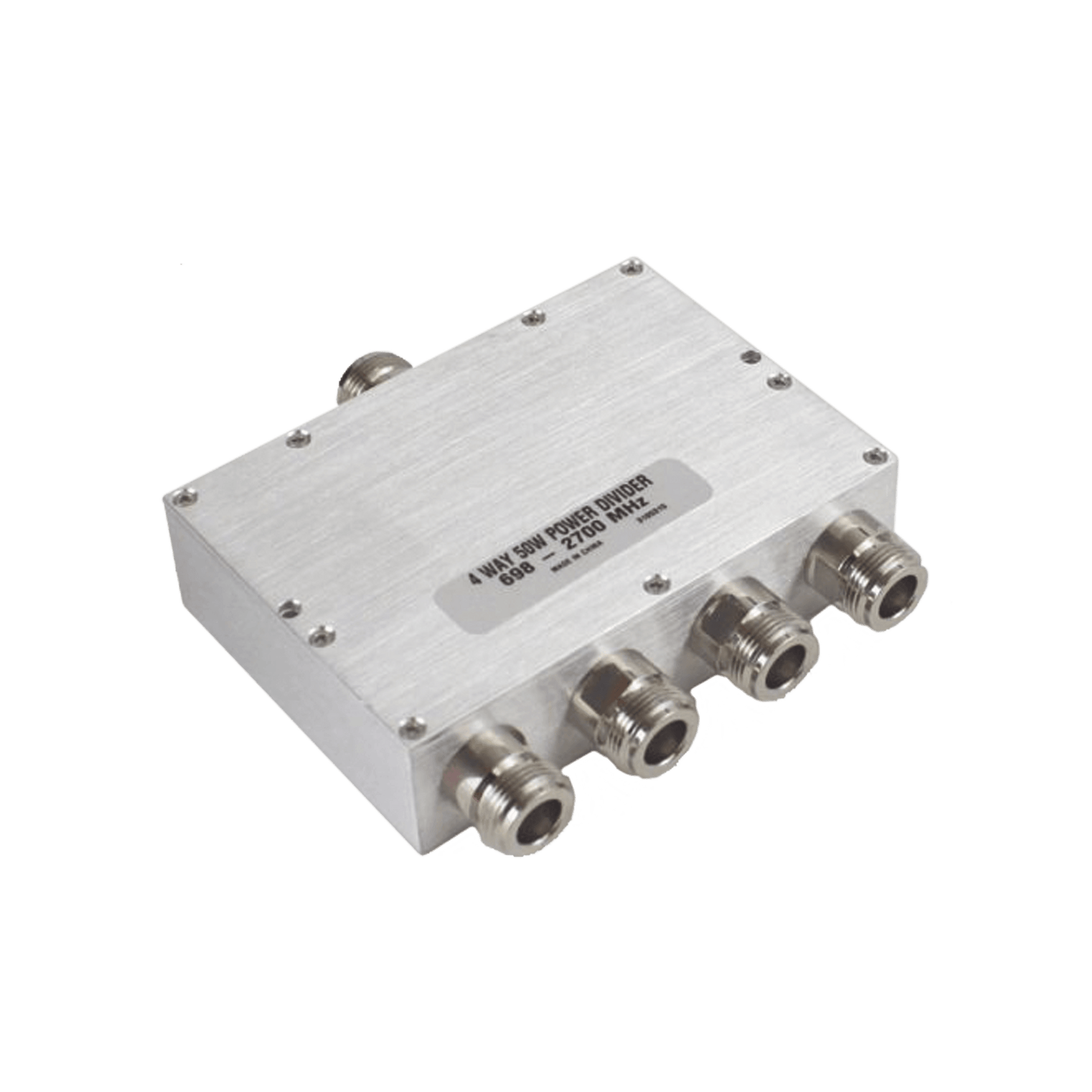

WILKINSON 4-WAY DIVIDER 694-2700MHz 50W N TYPE

WILKINSON 4-WAY DIVIDER 694-2700MHZ 50W N TYPE

Description

The Microlab model Dx-75FN series of Wilkinson style power dividers have been designed for 50W power divider applications where output isolation is preferable to the lowest possible loss. The wide frequency range of this design allows it to be used with multi-band antennas and leaky cable systems.

Lower loss splitters that improve receive sensitivity and preserve transmitted power are available in reactive splitters such as the Dx-55FN and Dx-85FD series.

Characteristics

• Multi-band frequency range from 698 to 2700 MHz
• Rated power 50W
• Low RF insertion loss
• 20dB isolation
• RoHS
• Low cost N design

Specifications
