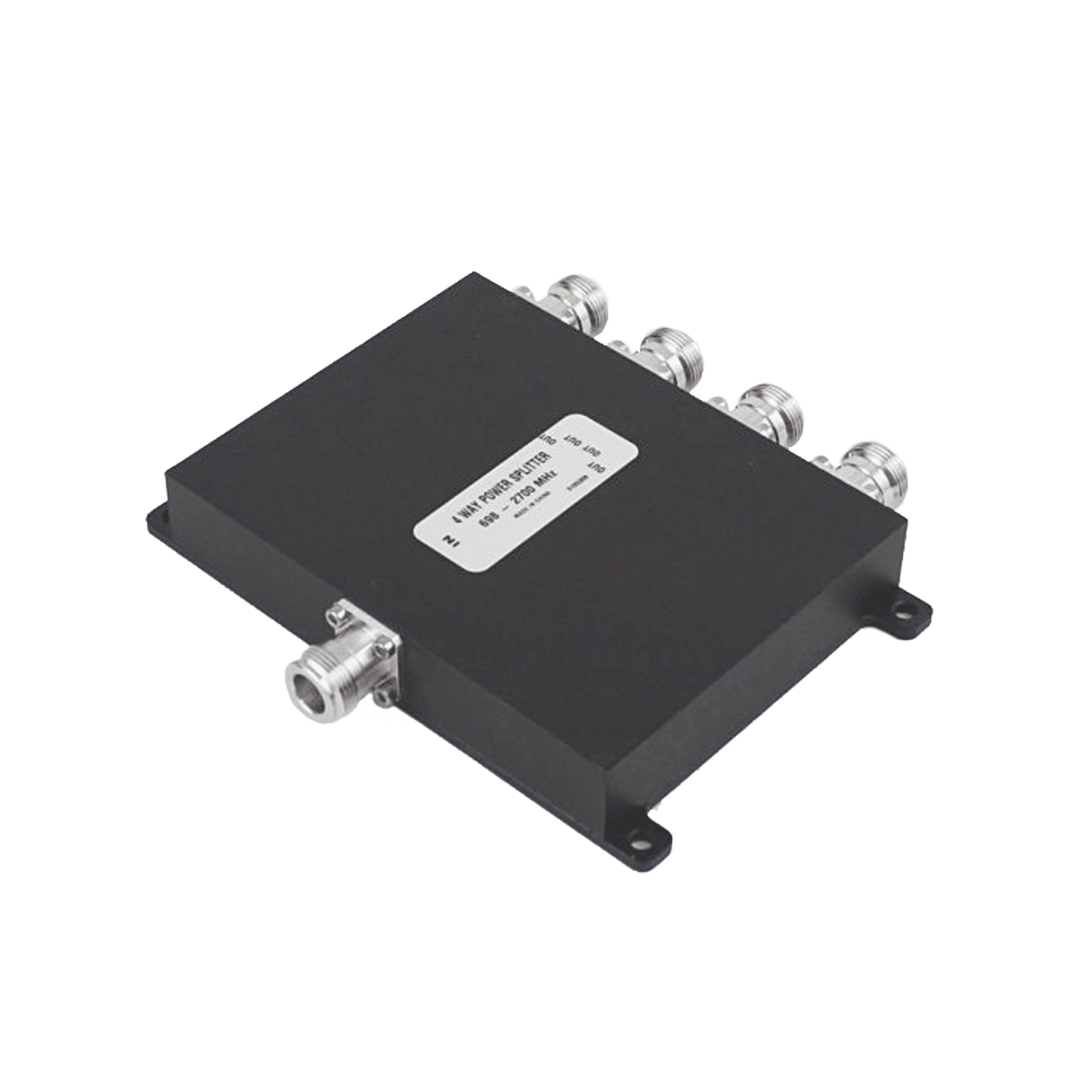

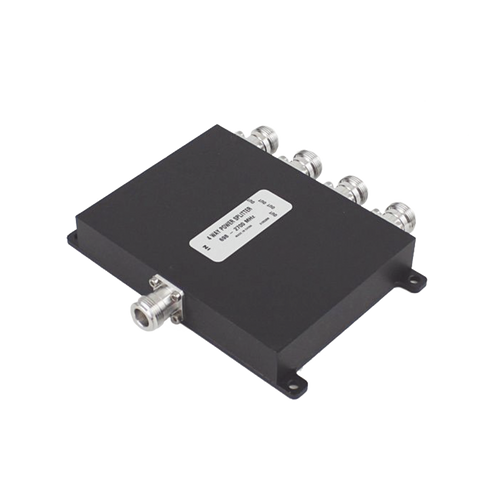

WILKINSON 4-WAY SPLITTER 694-2700MHz 50W -154dBc 4.3-10

  • b0beef00006dd05d69094f5c2d30dd3b
  • 39af2bbb5e6d7bc014f4c5b86af97c60
1 2

Out of stock

Modelo: D4-72FE

Proveedor: MICROLAB

Código SAT: 32101500

Tax included.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

WILKINSON 4-WAY DIVIDER 694-2700MHZ 50W -154DBC 4.3-10

Description

The Microlab model Dx-72 series of Wilkinson style power dividers have been designed for low PIM applications where output isolation is preferable to the lowest possible loss. The wide frequency range of this design allows it to be used with multi-band antennas and leaky cable systems.

Characteristics

  • Multi-band frequency range from 694 to 2700 MHz
  • 50W power rating
  • Low PIM Design
  • Low RF insertion loss
  • 20dB isolation
  • RoHS

Specifications

Frequency: 694 – 2700MHz
In different ways: 4
Split loss: 6dB
Can: 50W
VSWR: <1:30:1
PIM: -154 dBc (2 X +43dBm common port IM3 at 1850 MHz)
Connectors: 4.3-10
Ingress Protection: IP64
Weight:
