4-WAY REACTIVE DIVIDER 575-2700MHZ 300W -161DBC 4.3-10 IP68

Description

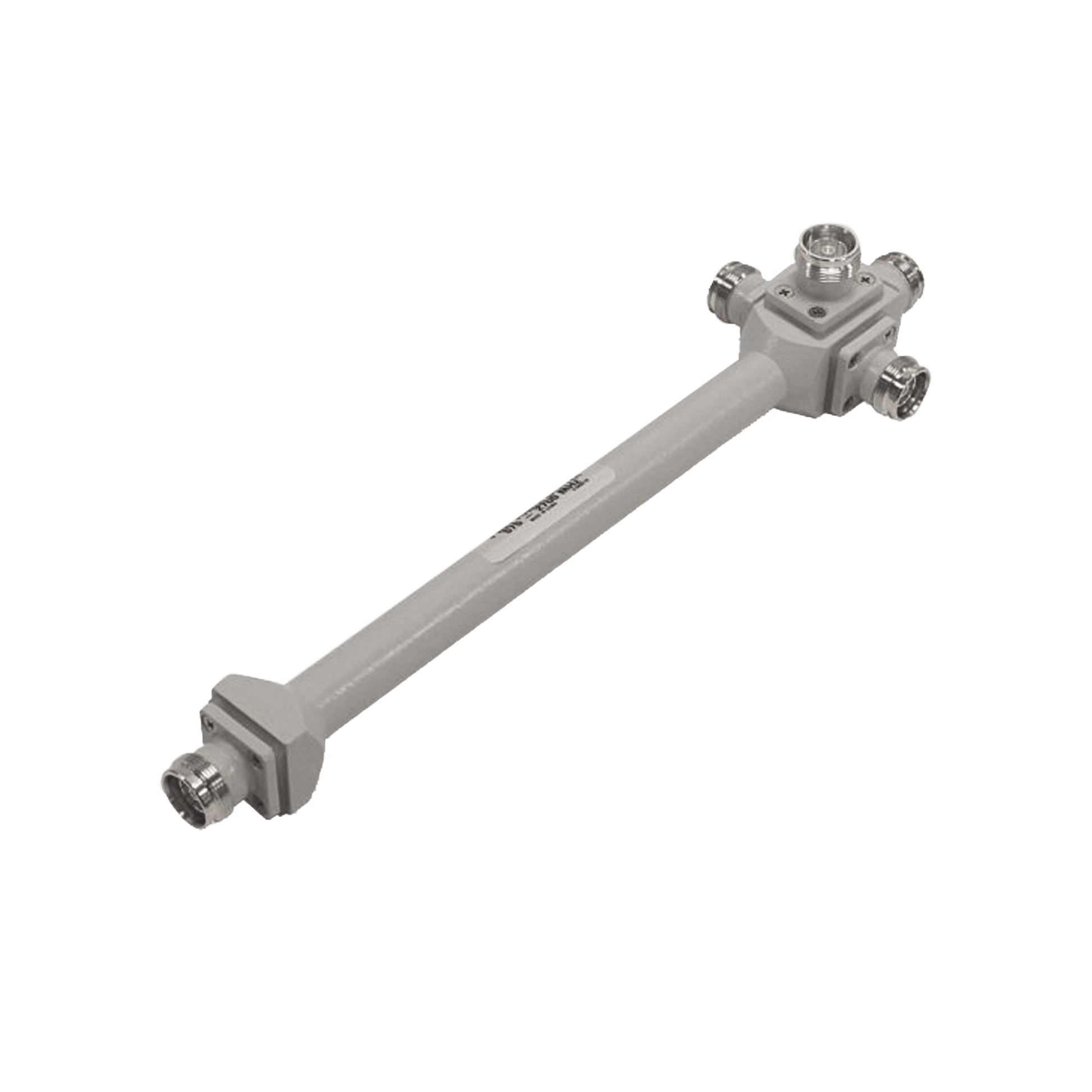

The Microlab D4-84KFE 4-Way Power Splitter has been designed to evenly split high-power cellular signals with minimal reflection and loss. The joints are sealed against moisture with gaskets to meet the IP68 rating. The sturdy, lightweight design can be easily attached to a wall with the supplied bracket and clip.
Standard frequency range allows use with multi-band antennas and leaky cable systems. With few solder joints and an air dielectric, loss is minimized and reliability is improved.
KFE products are designed for harsh exterior applications in corrosive salt spray environments.

Characteristics

  • Standard bandwidth 575-2700 MHz
  • Average power of 300 watts
  • Guaranteed low PIM
  • Salt spray classification
  • Minimum RF Insertion Loss
  • High reliability
  • Robust, RoHS compliant

Specifications

Frequency: 575 – 2700MHz
In different ways: 4
Split loss: 6dB
Force: 300W
VSWR: <1,25:1
PIM: -161 dBc (-118 dBm) min. (2 tones at +43 dBm)
Connectors: 4.3-10(f)
Ingress Protection: IP68
Weight: 1:08 pounds (0:49 kg)
