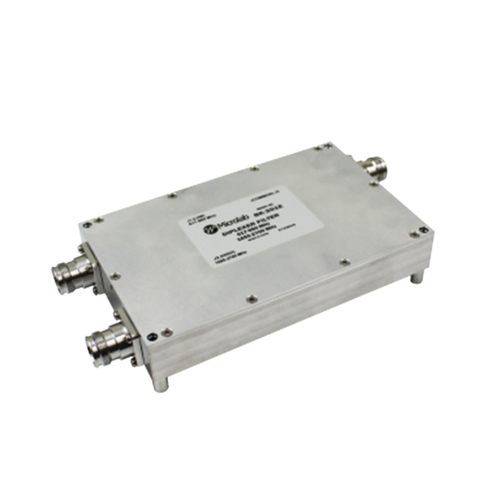

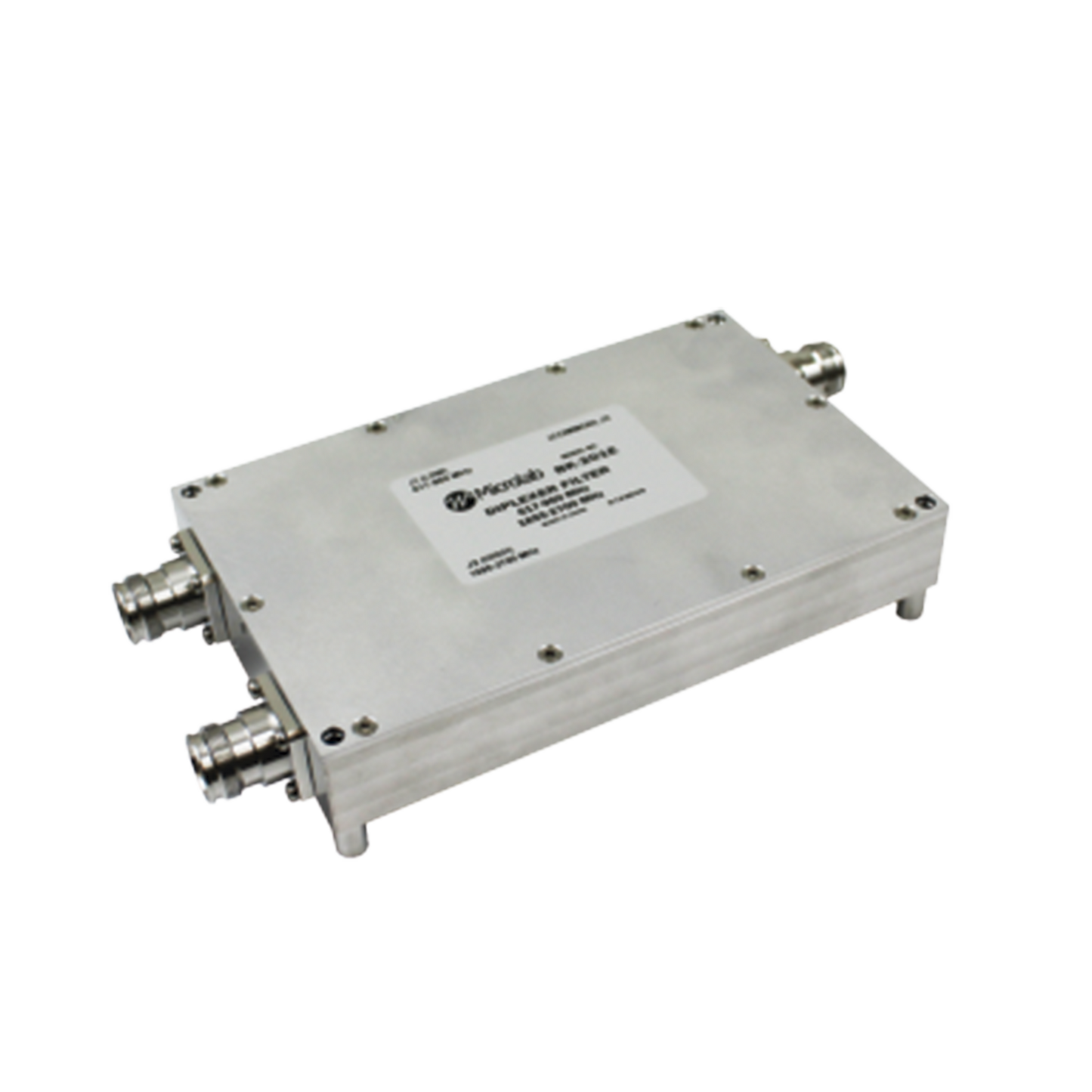

DIPLEXOR 617-960/1695-2700MHz 250W -161dBc 4.3-10 IP67.

  • 8fac6f16d1cf3f0b0930d19f473ba5bd
  • 8fac6f16d1cf3f0b0930d19f473ba5bd
1 2

Out of stock

Modelo: BK-201E

Proveedor: MICROLAB

Código SAT: 32101500

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

DIPLEXOR 617-960/1695-2700MHz 250W -161dBc 4.3-10 IP67.

Description

The Microlab Model BK-201 series is a diplexer that allows signals to be combined and separated in the wireless bands from 617 to 960 MHz and from 1695 to 2700. To minimize the interreaction of bands, The inputs are well isolated and have minimal insertion loss in their respective frequency bands. Attention to mechanical design ensures guaranteed low passive intermodulation.

The Diplexer has been designed using patented passive techniques that minimize cost and size. At the same time, It guarantees minimal loss and very high reliability with input powers of up to 250 W per input.

Characteristics

  • Integrates commercial wireless bands
  • 50 dB input isolation
  • 250W/Average Port Power
  • Guaranteed low PIM
  • IP67 rating
  • Minimum RF Insertion Loss
  • Robust, High Reliability
  • RoHS
  • N-type and 4.3-10 connectors

Specifications

Frequency: Port 1: 617-960 MHz
Port 2: 1695-2700 MHz
Can: 250 W, average/input max.
CC Pass: 1A max for all ports
Group delay: 3 ns
Return loss: >19dB
Isolation: >50dB
PIM: <-161 dBc&comma; typ. (-118 dBm, typical)
(test with 2 tones of +43 dBm)
Connectors: 4.3-10 f)
Ingress Protection: IP67
Weight: 2:95 pounds (1:3 kg)
