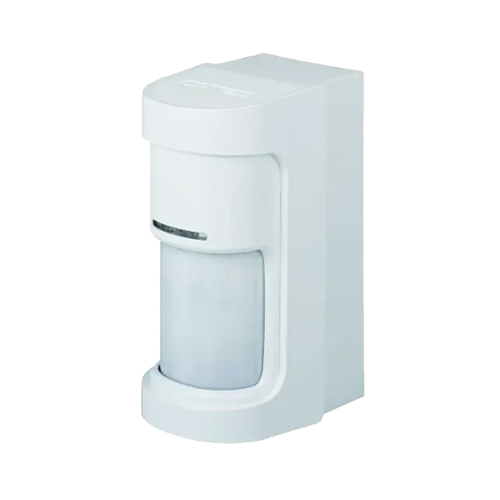

Motion Detector / 180° Detection / Panoramic / Wired / 100% Outdoor / Compatible with any alarm panel / SHIELD Series

  • 0e7f57df2cffdfe09640c414c39bb7db
  • b981aa0b93830aa3c694561a84b1379c
1 2
  • Abroad
  • Panoramic

Out of stock

Modelo: WXS-RDAM

Proveedor: OPTEX

Código SAT: 46171608

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

External detection you can depend on!

The OPTEX WXS series is a family of external SHIELD sensors based on years of proven experience. The WXI series uses analog and digital technologies to detect approaching intruders before they access your protected area. With its wide 180° field of vision and capabilities to adapt its configuration to the environment of its premise, The WXS series will provide an effective solution for new and existing security systems.

Characteristics

  • 180 degrees of wall-to-wall coverage.
  • Individual alarm outputs.
  • Individual sensing adjustment.
  • Individual area size detection.
  • Self-learning IR digital anti-masking function.
  • Sunlight cancellation.
  • Cancellation of rainwater and insects.
  • AND logic function to reduce false alarms.
  • Area masking blind.
  • Area masking plate.
  • SMDA logic (Super Multidimensional Analysis.
  • Exterior Interior.

Individual alarm outputs


Installing a WXI detects 2 detectors because it activates alarm signals on both the left and right sides individually. Therefore, It is useful for PTZ activation, direction recognition and changing the detection pattern of day and night with a CP.

Individual sensitivity adjustment


The detection sensitivity can be set to High, Medium and Low using the left and right switches individually.

Self-learning IR digital anti-masking function


WXI detects objects covering the surface of the lens. The IR digital anti-masking function optimizes the trigger level of the problem outputs generated by masking depending on the condition of the lens surface. A well-calibrated setting for both the temperature-fluctuating emission and reception level of the IR LED contributes to stable anti-masking.

SMDA logic (Super Multi Dimension Analysis)


By analyzing detection patterns and environmental information, SMDA improves immunity against various noise factors, such as climate changes and vegetation, and can distinguish between the cause of nuisance false alarms and genuine intrusions.

Area Masking Blind


Using the rotating shutter to mask the sliding area, You can change the size of the detection areas.

Area masking plate


Unwanted detection areas can be masked with the included area masking plate.

Applications

Residential

Residential

Rooftop

Roofs

Substation

Substations
