Motion Detector / 100% Outdoor / Wireless (Power) / Up to 24 meters / Installation at 3 meters / Compatible with any alarm panel

  • 9d31176bb7807c9e66bb323c32ff8ce3
  • 9d31176bb7807c9e66bb323c32ff8ce3
1 2
  • Detector PIR para exteriores con rango de 24m
  • Rotación horizontal de 180 grados para ajuste preciso
  • Instalación personalizable para áreas específicas
  • Operado a baterías para mayor versatilidad
  • Aletas ajustables para limitar larga distancia

28 in stock

Modelo: HX80NRAM

Proveedor: OPTEX

Código SAT: 46171608

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

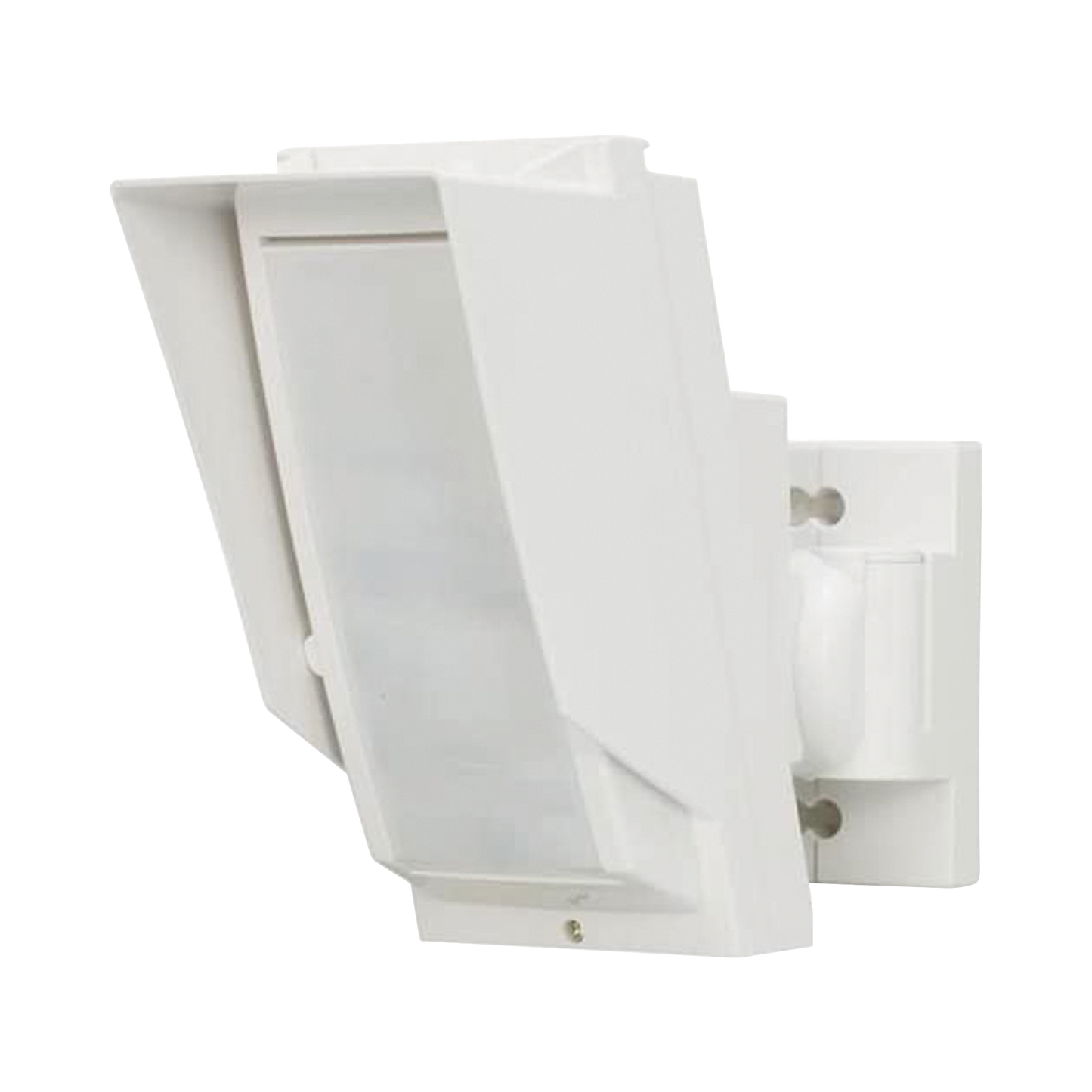

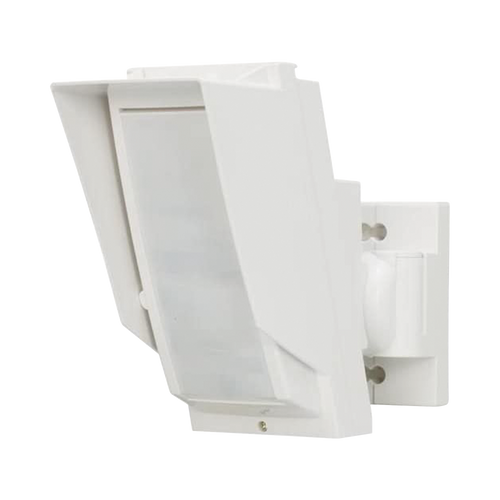

24M Narrow and Long Range High Range Outdoor PIR Detector

Battery Operated HX-80NRAM Series

To adapt to the slope of the terrain, The HX-80NRAM's clamp can be rotated horizontally 180 degrees and tilted vertically up and down. With the covers and plates that it incorporates, HX-80NRAM can be installed to mask the widest or shortest range, and be able to focus solely on the area of ​​interest.

...

friendship earring

Not all outdoor terrain is flat like most indoor environments. Steep slopes can cause negative effects on the capture performance function. The included adjustable stand allows the HX to maintain optimal shooting performance.

...

Long distance limit fins

To adjust the long detection range: set the top and bottom fins.HX series features excellent catching performance. The most important element in a reliable outdoor detector is the accuracy in distinguishing a human from a small animal. The unique onboard pyro element allows the HX to project an ideal detection pattern, allowing for more accurate human detection and fewer false alarms.

...

Short range masking plates

To adjust the short detection range. Place the masking plates. By using our double conduction shielding, Visible light disturbance and RFI can be blocked.

HX80NRAM - The PIR with high detection range

The HX-80N PIRs are mounted 2.5 to 3 meters high and offer reduced volumetric outdoor intrusion detection up to 24 m . The HX-80N series is ideal for protecting alleys, areas along fences or the immediate approaches to a building. It has been designed to distinguish between people and pets of small to medium size, which greatly reduces the risk of false alarms. The HX-80NRAM is the battery powered model (Not included) with active IR anti-masking model. UseRBB01 box (Optional)

Characteristics

  • Mounting height 2.5-3m
  • Active IR digital anti-masking
  • Flexible detection area setting
  • Long distance limit fins
  • Short range masking plates
  • Smart and logical with a unique pyro element
  • Active IR digital anti-masking (HX-80NRAM only)
  • Battery box for numerous battery types (HX-80NRAM only)
