Oxygen Detector, Controller and Transducer for Fire Detection Panel

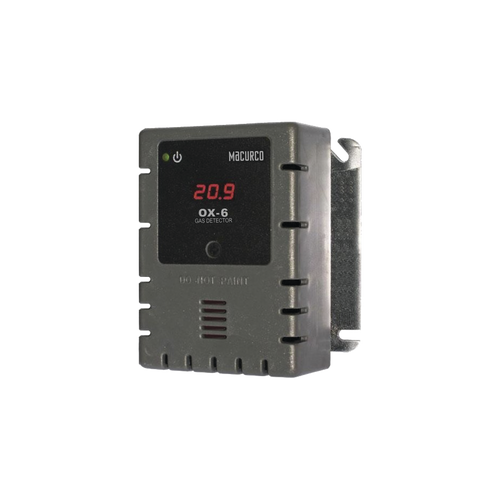

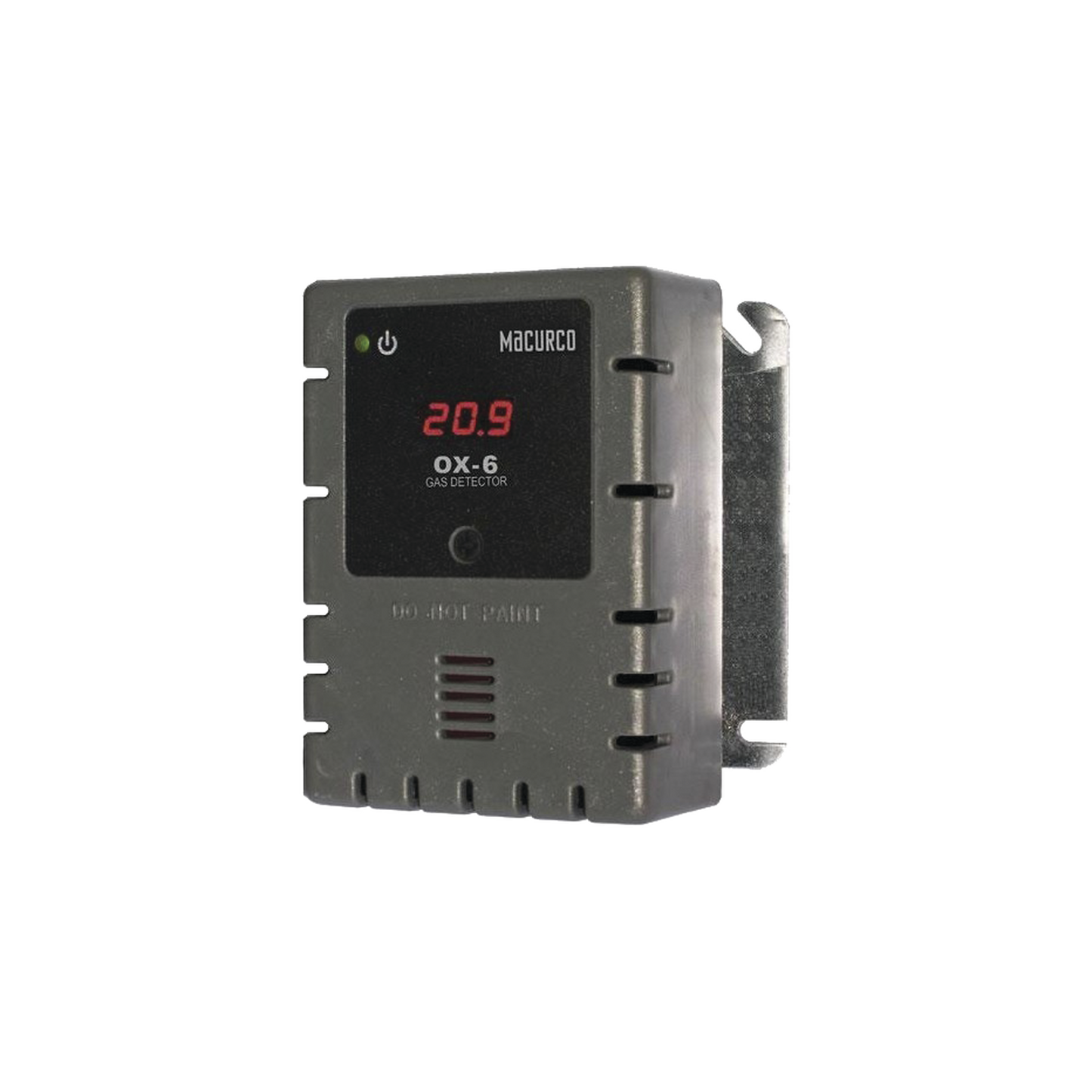

The OX-6 from MACURCO is a detector, low voltage controller and transducer, that integrates double relay, 4-20 mA selectable output: buzzer and digital screen, is an electronic sensing system used to measure Oxygen (O2) concentration and provide feedback and control of the automatic ventilator/exhaust fan to maintain the appropriate oxygen concentration in commercial applications. The OX-6 is a low level meter capable of recording 0 to 20% oxygen level.

Characteristics

• Fan Relay Activation: Selectable
• Outputs: Fan relay, Alarm relay and 4-20mA current loop
• Controls: Digital Indicator (0-25% v/v), buzzer, fan delay, Minimum fan operating time.
• Factory calibrated
• Mounts to a standard 4" x 4" electrical box
• 0.5 A NO or NC alarm relay connects to warning devices or control panels
• 5A SPDT fan relay controls valves, grates or extractors
• 4-20mA current loop - compatible with the Macurco DVP-120 Control Panel
• Supervised system design: trouble detector will activate ventilator and alarm relays
• ETL listed to UL 61010-1, CAN CSA C22.2 No 61010-1
• Fan relay: 5 A, 240 VAC
• Fan relay with 0 delay 1, 3 (default), 5 and 10 minutes
• Minimum fan runtime setting to state 0 (default), 3, 5, 10 or 15 minutes
• Alarm relay: 0.5A 120V, 60VA
• Operating temperature: -18 to 52°C, 10 to 90% relative humidity without condensation
• Power: 12 to 24 Vac or 12 to 32 Vdc
• Current: @ 24 Vdc 75 mA in alarm, 50 mA in fan relay and 23 mA in rest state.
• Dimensions: 114 x 102 x 54mm
