(RM CRS328-4C-20S-4S) Cloud Router L3 Manageable Switch, 4 TP/SFP Combo Ports, 20 SFP Ports, 4 SFP Ports

  • 4f9c965eb367edd0b0d7dcfd576b3e35
  • 4f9c965eb367edd0b0d7dcfd576b3e35
1 2
  • 28 puertos independientes con configuración por software
  • 20 puertos SFP y 4 puertos SFP+ para 10G
  • Soporte de montaje en rack 1U con conmutación por error
  • Función de arranque dual: RouterOS y SwOS
  • Botón de modo personalizable para comandos RouterOS

12 in stock

Modelo: CRS328-4C-20S-4S+RM

Proveedor: MIKROTIK

Código SAT: 43222610

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

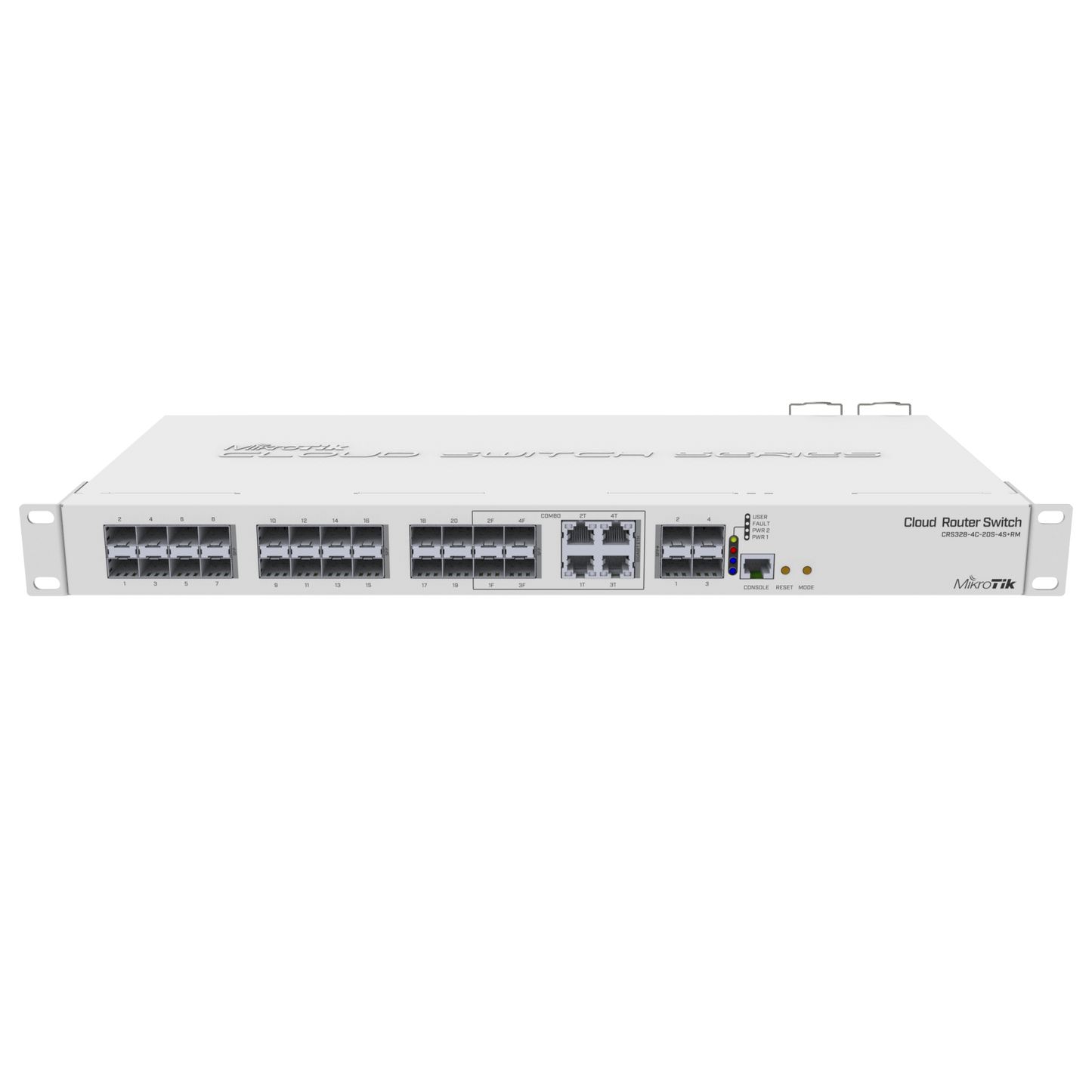

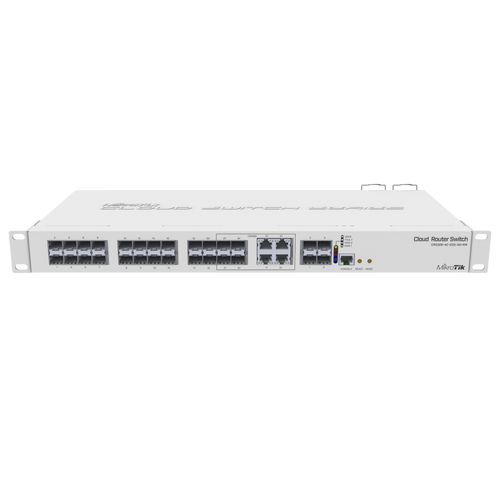

The CRS328-4C-20S-4S+RM is a standalone 28 port switch with a combo group. This device has twenty SFP ports, four SFP+ ports for 10G modules and four combo ports, where you can choose to use SFP or RJ45 ports from the combined group. These ports can also be selected by software, so if you have connected all eight cables, you can use scripting to decide which four combined ports will be active.

The device comes in a 1U rackmount enclosure with two 100-240V power supplies with failover functionality. An RJ45 console port is available for management and debugging, and a mode button can be customized to execute any RouterOS command.

The device has a "dual boot" feature that allows you to choose between two operating systems: RouterOS or SwOS.

Specifications

Details
Product code CRS328-4C-20S-4S+RM
Architecture ARM 32 bits
CPU 98DX3236
CPU core count 1
CPU nominal frequency 800 MHz
Dimensions 443 x 194 x 44 mm
RouterOS License 5
Operating system RouterOS / SwitchOS
RAM size 512 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -20 °C a 60 °C

Feeding

Details
Number of AC inputs 2
AC input range 100-240
Maximum power consumption 43 W
Fan count Passive

Ethernet

Details
Ethernet Combo Ports 4

Fiber

Details
SFP ports 20
SFP+ ports 4

peripherals

Details
Serial port RJ45

Other

Details
CPU temperature monitor Yes
Voltage monitor Yes
mode button Yes

Certification and approvals

Details
certification CE, EAC, ROHS

Parts included

The device has a pre-installed and licensed operating system. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years from the date of purchase.
