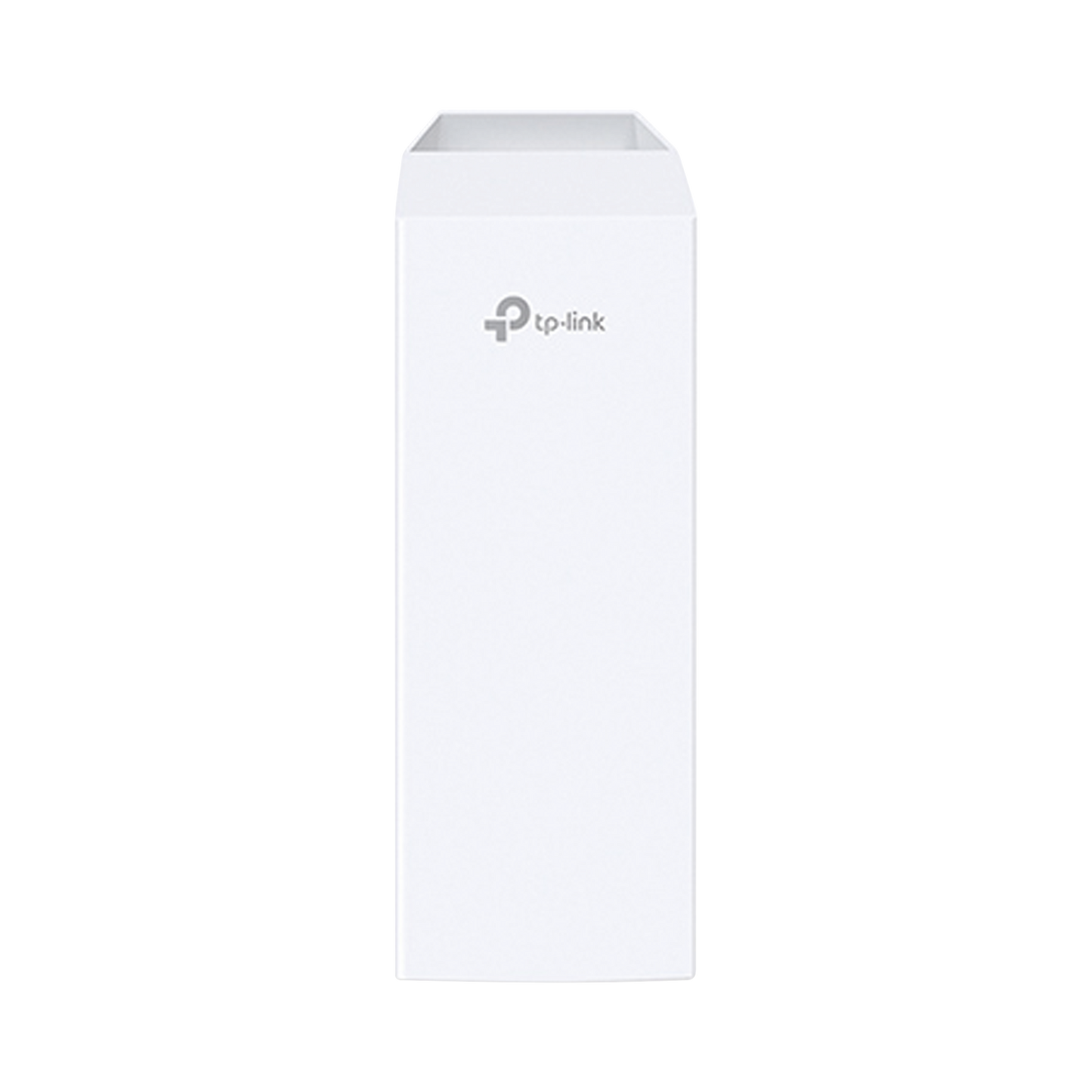

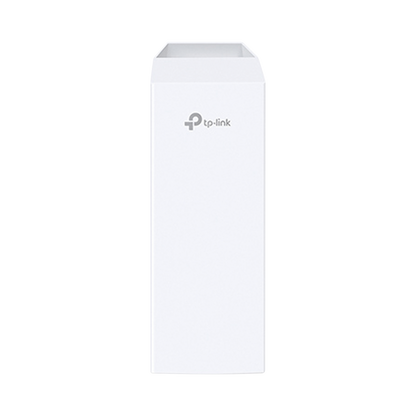

5 GHz 300Mbps Outdoor CPE, 13dBi directional antenna, 27 dBm power
Outdoor CPE 5GHz 300Mbps 13dBi
- Incorporates 13dBi 2x2 MIMO directional dual-polarized antenna
- Transmission power adjustable from 0 to 23dBm/200mw
- System-level optimizations for wireless transmission over 15 km long range
- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) Technology improves product performance, capacity and latency performance, ideal for PTMP applications
- Centralized Management System - Pharos Control
- Modes of operation, AP/ Client/ Repeater/ AP Router/ AP Client Router (WISP)
- Passive PoE adapter supports up to 60 meters (200 feet). Power over Ethernet implementation and allows the device to be reset remotely
| HARDWARE FEATURES |
|---|
| Processor | Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc |
| Memory |
64MB DDR2 RAM, 8MB Flash |
| Interface |
1 Shielded Ethernet Port 10/100Mbps (LAN0, in Passive PoE)
1 Grounded terminal
1 Reset Button |
| Power supply |
Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage Range: 16-27VDC |
| Energy consumption |
10.5 Watts Max
Note: When deployed using passive PoE, The power drawn from the power supply will be higher by a certain amount depending on the length of the connecting cable. |
| Dimensions (WXDXH) |
224 x 79 x 60mm |
| Antenna Type |
2 Built-in 13dBi Directional Antennas with Dual Polarization
Beam Width: 45° (H-Plane) / 30° (E-Plane)
Note: For more details, read the data sheet |
| Protection |
15KV ESD Protection
Lightning Protection 6000V |
| Enclosed |
Outdoor Stabilized ASA Plastic Material
IPX5 Waterproof Certification |
| WIRELESS FEATURES |
| Wireless Standards |
IEEE 802.11a/n (with Pharos MAXtream disabled) |
| Proprietary Protocol |
TDMA mode (with Pharos MAXtream enabled) |
| Wireless Speeds |
Up to 300Mbps (40MHz, Dynamic)
Up to 144.4Mbps (20MHz, Dynamic)
Up to 72.2Mbps (10MHz, Dynamic)
Up to 36.1Mbps (5MHz, Dynamic) |
| Frequency |
5.15~5.85GHz
Note: The available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. |
| Reception Sensitivity |
• 802.11a:
54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm
• 802.11n:
MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm,
MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm,
MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm,
MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm,
MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm |
| Potency of transmission |
23dBm/200mw (power adjustable by 1dBm)
Note: The maximum transmit power may vary across different channels depending on the limitations of the countries or regions where the device is used. |
| SOFTWARE FEATURES |
|---|
| Wireless Settings |
Pharos MAXtream TDMA technology
802.11a/n modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Power Control Transmission
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security:WPA/WPA2 encryption, WPA-PSK/WPA2-PSK (AES/TKIP) , 64/128/152-bit WEP encryption
SSID Broadcast Enabled / Disabled
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK timeout setting
Wireless MAC Address Filter
Advanced Wireless:
> Beacon Interval/RTS Threshold/Fragmentation
>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia |
| Administration |
Remote Discovery and Management via the Pharos Control app
HTTP/HTTPS based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server |
| System Tools |
Wireless Signal Quality Indicators:
Signal Strength/Noise/Transmission CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum analyzer
Speed Test
Ping
Traceroute |
| System Level Optimizations |
Optimized IGMP/proxy for multicast applications
Hardware watch dog |
| POE ADAPTER FEATURES |
|---|
| Dimensions(W x D x H) |
110*57*33.5mm |
| Interfaces |
1 AC Jack with Earth Ground
1 Shielded Ethernet Port 10/100Mbps (Power + Data)
1 Shielded Ethernet Port 10/100Mbps (Data) |
| Button |
Remote Reset Button |
| Power Status LEDs |
0~0.8A: Green
0.8A~1.0A: Red |
| Input |
100-240VAC, 50/60Hz |
| Input Voltage | 100VA~240VAC @ 50Hz~60Hz |
| Input Current |
0.8A Max @ 100VAC |
| Output |
24VDC, 1.0A Max
+4, 5pins; -7, 8pins. (Supports up to 60m Power over Ethernet) |
| Output Voltage |
24VDC(+4@5pins; -7@8pins) |
| Efficiency |
>80% |
| Certifications |
CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark |
| OTHERS |
|---|
| Certification |
CE, FCC, RoHS, IPX5 |
| Package Contents |
Wireless Outdoor CPE
Passive PoE Adapter 24V 0.6A
Pole Mount Straps
AC power cord
Installation guide |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend using one of the following web browsers for an improved user experience: Google Chrome, Safari and Firefox. IE browsers are not recommended. |
| Atmosphere | Operating Temperature: -30°C~70°C (-22℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing |
