Reader converter for access control (wired to wireless) / 1 Wiegand / 2 Relays / 2 Inputs / Crosses up to 1.6 KM In Construction or Material

  • d6e6c532140869e16dbdd3eb319c679d
  • c6763f73337334423c707e54e5f015b6
  • a2ae5f1de69d8efbcd81582cd86de356
  • 3c8c05dc8d9bec6301840baa96a862af
1 4
  • 1 Wiegand
  • 2 Relays
  • 2 Entries

Out of stock

Modelo: DS004BRIDGE

Proveedor: Sure-Fi

Código SAT: 46171619

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

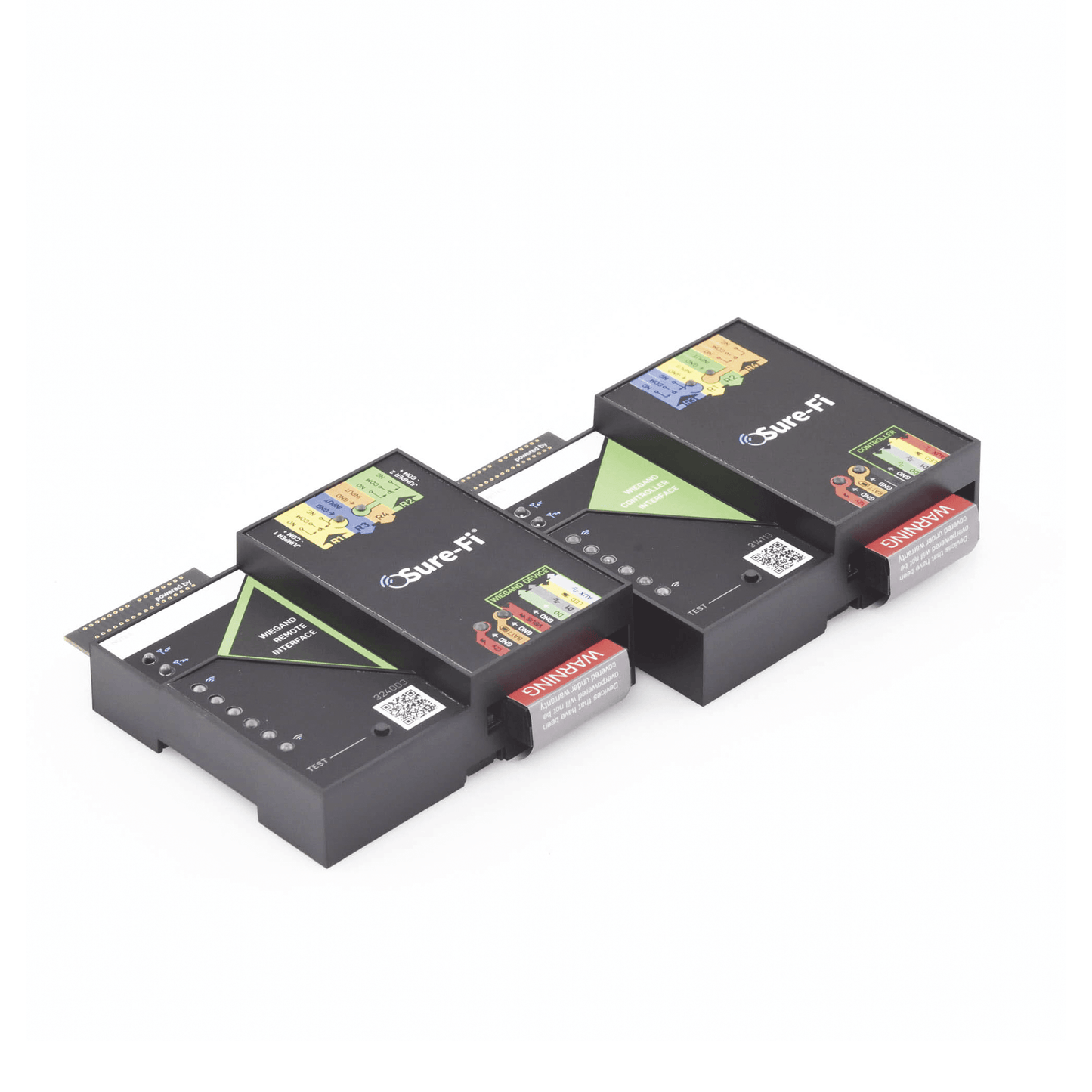

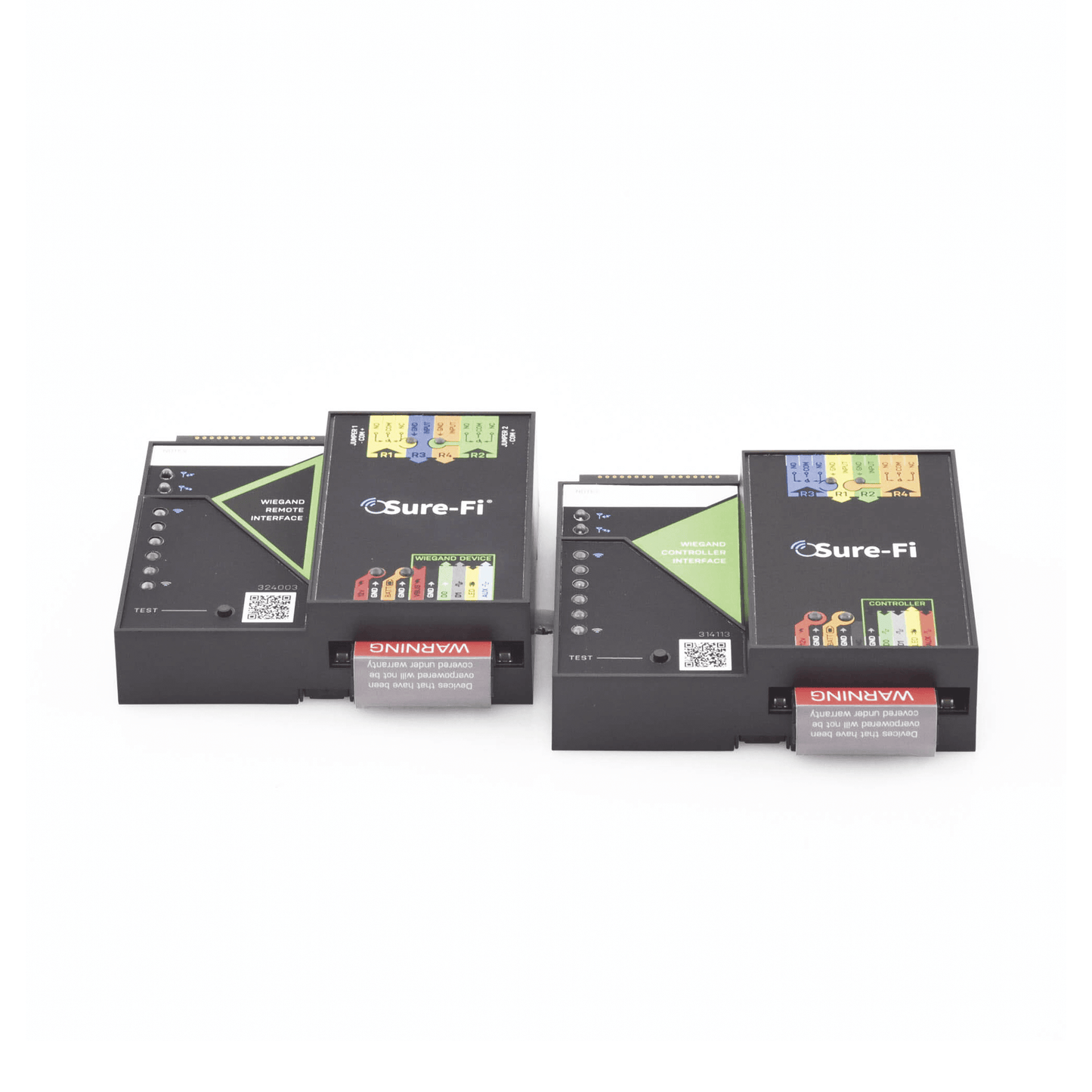

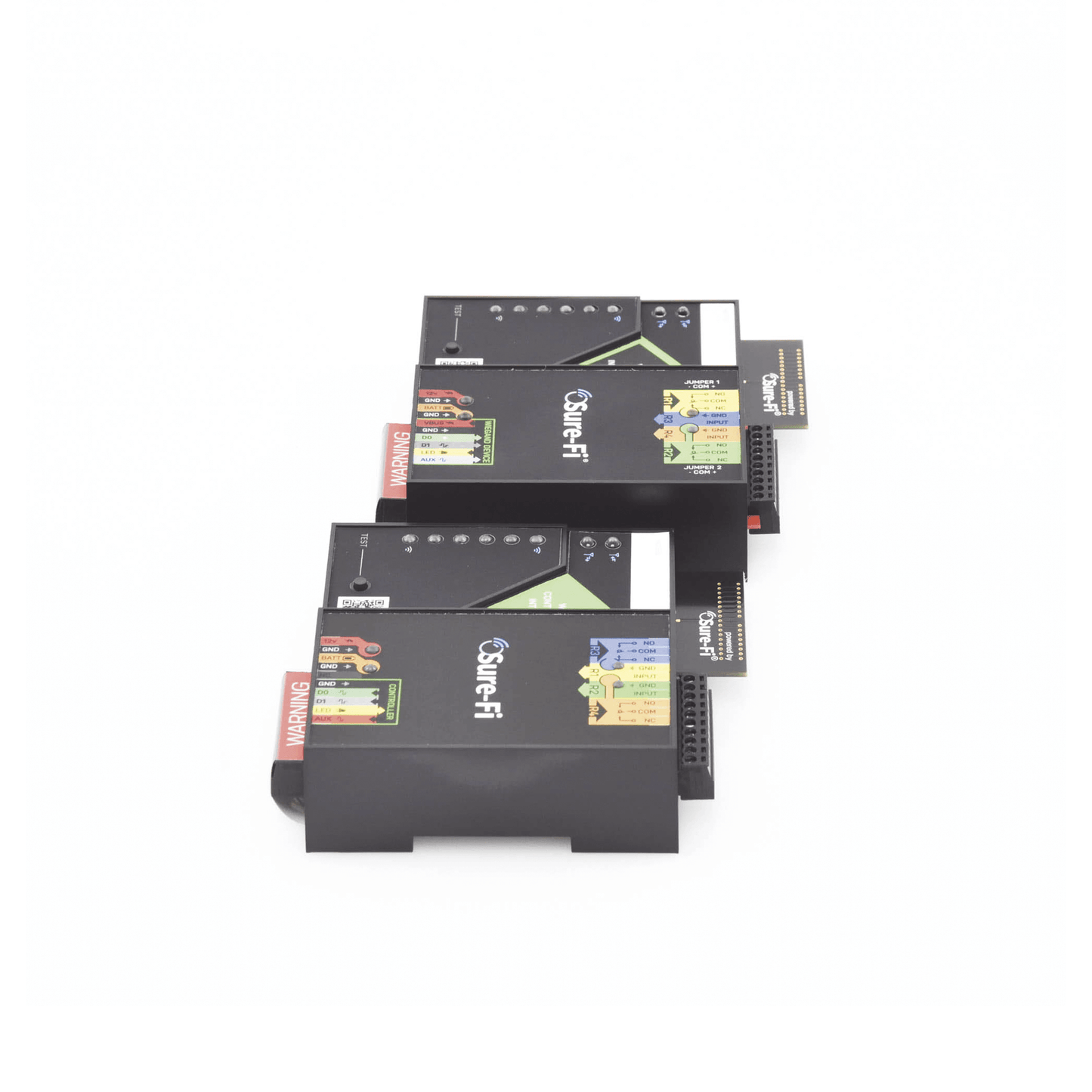

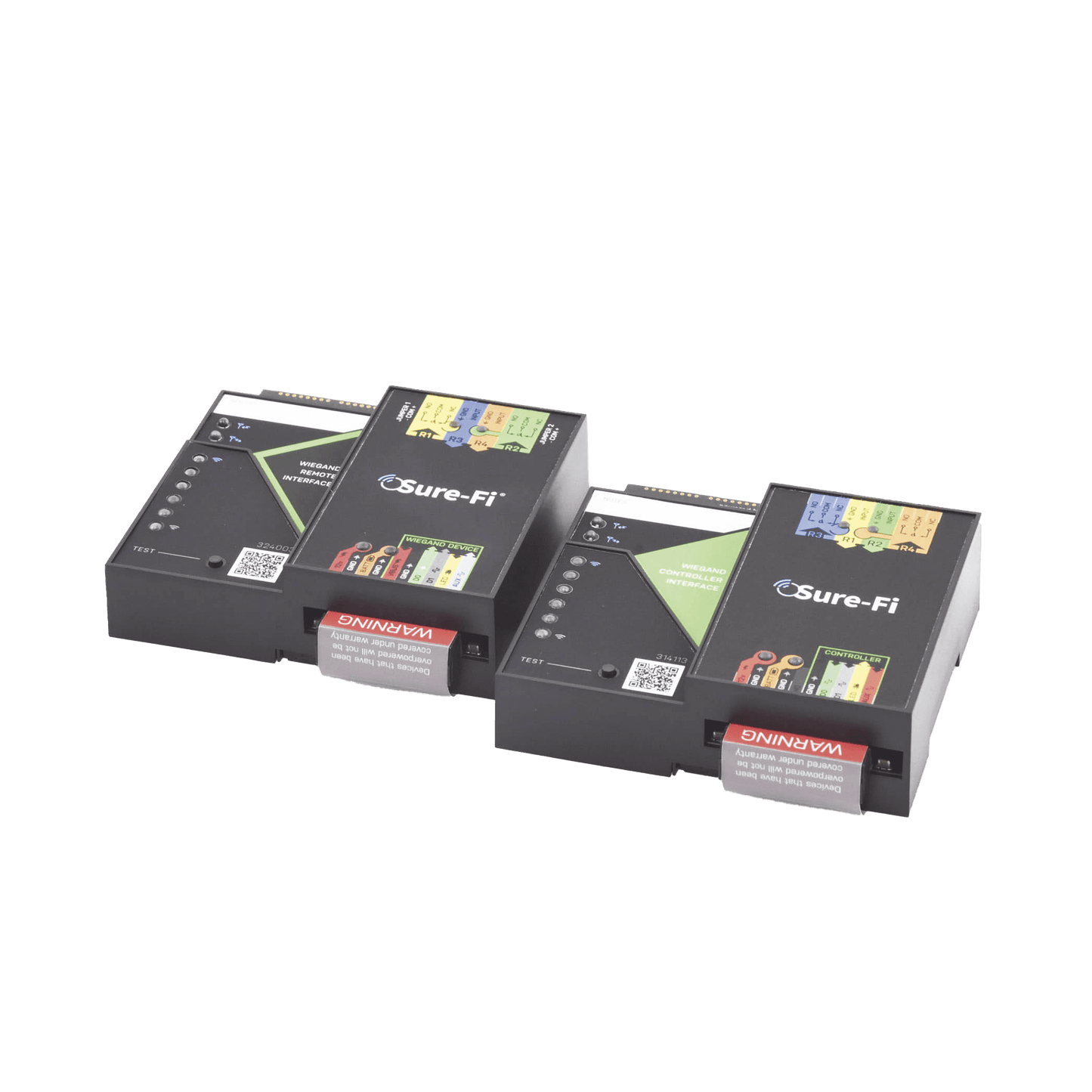

Sure-Fi Wiegand

This device is a Wiegand protocol remote controller; Replace wiring in a new or existing Wiegand connection system.

Sure-Fi Wiegand installs in minutes, in addition to being very competitive with the cost of wiring for all types of jobs (easy and difficult cable pulls).

It is compatible with any device that works via the Wiegand protocol.

It also has AES128 (Advanced 128-bit Encryption System) encryption security.

Characteristics :
  • Works with any Wiegand protocol.
  • 1 Wiegand input
  • 2 relay outputs (wet or dry)
  • Request Input Exit (REX)
  • Door monitor input (DPS)
  • Battery backup input with battery charger and UPS function
  • DIN rail mounting or direct wall mounting
  • Signal strength indicators: transmission and reception
  • Test button for easy range testing
  • Configurable and updateable field with the Sure-Fi application
Technology
  • Range up to 1.6 KM through obstructions and over 80 KM with line of sight
  • Patented bunker removal technology, using 900 MHz
  • Works inside metal enclosures.
  • Patented PCB antenna design
  • FCC (USA) and IC (Canada) Certification
Specifications :
  • Operating voltage: 12Vdc (9Vdc - 15Vdc)
  • Operating current (@12Vdc): 0.08A (idle), 0.3A (transmitting)
  • Operating power (@12Vdc): 3.6 watts (peak)
  • Transmission power: 1 watt (30dBm)
  • Frequency band: 902 - 928MHz
  • Channels: 72 (frequency hopping)
  • Receiver sensitivity: -133dBm
  • Link: 163dB
  • Range: up to 1.6 KM through obstructions and over 80 KM with line of sight
  • Encryption: AES128
  • Battery backup connection: 12V Sealed Lead Acid (SLA) type only
  • Battery charging voltage: 13.75 V maximum in standby mode
  • Relays: 2A 250VAC / 2A 250Vdc wet or dry. NO, NC, COM (x2)
  • Operating temperature: -40º C to +85º C
  • Storage temperature: -55º C to +125º C
  • Mounting options: DIN (35 mm x 7.5 mm) or direct mounting with two screws

Solutions in access control.

One of the best solutions that the DS004BRIDGE allows us to have is access control when we have nowhere to put the panel or we cannot give it access to the network, An example of this is warehouses outside our main building where there is no network to have a panel and be able to manage it, Another example is vehicle access control when there is no surveillance or security system, something that was previously a limitation is now just another installation thanks to the DS004BRIDGE.

Access control when there is no booth LINK HERE.
