12/24 Vcc 20 Amp solar controller. With measurement screen.

  • 104afe0c46980bf938de6300b52ce61c
1 1
  • Modulación PWM para carga solar eficiente
  • Corriente máxima de carga hasta 30 amperios
  • Operación con baterías 12V o 24V automáticamente
  • Precisión de voltaje del 0,1% +/- 50 mV
  • Protección contra sobretensión de 1500 W

16 in stock

Modelo: EC-20M

Proveedor: MORNINGSTAR

Código SAT: 26111500

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

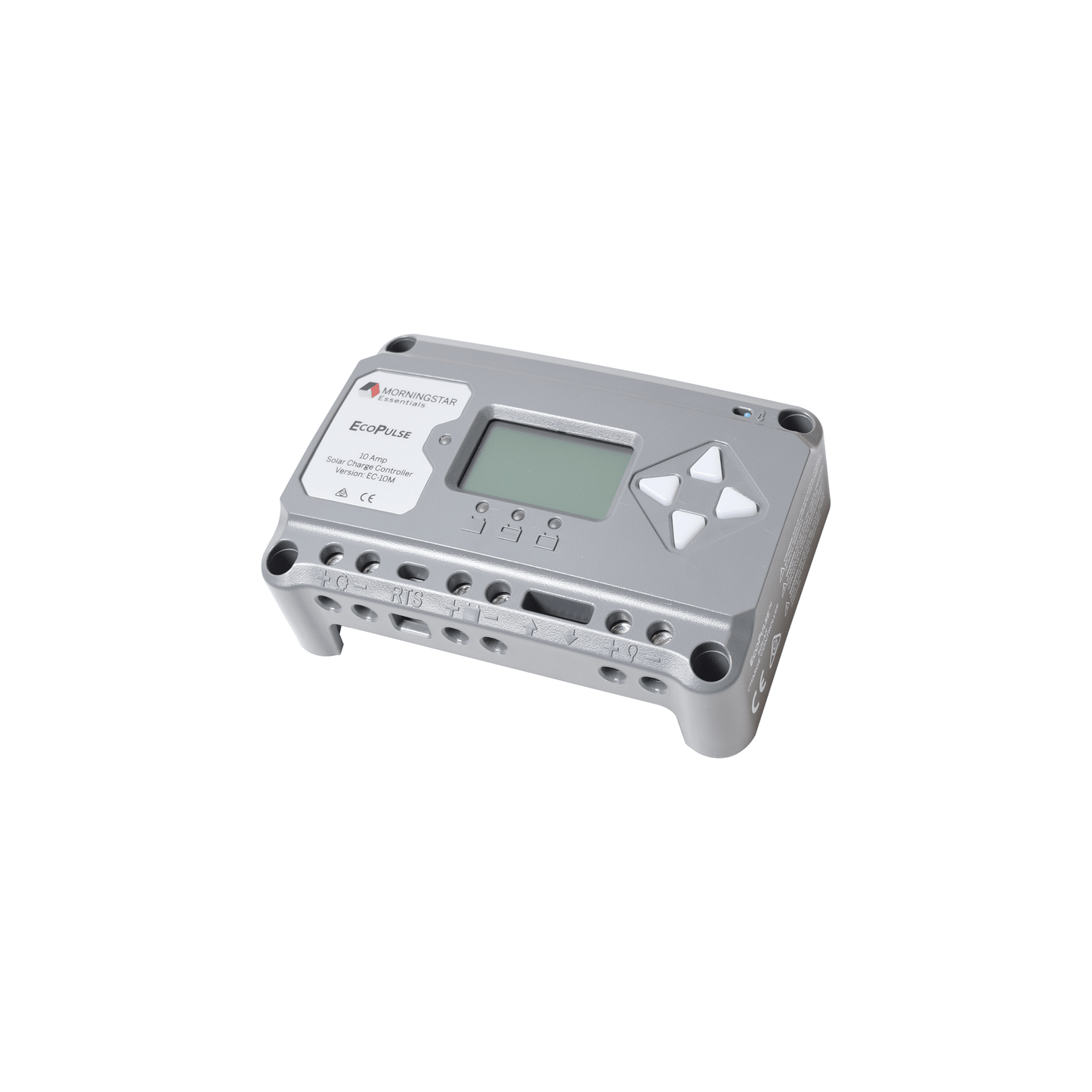

The EcoPulse is a solar charge controller with modulation of the
pulse magnitude (PWM) belonging to the range of Products
Morningstar Essentials™, that offers essential functions of
autonomous battery regulation. This controller is easy to
use and is designed for household and consumer applications.
recreational.* Metered and unmetered versions of this product are
sold with maximum charging currents of 10, 20 or 30 amps
for 12 or 24 volt battery systems.

Electrical Characteristics:

• Nominal battery voltage: 12V or 24V auto detection.
• Battery voltage range: 10V-35V.
• Voltage accuracy: <= 0&comma;1% +/- 50 mV.
• Maximum battery current: 10 A&comma; 20 A or 30 A.
• Maximum solar PV open circuit voltage: 60V.
• Rated load current: 10 A or 30 A.
• Self-consumption: < 15 mA; < 20mA (meter).
• LED indicators: (1) status, (3) battery charge level.
• Transient surge protector: 1500 W (solar, battery, load).
