Access controller for 4 readers / Expandable to 56 Readers / Compatible with Elevator System / 100,000 Users

  • 72073e072089641f70ebaade149350ff
  • 72073e072089641f70ebaade149350ff
1 2
  • Compatible con 56 lectoras para entornos grandes
  • Tarjeta TCP/IP con encriptación AES 128 bits
  • Memoria cíclica para 500,000 eventos
  • Soporta 6 lectoras, 4 Wiegand y 2 OSDP
  • Flexible acceso por usuario y horario

41 in stock

Modelo: AC-825IP

Proveedor: ROSSLARE SECURITY PRODUCTS

Código SAT: 46171619

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

NEW FEATURES

With new innovative features that were requested by the market and creative creations from our laboratories.

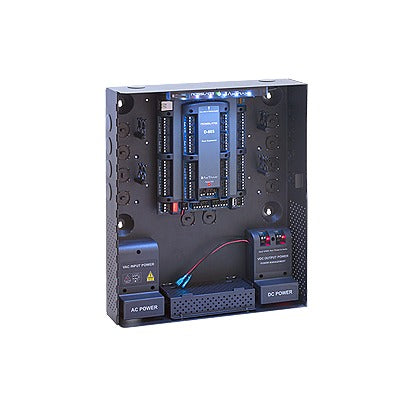

AC-825IP

Access controller for 4 readers / Expandable to 56 Readers / Compatible with Elevator System / 100,000 Users.

The AC-825IPL is the most used access controller in the industry, ready for simple systems, medium and large.

Biometric Readers with Rosslare + AXTRAX. "Everything in the same Software"


Elevator access can be adjusted based on user classification, the time of day, the elevator and the status of the control panel.
Create flexible and secure access control. Grant and deny access by floor, time zone, elevator and the armed state of a floor.

  • Up to 56 readers with expanders.
  • 100,000 users.
  • 500,000 events in memory (cyclic memory).
  • TCP/IP card with 128-bit AES encryption.
  • Supports control of up to 6 readers, 4 via Wiegand and 2 via OSDP, each with 2 inputs and 1 output.
  • 4 auxiliary inputs and two auxiliary outputs.
  • Supports two readers via OSDP.
  • Expansion port interbuilt directly into slat, The system can accommodate up to 12 expansion cards via OSDP (R/S/D/P-805) in addition to the panel-mounted expansion card.


  • R-805 - 16 output expansion card.
  • S-805 - 16-input expansion card
  • D-805 - 4-door expansion card.
  • P-805 - 16 input and 8 output expansion card

  • An ME-1505 cabinet houses 2 expander cards, In addition, the ME-1505 has all the innovative features of the AC825 cabinet.
  • Real time clock, Maintains time and date for up to two weeks without power.
  • Great cabinet space, with sheet metal, It has combs to better manage the wiring, Cabinet includes LED light to illuminate slat and cabinet in low light situations
  • Power management allows you to know the status of the power and battery.
  • Measurements (HxWxD): 345 x 400 x 10 mm
  • Free software up to 256 readers
  • The relays are dry contact.

RECOMMENDED OPERATING SYSTEM FOR AXTRAXNG 27 ES WINDOWS 8/8.1/10 PRO




GRADES:

AXTRAXNG software , The use of IP cameras through the VITRAX application is no longer supported.

Only the software supplied with the equipment or provided by SYSCOM is supported and as long as the same database engine that is included is used. Any other implementation towards another software or another database version, It is the responsibility of the integrator or developer in charge

PRODUCT WARRANTY 1 year direct from SYSCOM and 2-year limited product WARRANTY from the Factory.

VISIT OUR ROSSLARE KNOWLEDGE BASE

Elevator Control with AC825IP and R805 module

Use Rosslare CSN readers with the NFC function of your Smartphone

Interconnection example

Integration diagram
