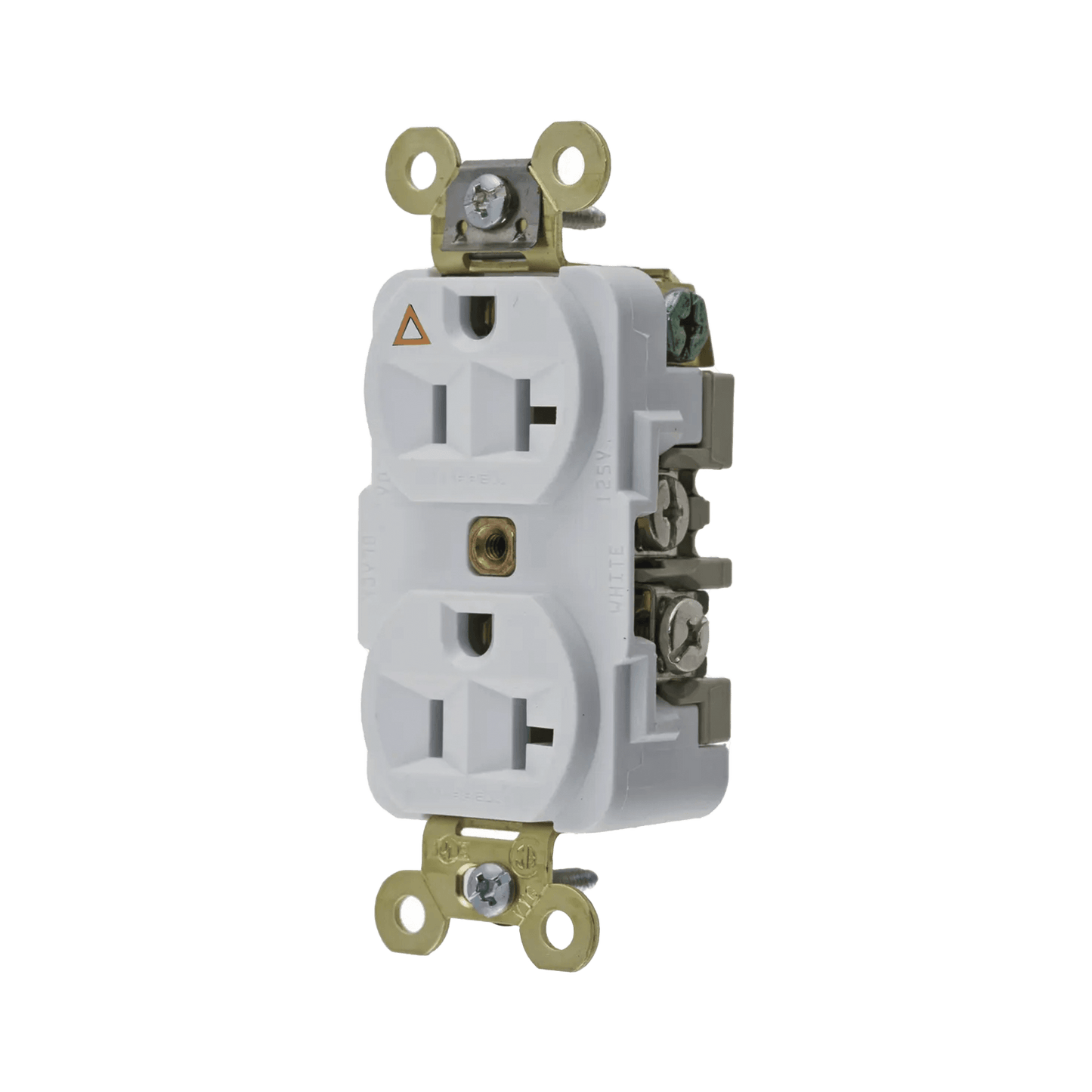

Duplex Contact Insulated Ground Connection/ 20 A 125 V/ 2 poles 3 Wires/ White Color/ Nema 5- 20R/ Industrial Grade.

  • 533f3dd5ec6bf47ed5aef9bfa8ff4cb2
1 1

28 in stock

Modelo: HUB-IG5362W

Proveedor: HUBBELL

Código SAT: 39121330

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Duplex contact, industrial grade, 2 poles, 3 cables, 20A 125V, NEMA 5-20R, White color.

Specifications:

Application Extra heavy duty
Material Nylon
Work environments Dry interior unless protected by additional means.
Power - max. 1
Kind of team Traditional duplex
Mounting Screw mounting
Number of poles 2
Operating Temperature Continuous maximum of 75 °C and minimum of -40 °C without impacts.
Performance

Electrical - Current Interruption - Certified for current interruption at full rated current.

Electrical - Dielectric voltage - Supports a minimum of 2,000 V.

Environmental- Flammability - Superior: UL 94V-2, Base: UL 94V-0.

Environmental- Operating temperatures- Maximum continuous of 75 °C and minimum of -40 °C without impacts.

Mechanical - Product Identification - Ratings are a permanent part of the device.

Mechanical - Terminal Housing - #12 #10 AWG solid or stranded copper conductor only.

Mechanical: Terminal Identification- Terminals identified in accordance with UL 498 and CSA.

Series Heavy service
Dimensions

3.28 in x 1.33 in x 1.05 in

83.31mm x 33.78mm x 26.67mm

Height 1.05 in (26.67 mm)
Long 3.28 in (83.31 mm)
Broad 1.33 in (33.78 mm)
Weight 0.25 lb (0.11 kg)
Amperage range 20 A
Voltage Range 125V
Power 2500W
Number of threads 3- Threads
Cable Size #12 AWG to #10 AWG
Nema 5 - 20 R
