LCD console | HDMI, VGA, DVI, USB | Single Rail | 17.3\" screen | 1U height

  • 0358cef0445a684d9034fa2c970e1bc5
  • 79b55600db3afecf9a974dd5a5a9cb4f
  • db6a32eac732924c4f535908d453cc12
1 3

Out of stock

Modelo: CL6700MW

Proveedor: ATEN

Código SAT: 46171611

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

LCD console

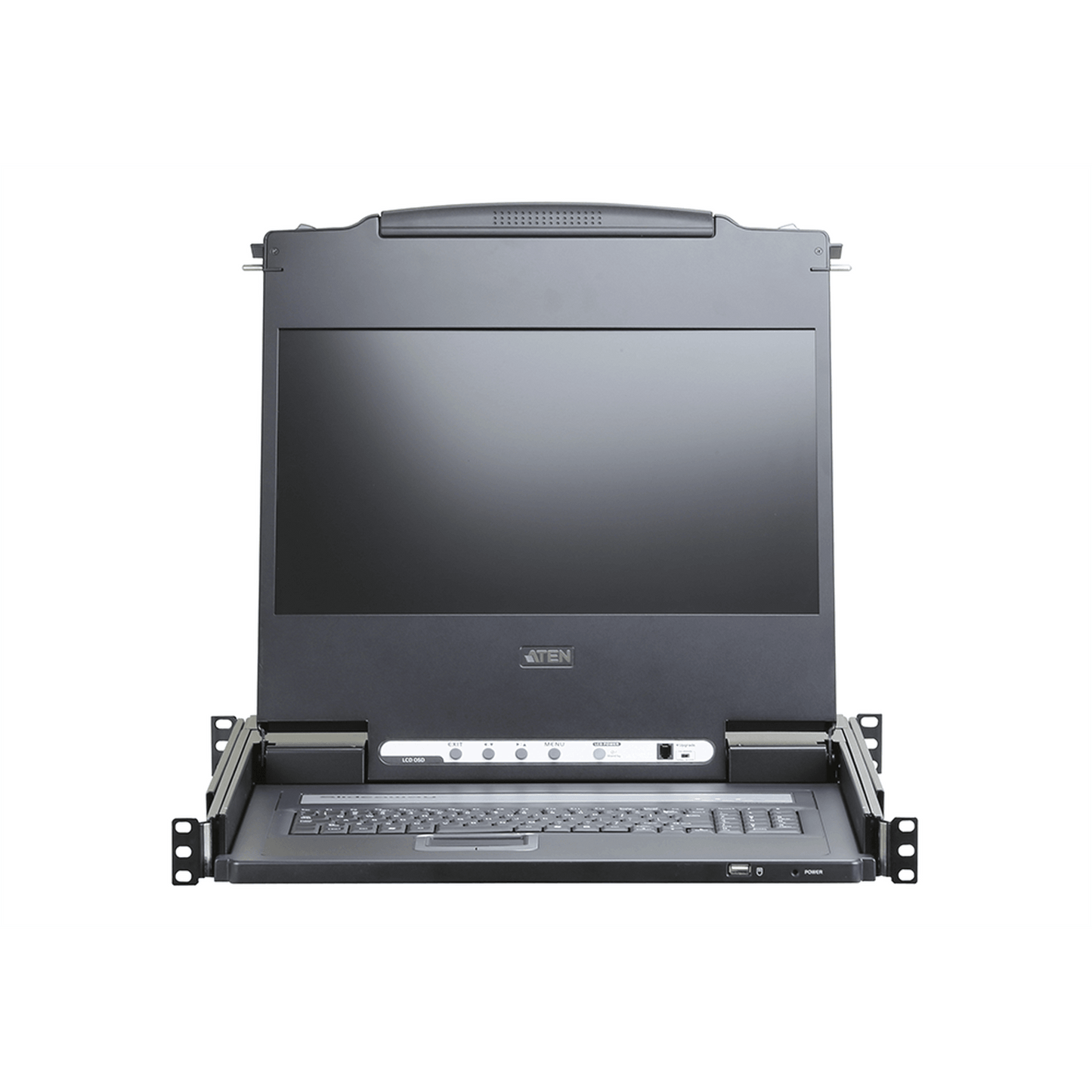

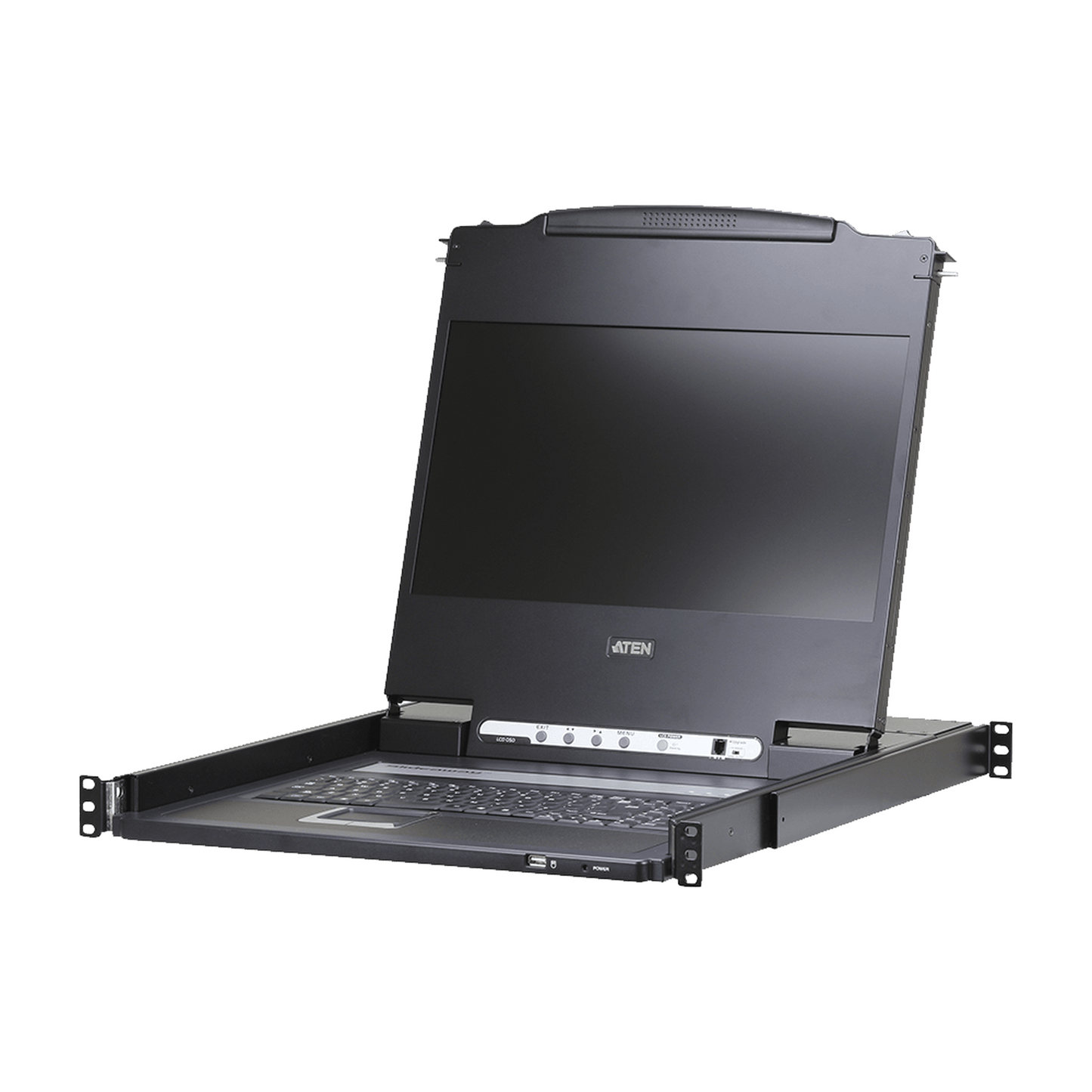

The CL6700MW DVI Full HD LCD Console is a single-rail KVM console featuring a 17.3" LED widescreen display, integrated keyboard and touchpad in a 1U rack-mountable slide-out enclosure. It allows front access to compatible KVM switches and operates with LCD monitor, keyboard and touchpad. It offers VGA, DVI or HDMI connection options and has two additional HDMI ports for high-definition monitors. It includes USB and audio ports and is ideal for server rooms with switches. KVM.DVI.

  • Integrated KVM console with a 17″ LED-backlit LCD monitor and Full HD resolution in a single-rail housing designed for easy installation in a 1U system rack.
  • Includes a standard rack mounting kit, with an optional easy rack-mount kit (for one-person installation) available separately.
  • Supports external consoles with USB/DVI/VGA/HDMI connectors and has an additional USB mouse port on the front panel.
  • It offers high-quality video up to 1920 x 1080 at 60 Hz and audio support for speakers.
  • Compatible with various operating systems, including Windows, Linux, Mac and Sun.
  • Adjustable depth to fit rack, firmware upgradeable and equipped with console lock for secure storage.
  • DDC emulation automatically adjusts video settings for optimal output.
  • Language support for keyboard, including English (USA), french, german, Italian, Spanish and others.

General characteristics

  • PC Connections
    • Direct: 1
  • Console selection:
    • hotkeys

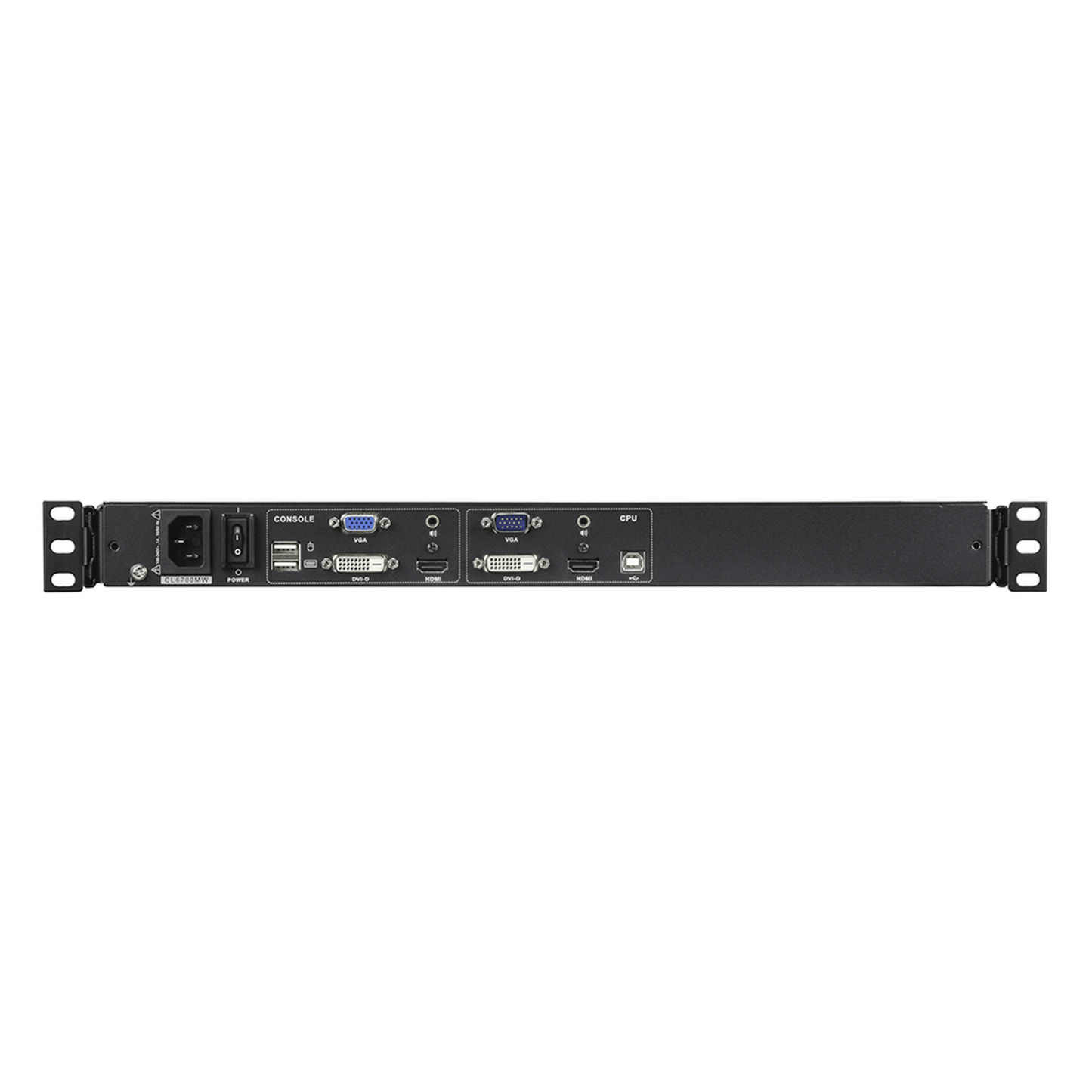

  • Connectors:
    • KVM ports:
      • 1 x USB Type B Female
      • 1 x HDMI female
      • 1 x DVI-D female (white)
      • 1 x HDB-15 male (blue)
      • 1 x 35mm female audio connector (green)
    • Firmware update:
      • 1 x RJ-11 female connector.
    • Feeding:
      • 1 x IEC 60320/C14
    • External console ports:
      • 2 x USB Type A female
      • 1 x HDMI female
      • 1 x DVI-D female (white)
      • 1 x HDB-15 female (blue)
      • 1 x 35mm female audio connector (green)
    • Mouse and external peripherals:
      • 1 x USB Type A Female (Front)
  • switches
    • Reset: 1 x semi-flush push button
    • Firmware upgrade: 1 x slide switch
    • Power: 1 x slide switch
    • LCD control: 4 x push buttons
    • LCD Power: 1 x LED Push Button
    • LCD Screen Adjustment: 4 x Push Button
  • LEDs
    • Feeding
      • 1 x KVM console (dark green)
      • 1 LCD screen (orange)
    • Block
      • 1 x number lock (green)
      • 1 x Caps Lock (Green)
      • 1 x Scroll Lock (Green)
    • LED lighting light
      • 1 x LED indicator
  • Panel specifications:
    • LCD Module: 17:3" TFT-LCD
    • Resolution: 1920 x 1080 at 60Hz
    • Response time: 16ms
    • Viewing angle: 170° (H), 170° (V)
    • Pixel density: 0:1989 mm x 0:1989 mm
    • Support color: 16:7 million colors
    • Contrast ratio: 800:1
    • Luminosity: 250 cd/m²
  • Video:
    • Video input resolution:
      • Up to 1920 x 1200 at 60Hz1920 x 1080 at 60 Hz (DDC2B)
  • Emulation:
    • Keyboard/Mouse: USB
  • Energy consumption
    • Operating temperature:
      • 0ºC to 40ºC
    • Storage temperature:
      • -20ºC to 60ºC
    • Humidity:
      • 0-80% RH, no condensation
  • Physical properties
    • Case
      • Metal
    • Rail type:
      • single rail
    • Weight
      • 11.38Kg (25.07lb)
    • Dimensions (L x W x H)
      • 48:00x58:92x4:40cm
      • 18.9 × 23.2 × 1.73 inches

The kit contains: 1x CL6700 LCD KVM console with standard rack mounting kit, 1x KVM cable (DVI-D, USB, audio; 1, 8 m/6 ft) 1x power cable, 1x firmware update cable: 1x instruction manual
