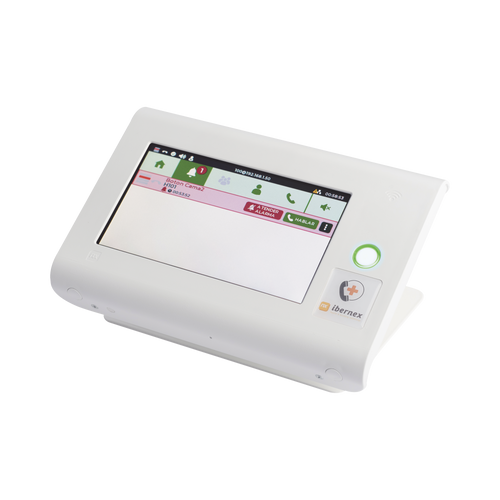

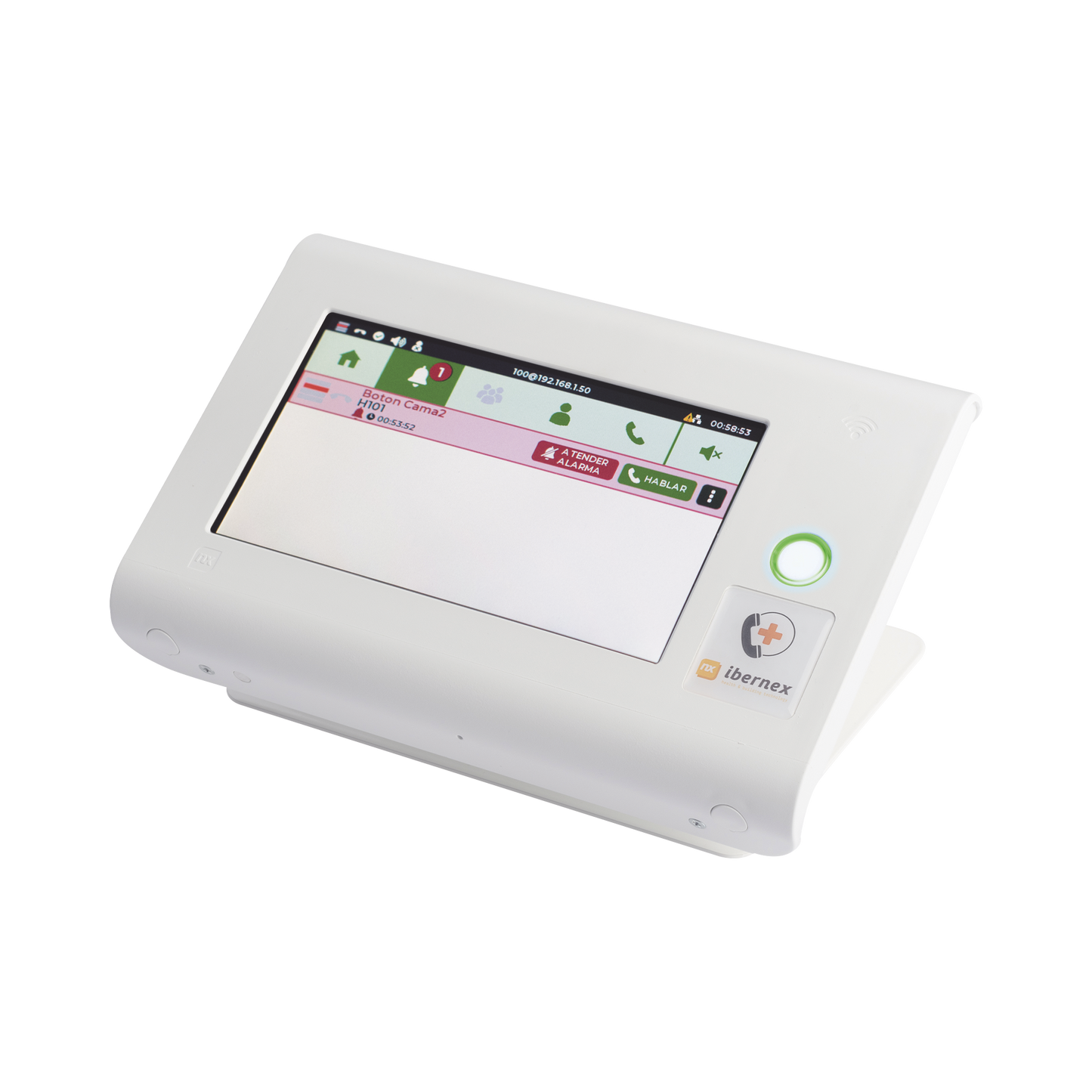

Desktop Console for Nursing Control Station / 7\" Touch Screen / PoE / SIP / RFID / Compatible with NX0019/B, NX1021 and NX0015

  • 0858fac35a86c6d0171e6d7b0c9c4e62
  • 497b57be1419d8ffc957d00a37b96b60
  • c2364fa6f0a734a6096d2da49004c445
  • 13f94e9fded7f96fb933b45b0a0d018b
  • 509261290adcb03c47a732ba1a43e2bf
  • c7289a382ea91435c9018b34628d5f38
1 6
  • FUNCIÓN DE BACKUP DEL SISTEMA
  • ATENCIÓN DIRECTA DE ALARMAS

23 in stock

Modelo: NX1071

Proveedor: IBERNEX

Código SAT: 42191611

Tax included.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details
Main features:
  • 7" color touch screen (can be used with gloves)
  • Integrated 125 KHz RFID reader and speaker
  • SIP VoIP Calls
  • Omnidirectional high sensitivity microphone
Electrical and physical characteristics:
  • 12 Vdc power supply and PoE (IEEE 802.3af)
  • Current: 550 m A at 12 Vdc (7.6 W PoE)
  • 2 Ethernet ports (Port 1 Eth + PoE)
  • Digital echo cancellation
  • Review the complete sheet
Featured Features:

The NX1071 console is used to receive alarms from IP room terminals both in stand-alone operation and with HELPNEX software.

The 7" color touch screen shows the status, type and origin of the alarms, the presence of personnel in the rooms and the status of the connected terminals and the rest of the installation's consoles. Depending on the configuration You can establish audio communication and attend to alarms remotely.

Note: Requires certification for installation and to request technical support.

IP connection topology

All room terminals, nurse or doctor consoles, They connect via Ethernet network to the database.

Direct encoding

Optimize time

It allows alarms to be coded directly on the terminal without having to go to the software or a nursing console, optimizing transfer and operational times.

Assistance tasks

Create and view

Care or cleaning tasks can be viewed from the terminal simply by presenting the card and tasks can also be created directly.

Pending alarms

View pending alarms in a row

You can view pending alarms to be coded in a simple way.

Backup function

In case of server failure

The console performs the important function of event backup in case the server is not available on the network for some reason.

Presences in other rooms

Quick view

When someone presents their card at any terminal it is possible to know which room they are in in real time.

Calls between rooms

Make a direct call

It is possible to dial other rooms or nurse consoles directly or using the personalized agenda.

Answer with a single button

Call is taken quickly

Upon receiving the alarm event, you can answer the call simply by pressing the physical button and thus ask the patient the emergency quickly and without complications.

Presence with card

Contactless identification

The nurse or doctor simply presents their card at the terminal to register presence and in turn access a personalized menu.

Cleaning staff

Also useful

Cleaning staff will also be able to view pending cleaning tasks, visualize presences in other rooms, make calls, etc

Custom logo

In sleep or screen saver mode

The company logo or image can be uploaded to be displayed directly on the terminal.

Latex gloves

Interaction without direct contact

The touch screen also responds when wearing latex gloves

Doctors console

Alternative use

They can be programmed for medical use so that only medical alarms will reach the console.
