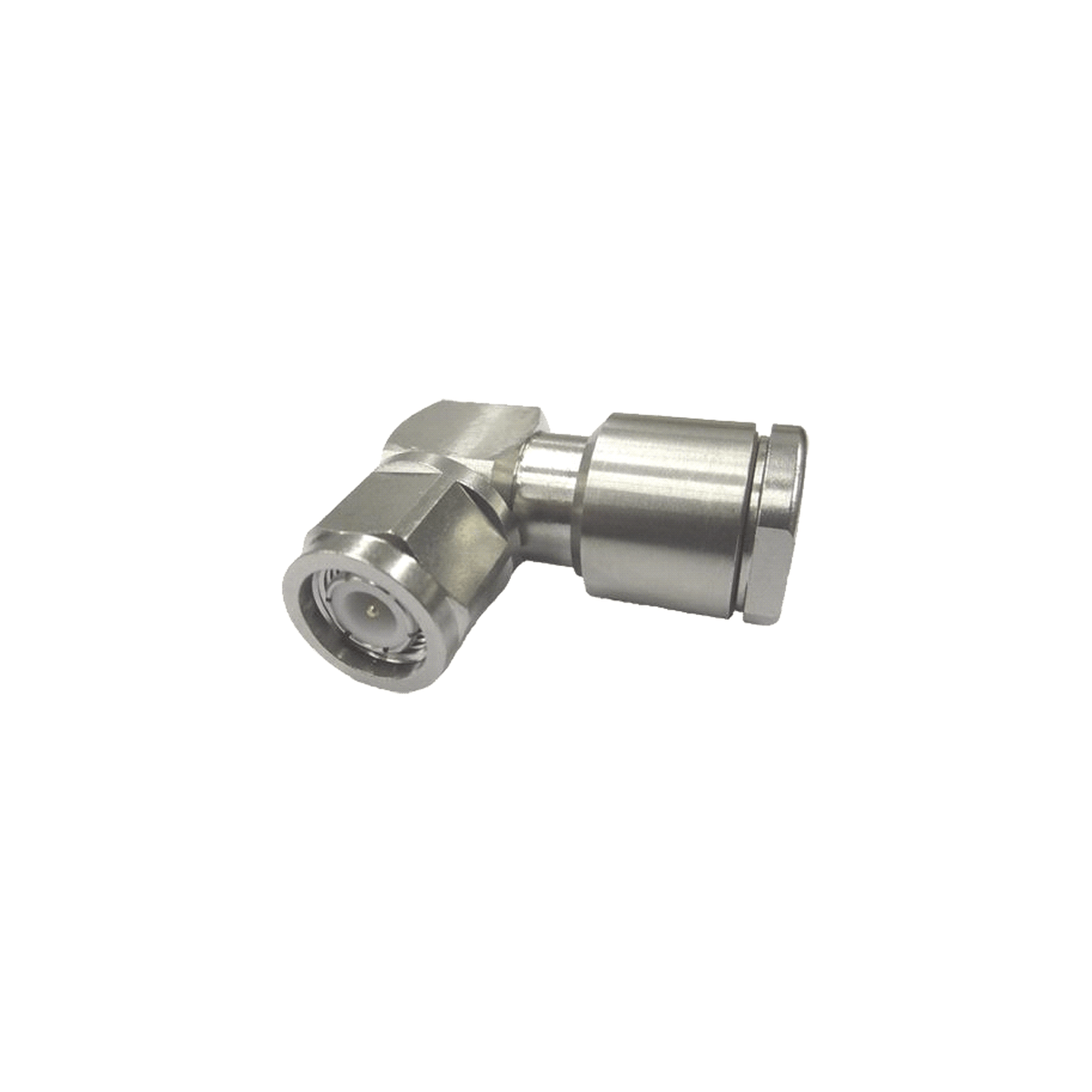

Angled Male TNC Connector for CNT-400, RG-8 cable

  • c76f4142fa077565ee6632479263ca3d
1 1

Out of stock

Modelo: 400BPTR-C

Proveedor: ANDREW / COMMSCOPE

Código SAT: 39121433

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details
General Specifications
Interface TNC Male
Body Style Right angle
Brand CNT®
Electrical Specifications
Operating Frequency Band 0 – 6000 MHz
Cable Impedance 50 ohm
Connector Impedance 50 ohm
RF Operating Voltage: maximum (vrms) 500.00 V
dc Test Voltage 1500 V
Outer Contact Resistance, maximum 0.40 mOhm
Inner Contact Resistance, maximum 1.50 mOhm
Insulation Resistance, minimum 5000 MOhm
Peak Power, maximum 5.00 kW
Insertion Loss, typical 0.05 dB
