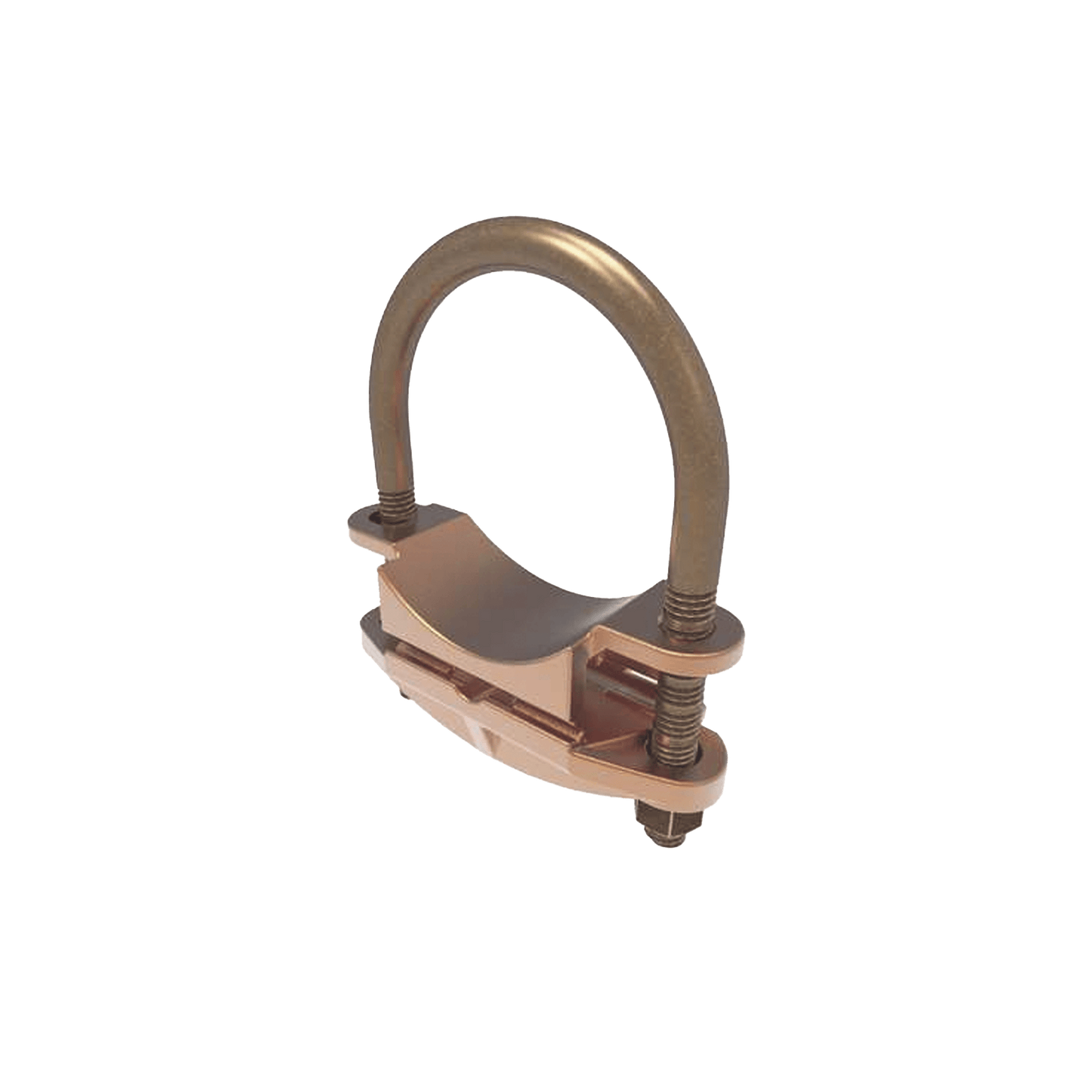

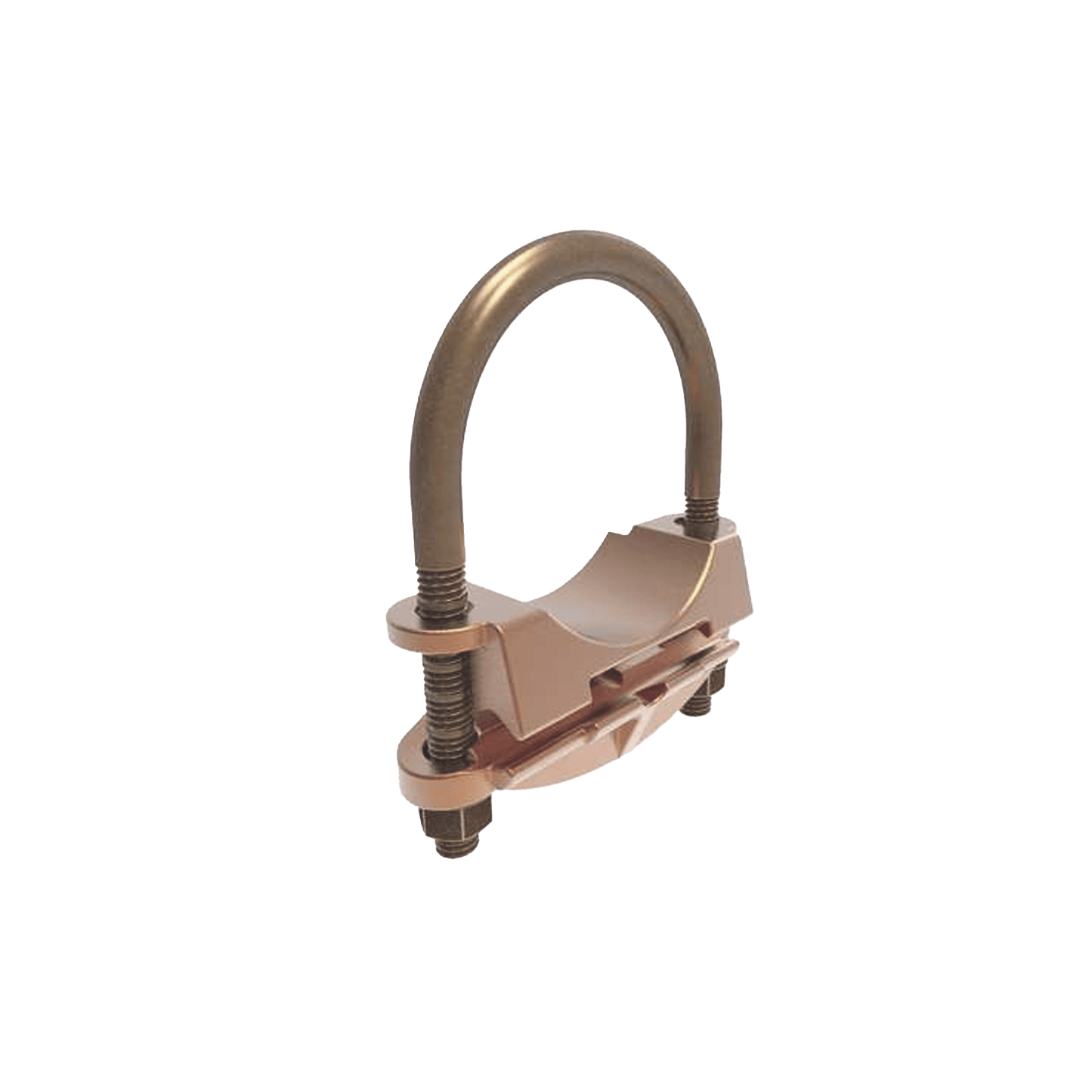

Mechanical Connector for Cable Gauge 4 to 2/0 AWG / Parallel or 90° Degrees to 1 1/4\" Tube or 1 3/8\" - 1 1/2\" Rod.

  • e1073b27dadbed741add0ca4e34780ba
  • d24db83c12a96ec7cf6ad96fcf84779e
1 2
  • Torque de instalación recomendado: 240 lb-in
  • Material: cobre galvanizado, resistente a la corrosión
  • Compatible con conductor 4 - 2/0 AWG
  • Cumple estándar UL467 para seguridad
  • Recubrimiento: sumergido en abrillantador para protección

Out of stock

Modelo: HUB-GAR-1626

Proveedor: HUBBELL BURNDY

Código SAT: 39121400

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Specifications:

Application To join a variety of cables, parallel or at right angles to rods or tubes, direct burial cables and fence posts.
Recommended installation torque (lb-in) 240 lb-in
RoHS EU indicator Yeah
U screw type 204
Material Copper
Galvanized No
Coating type Immersed in rinse aid
Height 3.50in
Total Length mm 40mm
Total Length in 1.56in
External diameter 1.66in
Broad 3.00 in (76.2 mm)
Driver size 4 - 2/0 AWG
Driver Type Solid and stranded CU cable
Pipe size 1 1/4"
rod size 1 3/8" - 1 1/2"
UL standard UL467
