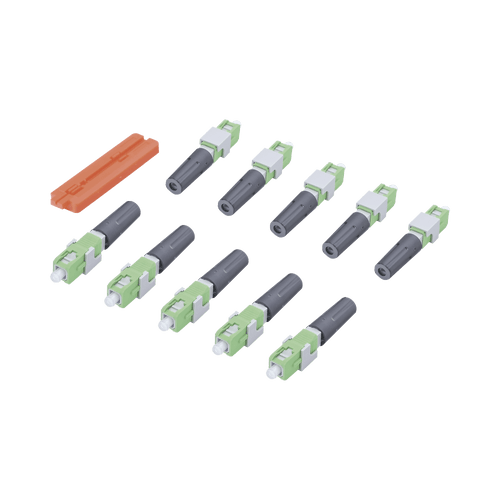

SC/APC Pre-polished 3mm Mono-mode Mechanical Connector (Bag with 10 PIECES)

  • 87618966a0f8ab6ae0483d3f92e7f6cd
  • 184ec90e9c406912458d77921318d190
  • 330a673e05d8070eaae5e72a64d044b3
  • f2b60ec7b85df82967663dac30def39d
1 4
  • Less than one minute completion time
  • Low insertion loss: typically ≤ 0.2dB
  • Return loss ≥ 55dB (APC)
  • Up to five reassembly attempts

200 in stock

Modelo: SCAPCMCS10

Proveedor: TEMPO

Código SAT: 43223310

Tax included.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

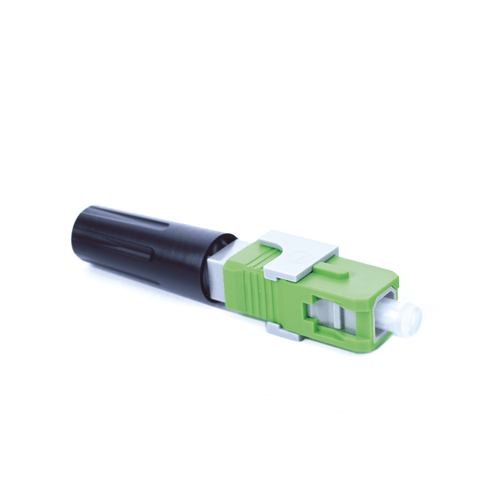

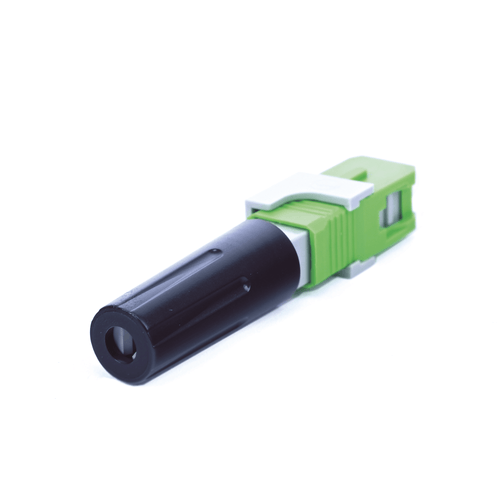

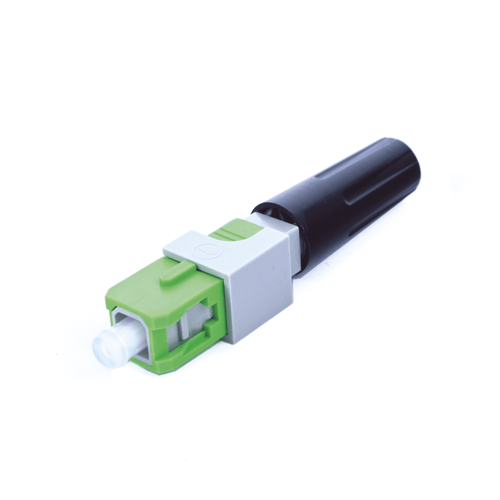

The 3mm SC/APC mechanical connector is designed for fast and easy field termination of 3mm clad singlemode fiber optic cables without polishing or epoxy. The mechanical connector is made with high quality, precision zirconia ferrules and provides a low insertion loss and reflection connection.

Specs:

  • Connector Type: SC/APC
  • For Tight Buffer fiber (900 µm) or Drop fiber
  • Refillable (up to 5 times)
  • Insertion loss:
    • Maximo ≤ 0.4 dB
    • Typical ≤ 0.2 dB
  • Return loss:
    • UPC ≥ 45 dB
    • APC ≥ 55 dB
  • Operating temperature: -40 to 85ºC
  • Includes holder for faster and easier connection

Approved with:

  • Telmex
  • Total Play
  • Megacable
  • IZZI
