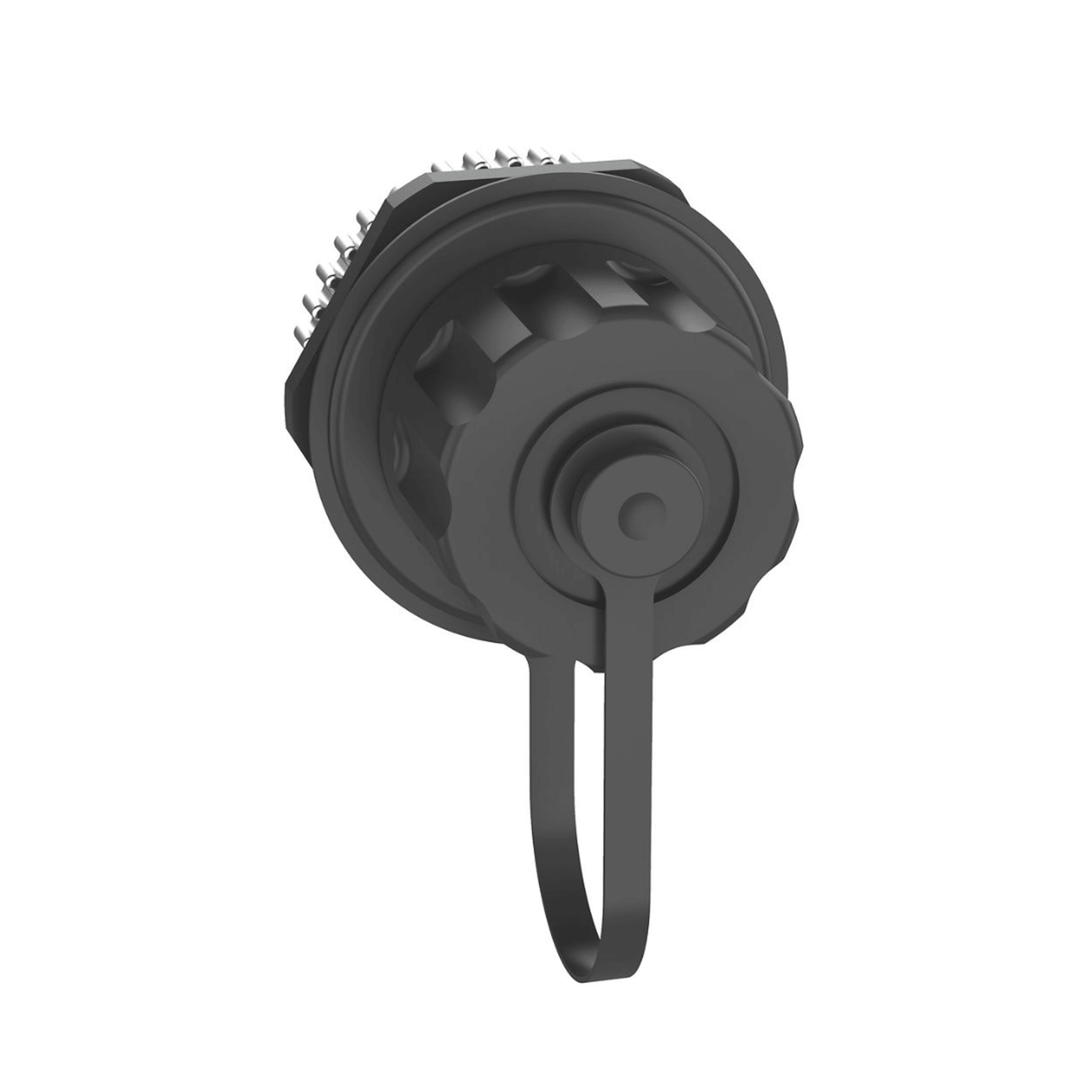

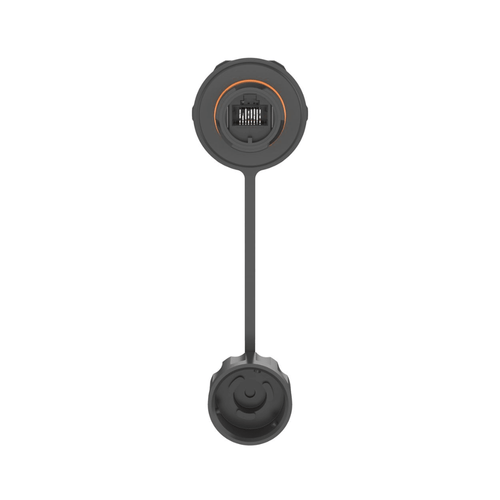

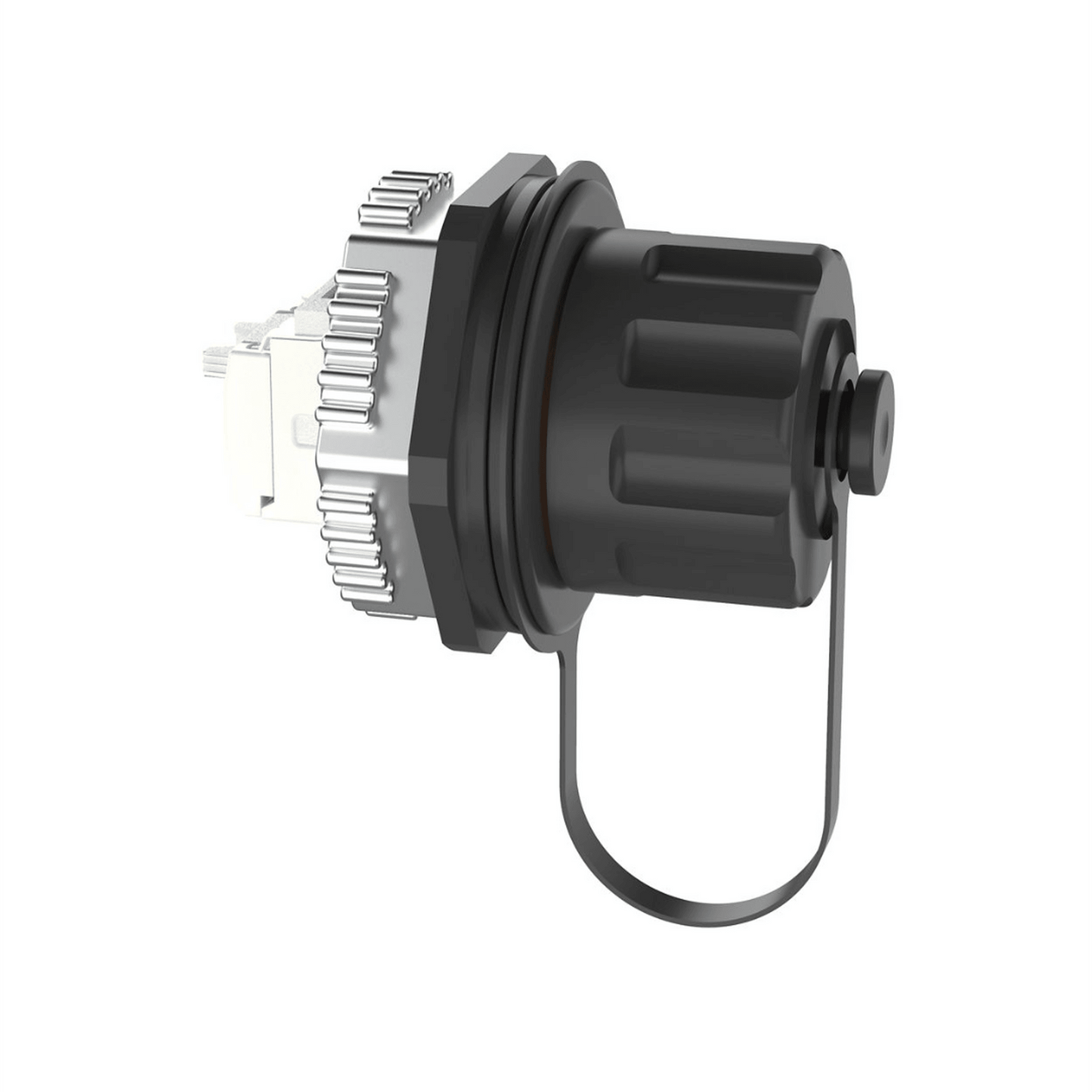

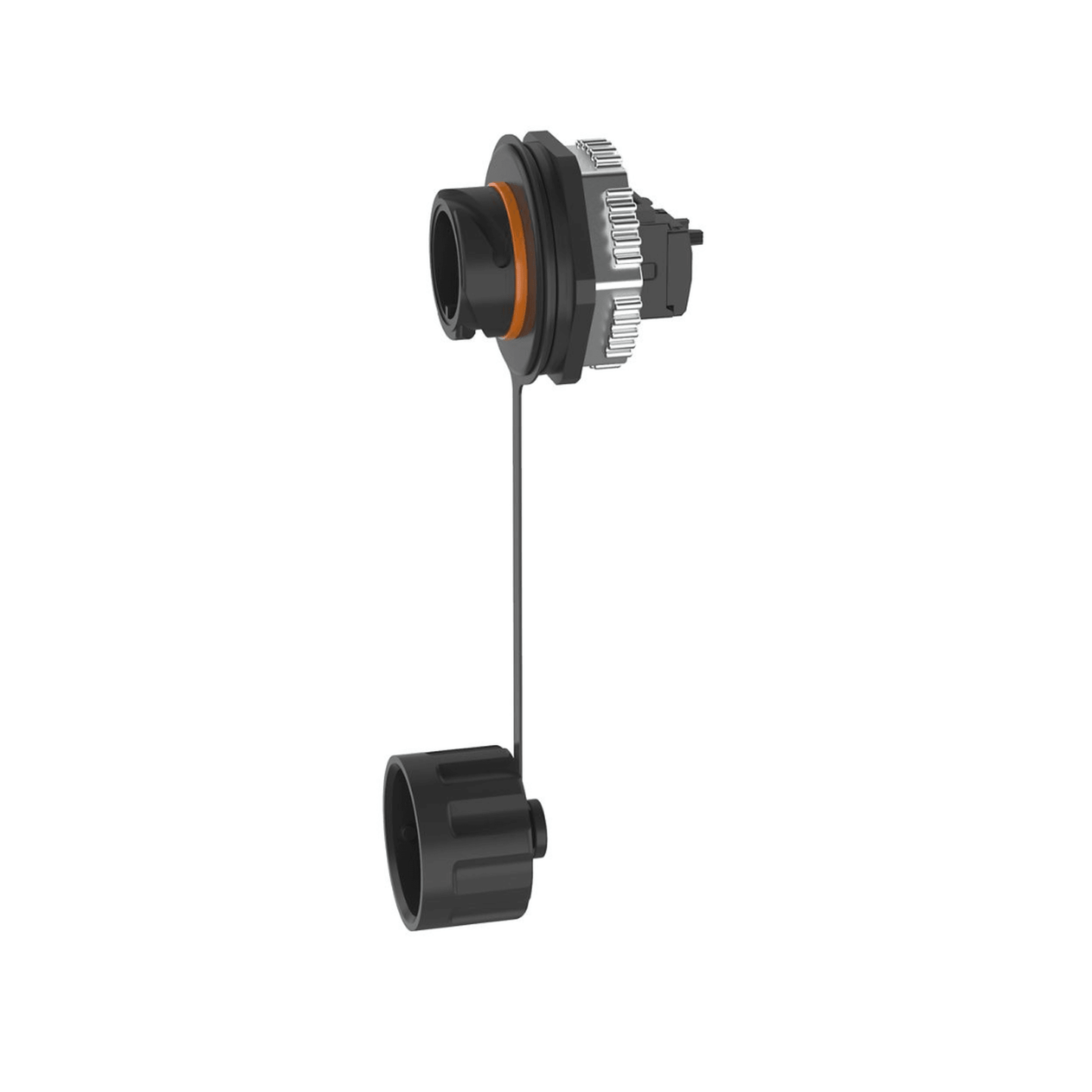

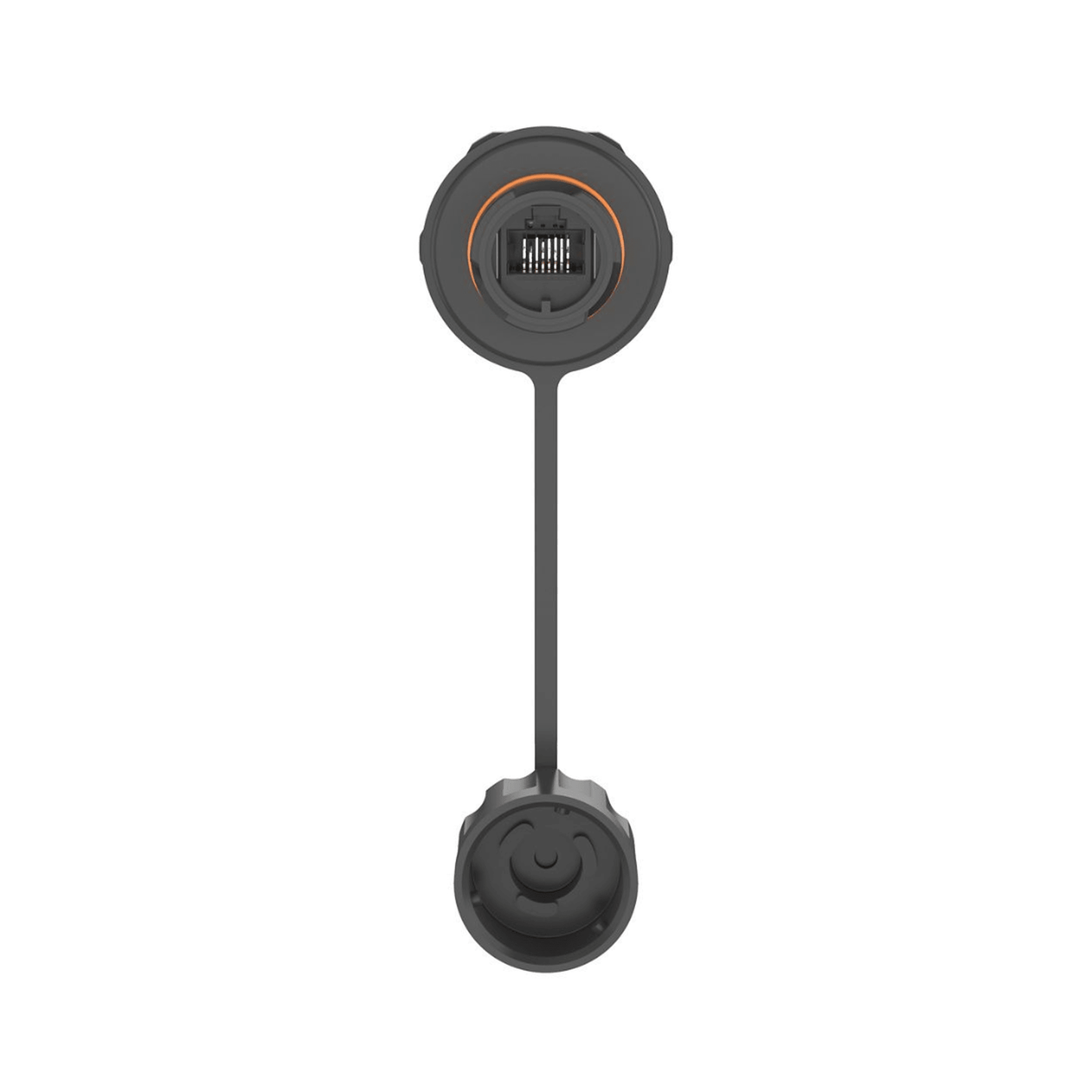

TG Style Industrial Use RJ45 Jack Connector, Category 6, With Protective Cap, IP67 Protection

  • c3c1a0188e81ade50611fc47b280cd4e
  • 7861fde6d4916f8bf5b2a23244ace0ac
  • 2fbd931e5a85f5613f21ea5ad34ed083
  • fcb8705266c8c60a831df4d59c1f58e7
1 4
  • Clasificación IP67 contra polvo e inmersión temporal
  • Conector de 8 posiciones con tapa protectora
  • Cable de par trenzado de 4 pares, 24 AWG
  • Cumple normas ANSI/TIA568.2-D categoría 6A
  • Contactos chapados con 50 micropulgadas de oro

186 in stock

Modelo: IAEBH6

Proveedor: PANDUIT

Código SAT: 39121462

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

The IndustrialNet™ Cat6 8-position industrial connector, with protective cap is ideal for manufacturing environments. Provides an IP67 rated seal that provides protection against dust and temporary water immersion. Terminates into a 4-pair twisted pair cable, 24 AWG, 100 ohms and does not require a piercing tool.

Technical specifications:

  • Performance: Exceeds channel and component requirements of ANSI/TIA568.2-D Category 6A and ISO11801 Class EA.
  • Electrical/Mechanical Performance: Meets all ODVA Ethernet/IP electrical and mechanical performance requirements^
  • FCC and ANSI/TIA Compliance: Complies with ANSI/TIA-1096-A; Contacts plated with 50 microinches of gold for superior performance
  • IEC Compliance: Meets IEC 60603-7 specifications
  • IP Compliance: IP67 rating for protection against dust and temporary liquid immersion
  • NEMA/UL Compliance: UL Type 12 Rated 6/6P, 4X
