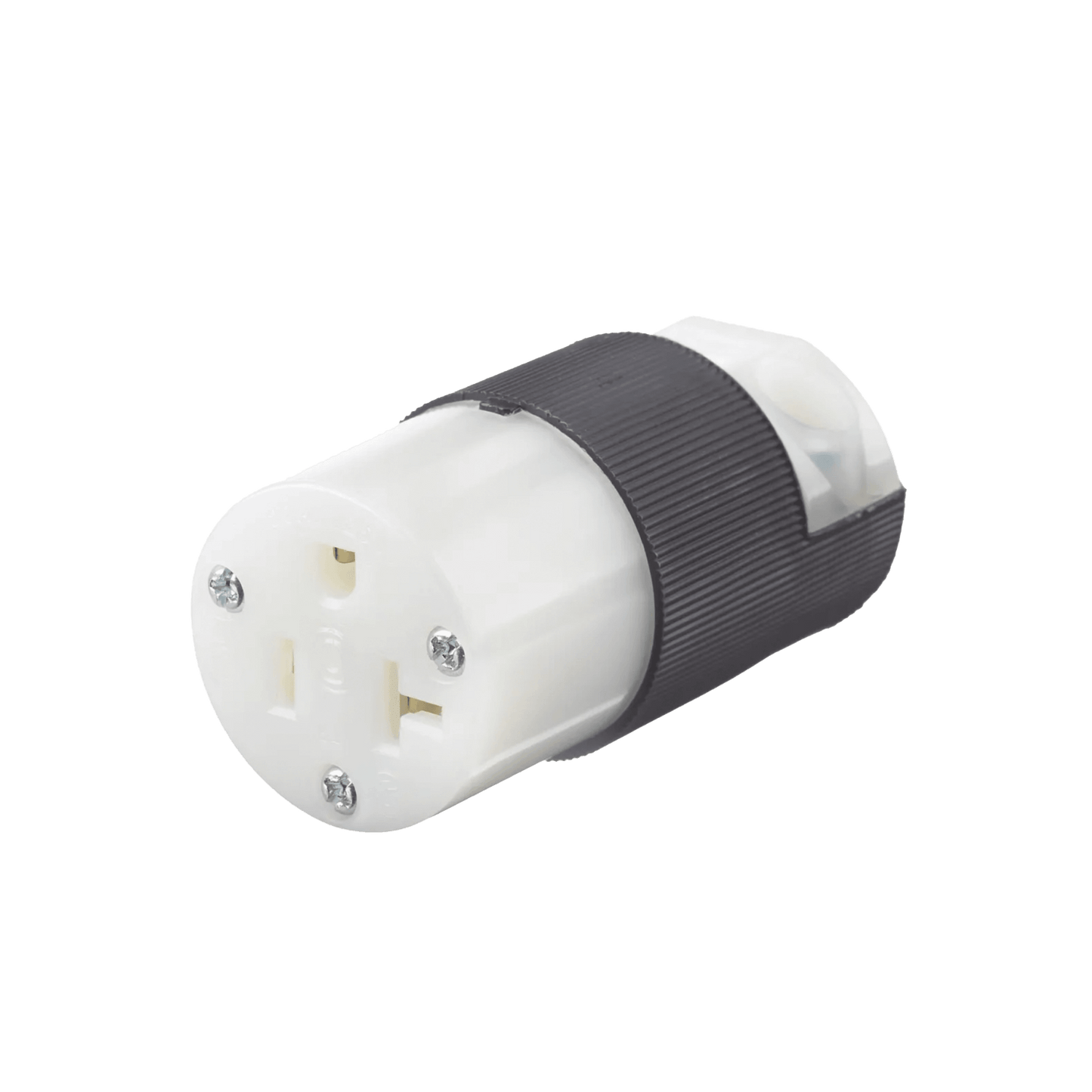

Straight Entry Connector / 20 A 125V / 2 Poles 3 Wires / Nema 5-20 R / Industrial-Commercial Grade / Black-White Color.

  • f7432f8e809777e3453ef0c2e5946816
1 1

15 in stock

Modelo: HUB-HBL5369C

Proveedor: HUBBELL

Código SAT: 39121421

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Specifications:

Degree Industrial/Commercial
Color black and white
Power - max 1
Material Polycarbonate
Number of poles 2 poles
Operating temperature Maximum continuous 75 °C and minimum -40 °C
Performance

Electrical - Current interruption - Certified for current interruption at full rated current

Electrical - Dielectric voltage - Withstands a minimum of 2000 V

Environmental - Flammability - UL 94 HB or better

Environmental - IP Suitability - IP20

Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (Non-Impact)

Mechanical - Terminal Housing - #18-10 AWG. Single copper cable with bracket

Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Style Standard
Dimensions 2.78 in x 1.41 in, 1.53in
Height 1.53 in (38.86 mm)
Long 2.78 in (70.61 mm)
Broad 1.41 in (35.81 mm)
Weight 0.15 lb (0.068 kg)
Amperage range 20 A
Dielectric strength Supports 2000V minimum
Phase Single phase
Voltage range 125V
Number of threads 3
Wire size #18 AWG to #10 AWG
Standards
  • CSA Certification for C22.2 No. 42 File 280
  • Fed. Specifications. W-C596G
  • NEMA® WD-6 compliant
  • UL Listed for UL498 E1706 File
Nema 5 - 20 R
