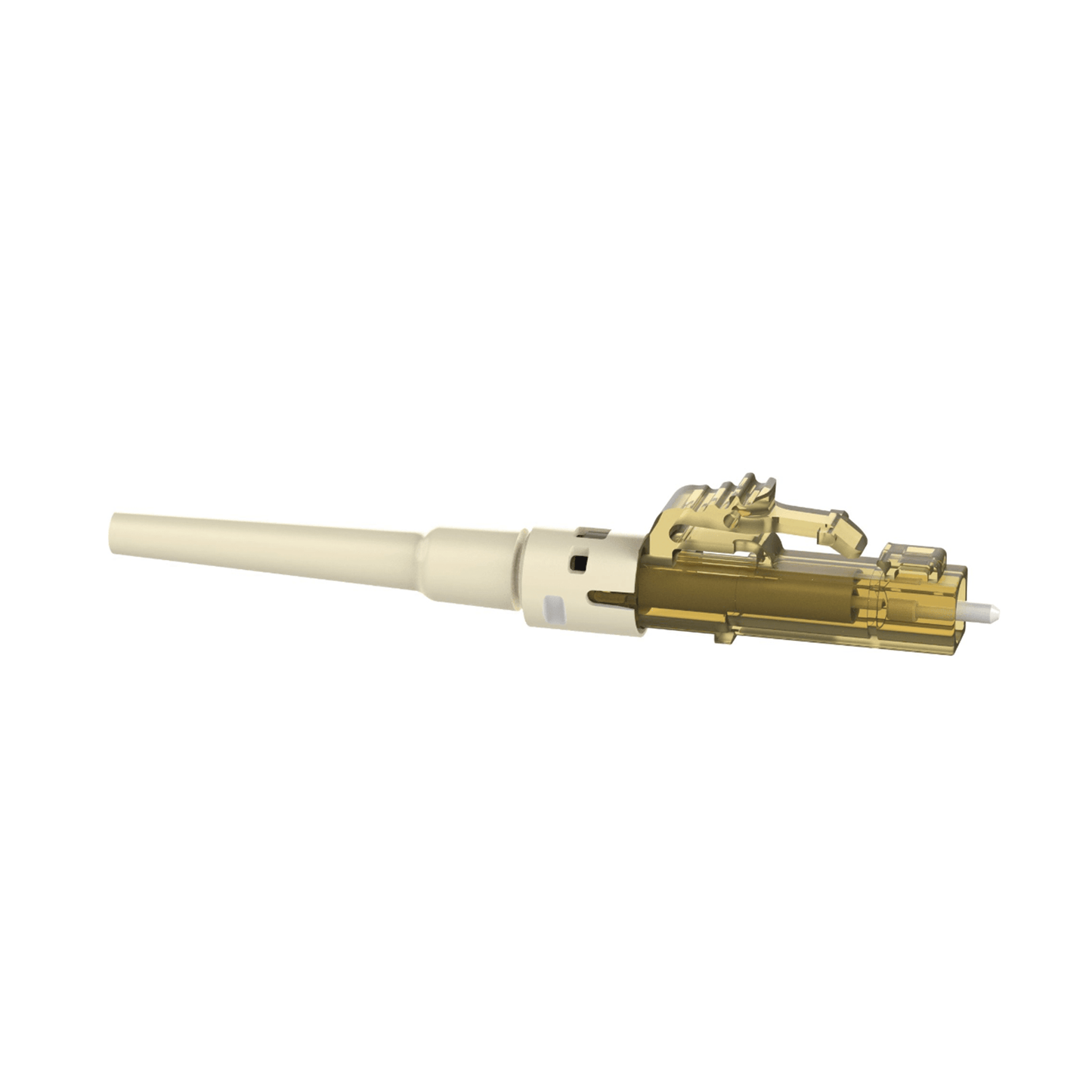

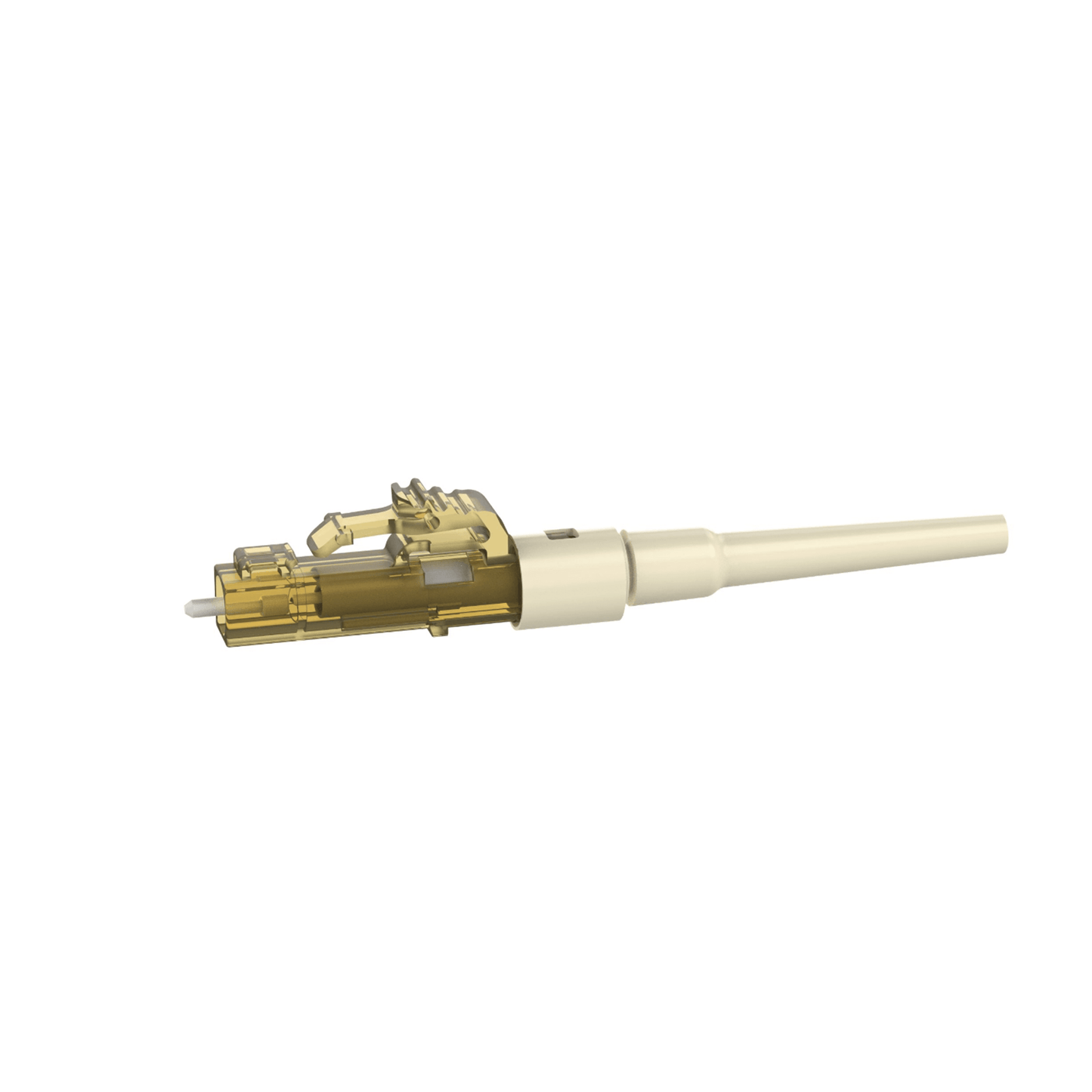

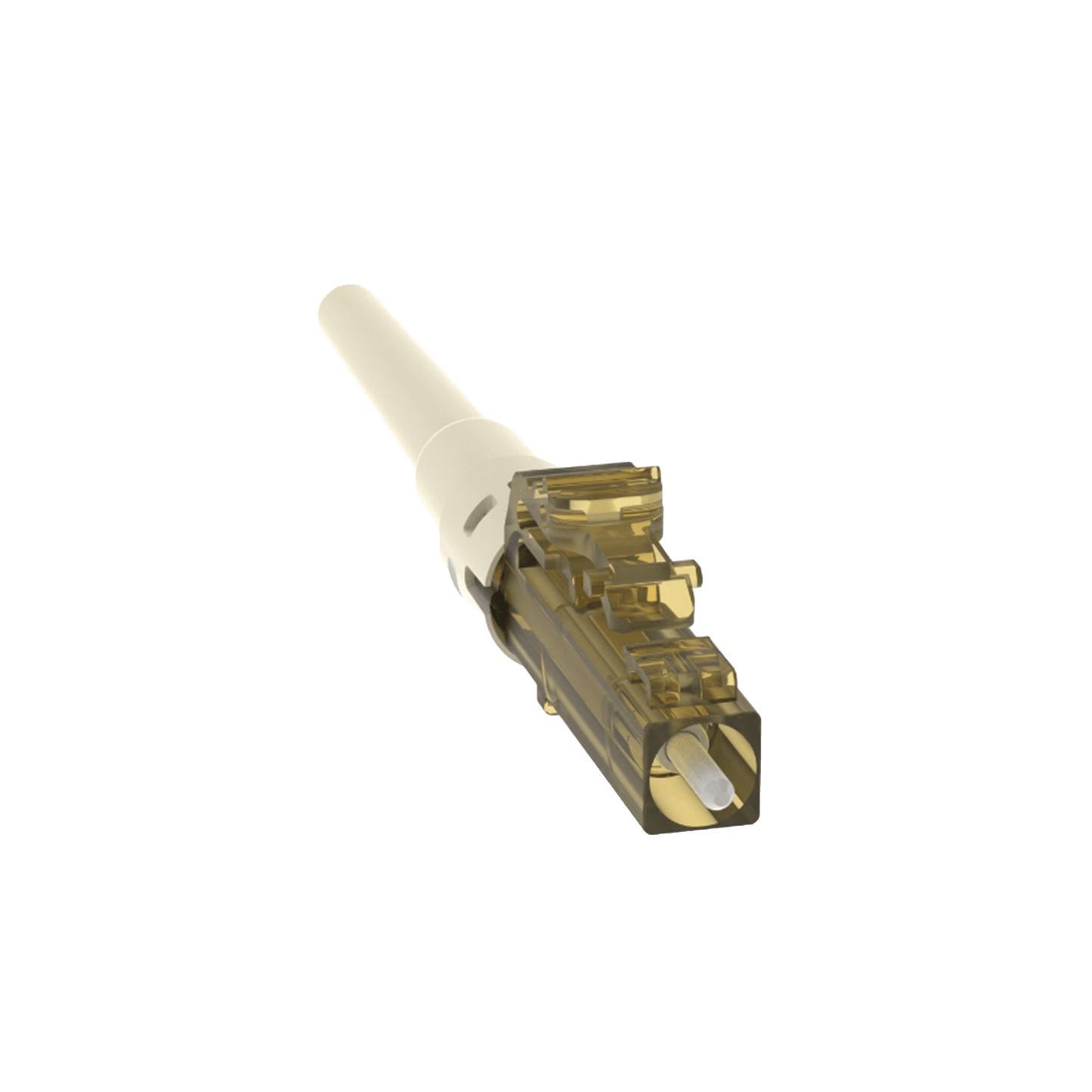

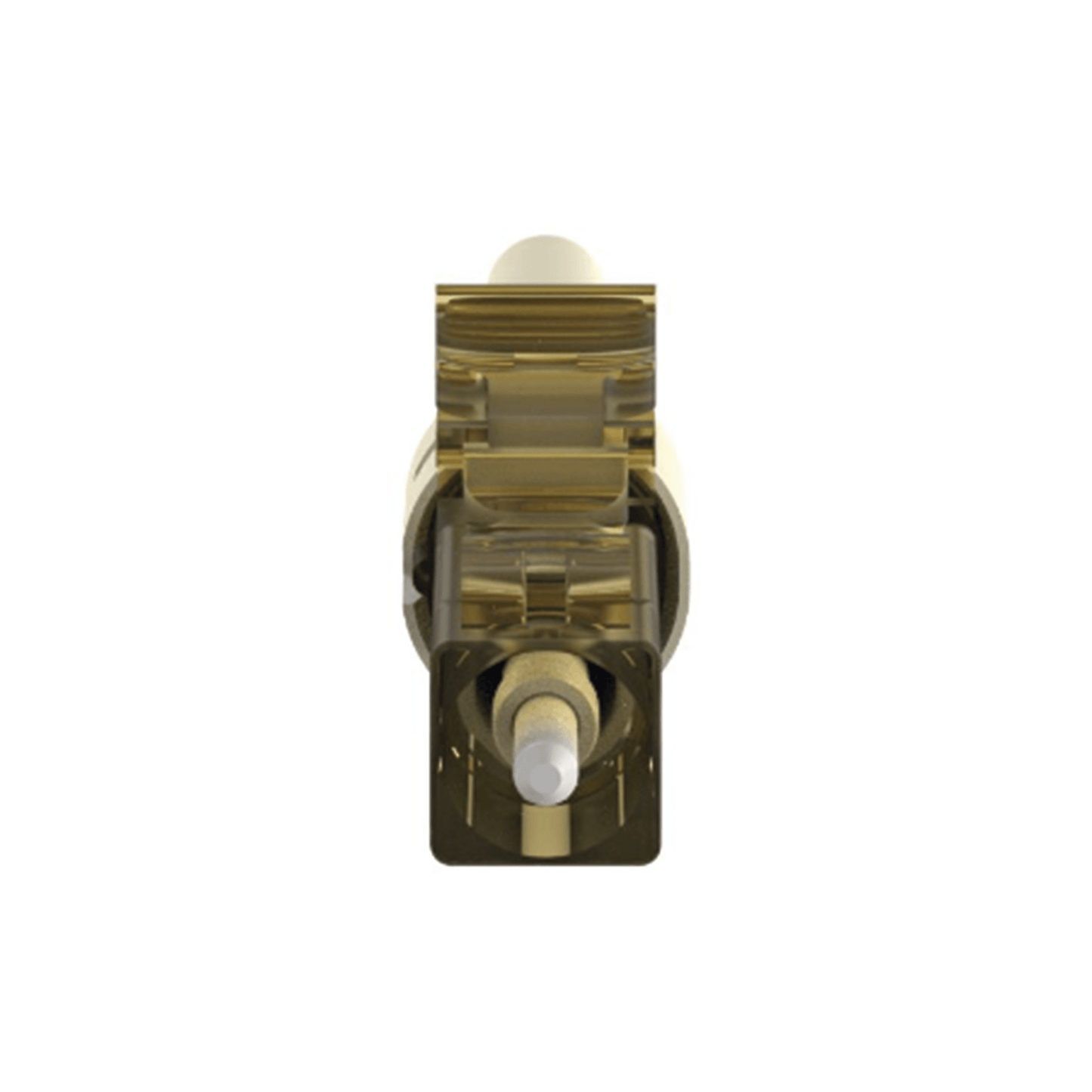

LC Simplex OptiCam Fiber Optic Connector, Multimode 62/125 OM1, Pre-polished, Ivory Color

  • 80df5bdf0f55350ba76096a9b97eb034
  • 8469aebd5257132eb77c018b27b94b81
  • 427a56eb69c4455a4cc6acbfbbbbaeeb
  • cbe48bce6bed8220043977247d952da6
1 4
  • Allows up to two re-terminations to achieve optimal results
  • Ensures fast, consistent and optimal completions
  • Insertion Loss: 0.3dB average (multimode and singlemode)

Out of stock

Modelo: FLCSMC6EIY

Proveedor: PANDUIT

Código SAT: 43223310

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Pre-polished LC small form factor (SFF) back-lock connectors comply with TIA/EIA-604 FOCIS-10 and contain a factory-terminated fiber, eliminating polish and adhesive in the field. Pre-polished LC connectors have an average insertion loss of 0.3dB per mated pair for multimode and singlemode fiber. Pre-polished LC connectors must captivate the fiber and buffer in a single action, allowing up to two terminations without degradation in performance.

Technical specifications:

  • Compatible with TIA/EIA-604 FOCIS-10; exceeds requirements of TIA/EIA-568-B.3
  • Fiber Compatibility: 10Gig™ 50/125μm optimized for OM3/OM4 laser
  • Cable type: 900μm single cable (Tight Buffer)
  • Ferrule type: zirconia ceramic with pre-polished fiber piece
  • Insertion Loss: 0.3dB average (multimode and singlemode)
  • Return loss: > 20dB (multimode) > 26dB (10Gig™ multimode) > 50dB (single mode)
