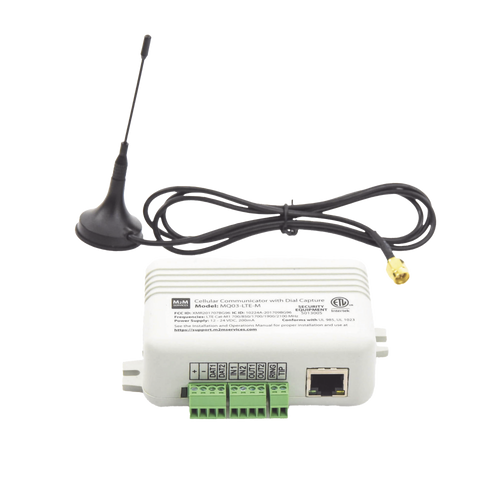

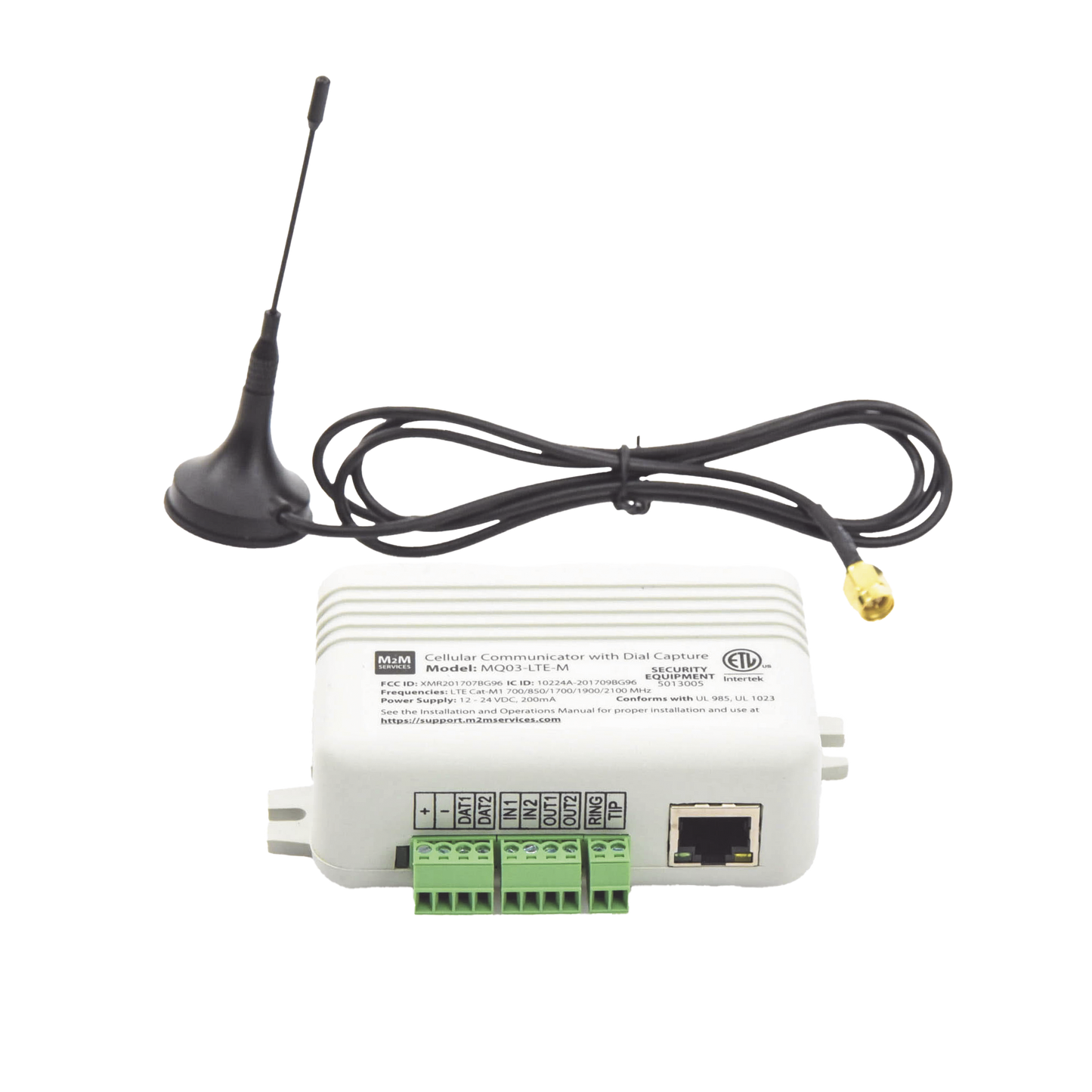

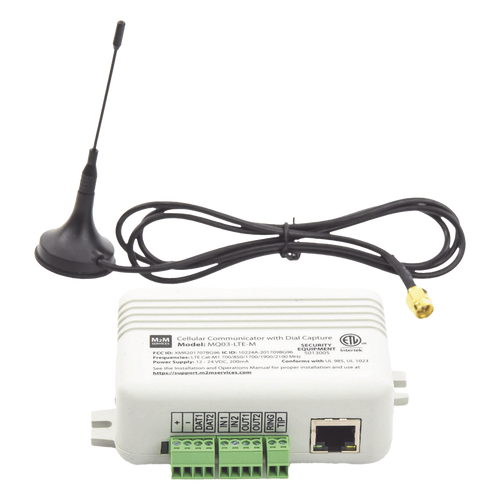

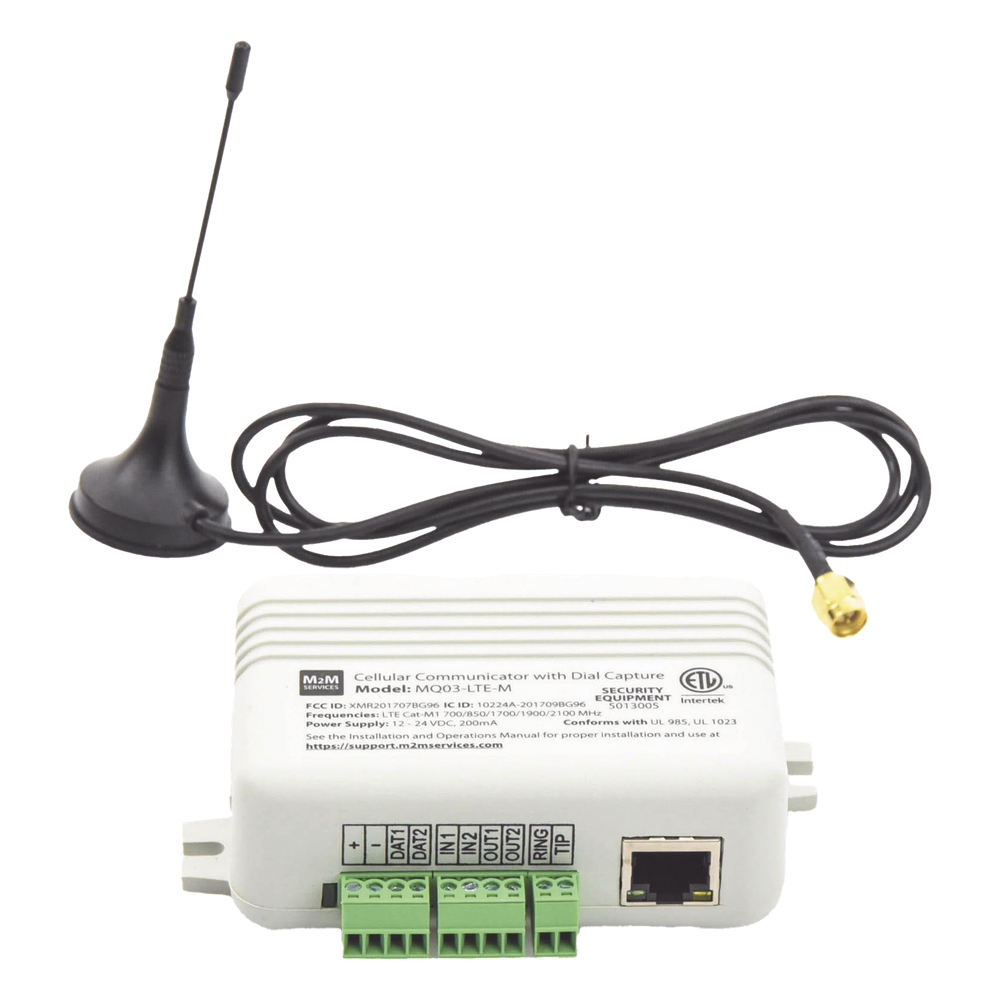

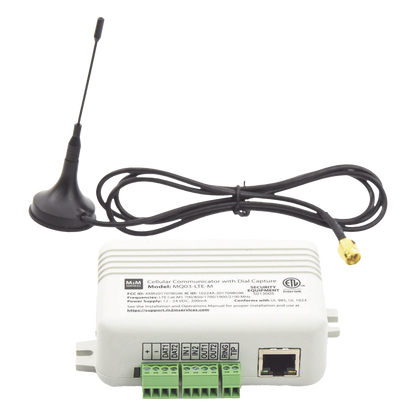

DUAL ETHERNET Communicator + 4GLTEM/5G / 2 INPUTS AND 2 OUTPUTS / Remote Programming / 1 Year FREE service

  • 25f905b9a87d8238e7e2222abcfe836f
  • 25f905b9a87d8238e7e2222abcfe836f
1 2
  • Output activation (Pulsing or Permanent)
  • Easy Integration to barriers, doors, motors, sensors, etc.
  • UNIVERSAL Alarm Communicator
  • Loading and Unloading by TIP and RING
  • 1 YEAR FREE GSM SERVICE

Low stock: 6 left

Modelo: MQ03-LTE-M-LAN

Proveedor: M2M SERVICES

Código SAT: 46171604

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

DUAL COMMUNICATION Universal Alarm Communicator

Unique Multi-Brand Communicator on the market compatible with 99% of alarm panels for sending events and being able to arm and disarm, all from a single application (RCONTROL).

It has 2 programmable Trigger outputs and the possibility of remote programming on Resideo and DSC panels *

M2M TEAM CONFIGURATIONS by CLICKING HERE

...

Compatible Alarm Communicator and Upload / Download WITHOUT EXTRA ACCESSORIES

Main

  • Supports REMOTE PROGRAMMING on RESIDEO and DSC panels
  • Supports PARTITIONS *
  • Zone Status and Bypass * View up to 64 Zones in the RControl APP
  • Full / Partial Arming* and Disarming from the APP.
  • Identification of users and possibility of labeling areas. (Up to 100 users)
  • Includes 1 year of 4G LTE / 5G Service
  • Additional year acquiring VOUCHERLTEM
  • NOTE : If the voucher is not renewed within the corresponding month, The team will become suspended and a REACTIVAM2M + VOUCHERLTEM will have to be purchased
...

Remote Activation

Application and Platform

  • Ready to activate or deactivate outputs (By FREE Android / iOS Application).
  • Sensor Monitoring in Real Time.
  • User ID identification of who activated/deactivated.
  • Privileges by users, Total Administrative Control.
  • FREE administration platform (request engineering credentials), https://m2mservices.com/Admin/
  • Remote activation of engines, you will barreras, doors, water pumps, energizers, etc
  • LOGO Direct in the application for FREE!
...

Small and Light

Technical specifications

  • Multiband CAT-M1
  • 10/100 LAN port
  • 2 Digital Inputs (Contact-ID)
  • 2 Digital Outputs (300 mA each Output)
  • Power supply +12 to +24 Vdc
  • Antenna: SMA, 50 ohms
  • Dimensions: 6.3 x 9 x 3.2 cm
  • Weight without Antenna: 85 gr

Avoid Unnecessary Transfers with Remote Programming

Remote Programming (Honeywell ® and DSC Compatible)

  • Make configurations on the panel without having to go to the place where it is installed.
  • The technician only replaces or installs equipment but the configuration is done remotely from the Central (greater security).

For remote programming you only need:

  • SW-MODEM-M2M : Annuity for unlimited connections to alarm panels.

IMPORTANT , Only the following alarm panels are compatible to use the Data Bus connection: with which you can see partitions, zones and perform partial arming and zone bypass.

NOTE: The total number of zones to display in the RControl app is 64

For the rest of the panels, the connection to the key zone (KEY SWITCH) can be used to carry out remote arming/disarming.

and
and

NOTE: These devices work on cellular networks so their operation depends on the stability of these services.

*NOTE: These devices purchased in any "asterisk" category may vary the months of service
