TELEWAVE combiner in 19\" rack, 148-174 MHz, 6 Channels, 105 kHz Sep. 125 Watt, 10\" Diam, N Females.

  • f789d7d90424ed7a47dc515aa7c3bc2b
1 1

Out of stock

Modelo: M101-150-6TRM19

Proveedor: TELEWAVE, INC

Código SAT: 32121800

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

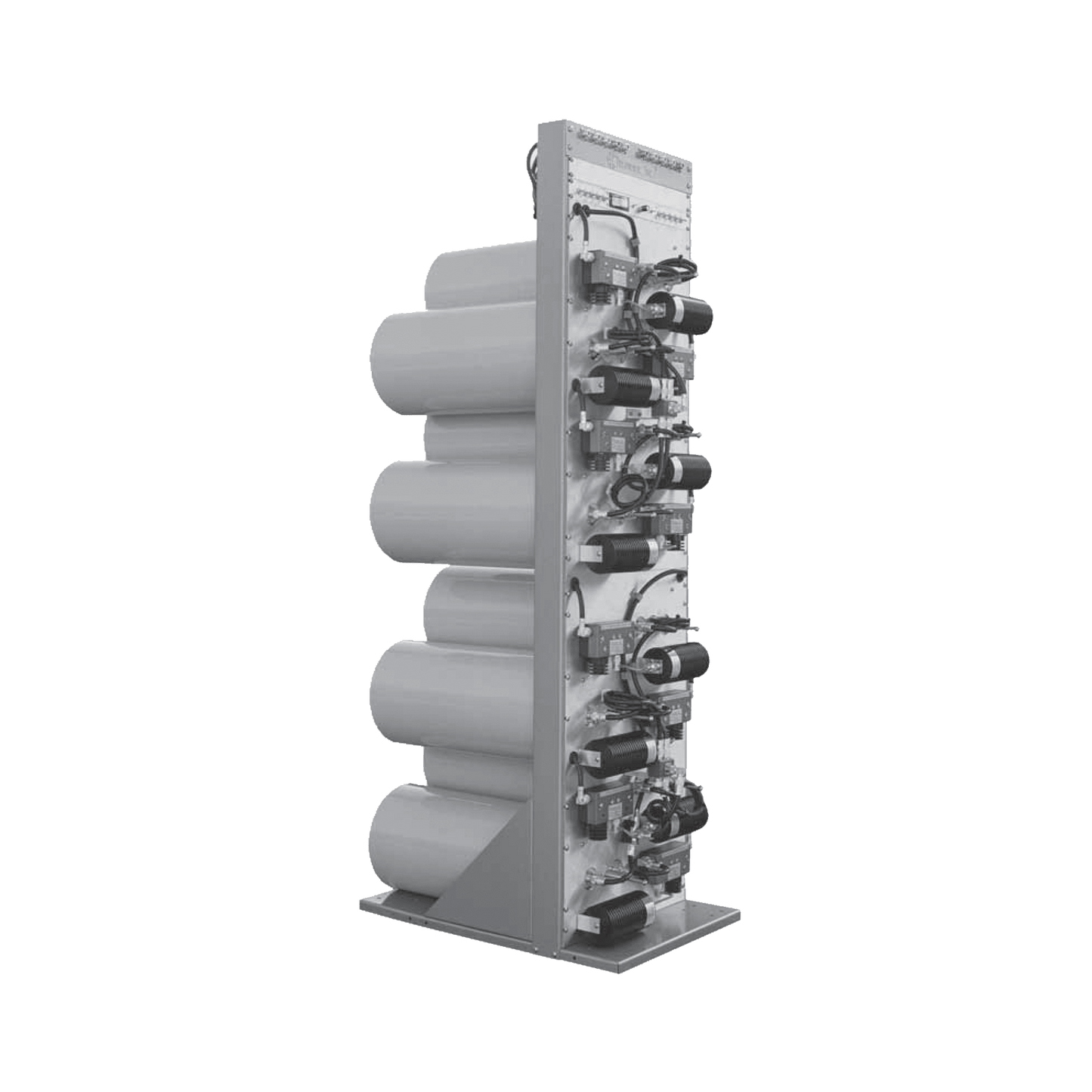

TELEWAVE combiner for 148-174 MHz, 6 Channels, mounted in 19" rack.
  • Frequency range: 148-174 MHz.
  • Number of channels: 6
  • Panel wattmeter for power monitoring for input/output.
  • 19" rack mount with 1/4 wave cavities.
  • Insertion loss (max.): 3.8 dB.
  • Input power: 125 Watt.
  • Isolation between TX-TX: 75 dB
  • Antenna-TX Isolation: 55 dB.
  • TX-TX separation (min.): 105 kHz.
  • Loads: 60 W for the second stage of the isolator (100 W optional).
  • Connectors: N Female (6) EIA 19" rack.
*Ask for Delivery Time.
