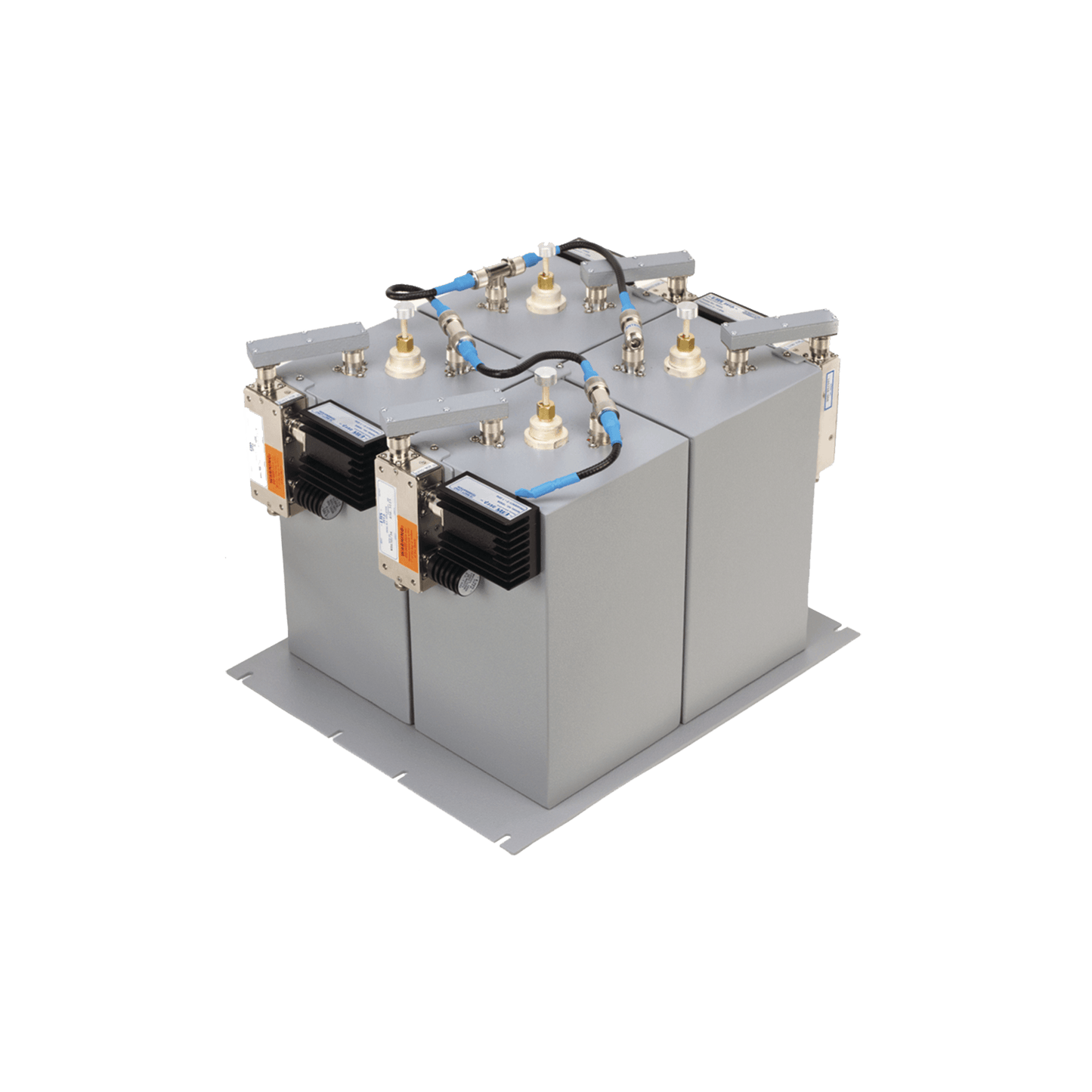

Combiner for 300-650 MHz, 4 Channels, 50 Watt, N Female Connector, Simple Circulator.

  • 32fb453ac97f76476ff3933fabb8caed
1 1

Out of stock

Modelo: W6544-1/7C

Proveedor: EMR CORPORATION

Código SAT: 32121800

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details


4 Channel Combiner, 300-650 MHz, 50 Watt, N Females.

  • Frequency range: 300-650 MHz.
  • Number of Channels : 4.
  • Input Power (Max): 50 Watt per Channel.
  • Separation Frequency (Min.): 300 KHz.
  • Insertion Loss (Max.): 2.5 dB.
  • Insertion Loss (Min.): 1.9 dB.
  • Tx/Tx Isolation (Min./Typical): 40/45 dB
  • Ant/Tx Isolation (Min./Typical): 30/35 dB
  • Impedance: 50 Ohm.
  • VSWR Input / Output (Max.): 1.1:1 / 1.25:1
  • Isolation: Simple.
  • Temperature Range: -30 ºC to +60 ºC
  • Cavity Dimension (Width x Depth): 178 x 178 mm.
  • Finished Dimension (Height x Width x Depth): 401 x 483 x 483 mm.
  • Connectors: N Female.
  • Finish: EMR Gray.
  • Shipping Weight: 26.8 kg.

*Ask for Delivery Time.
