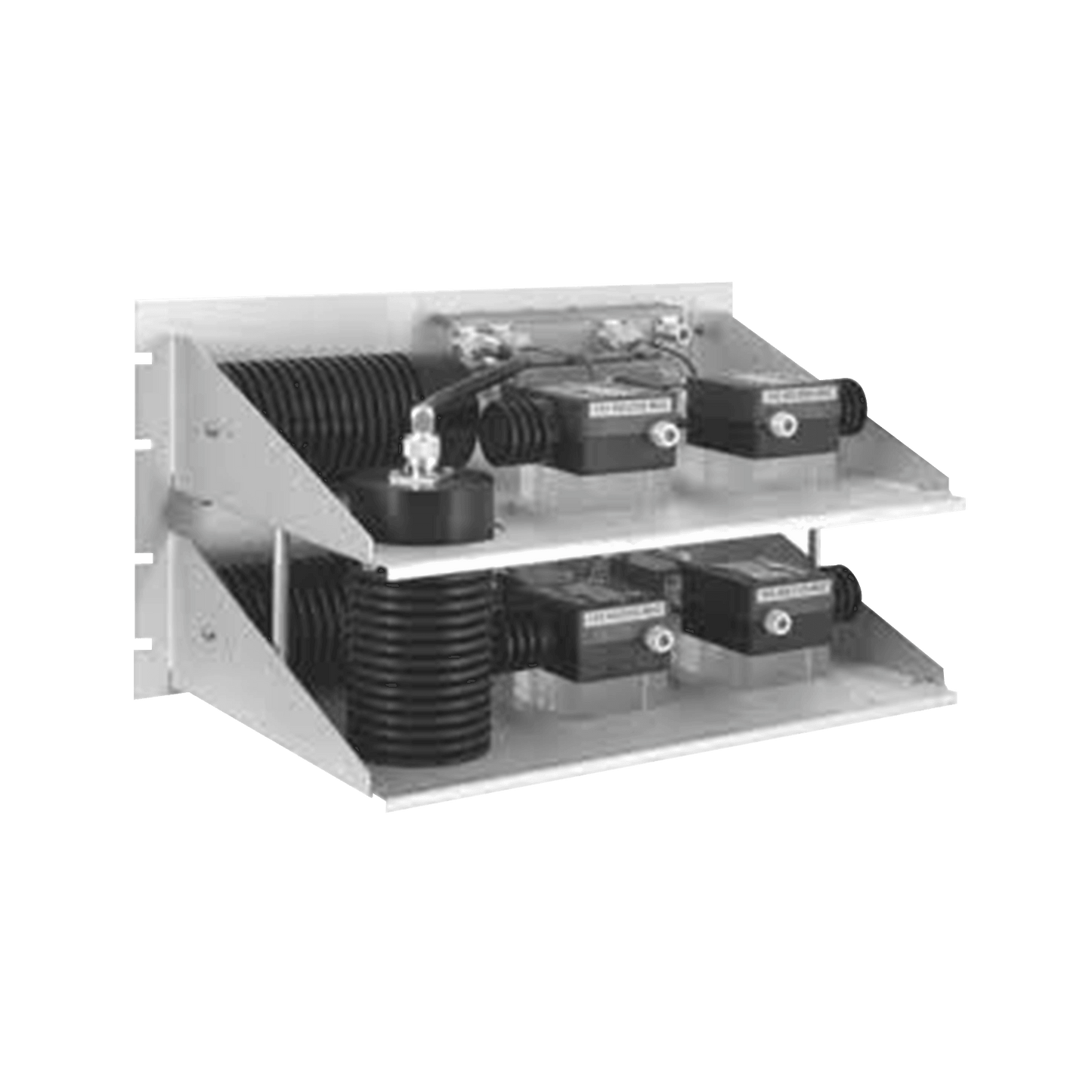

Hybrid Combiner for 19\" Rack, 400-512 MHz, 2 Channels, Double Isolator, 100/ 150 Watt, N Females.

  • 9ba7a470a23c8e30e71400fd297c0798
1 1

Out of stock

Modelo: TW450-2HRB1

Proveedor: TELEWAVE, INC

Código SAT: 32121800

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details


     19" Hybrid Rack Combiner, 406-512 MHz, 2 Channels, 100/ 150 Watt.

  • Frequency Range: 406-512 MHz.
  • Number of Channels: 2 (Double Isolator).
  • Input Power (Standard/Optional): 100 / 150 Watt per Channel.
  • Insertion Loss: 3.9 dB.
  • Isolation between Tx-Tx: 100 dB.
  • Isolation between Antenna-Tx: 65 dB.
  • Harmonic Attenuation: 65 dB.
  • Operating Temperature: -30 ºC to + 60 ºC.
  • Mounting: 19" Rack
  • Connectors: N Female.
  • Dimensions (Height x Width): 133 x 483 mm.
  • Weight: > 9.0 kg.

*Ask for Delivery Time.
