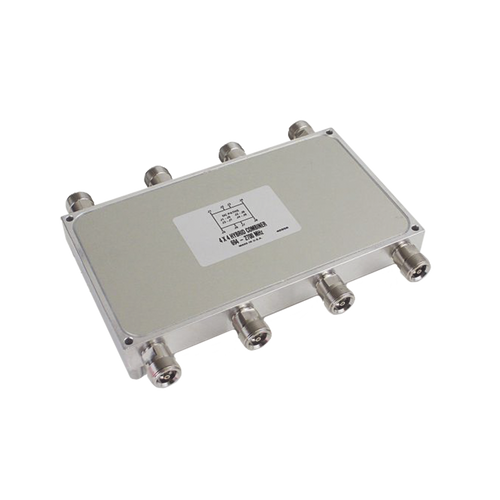

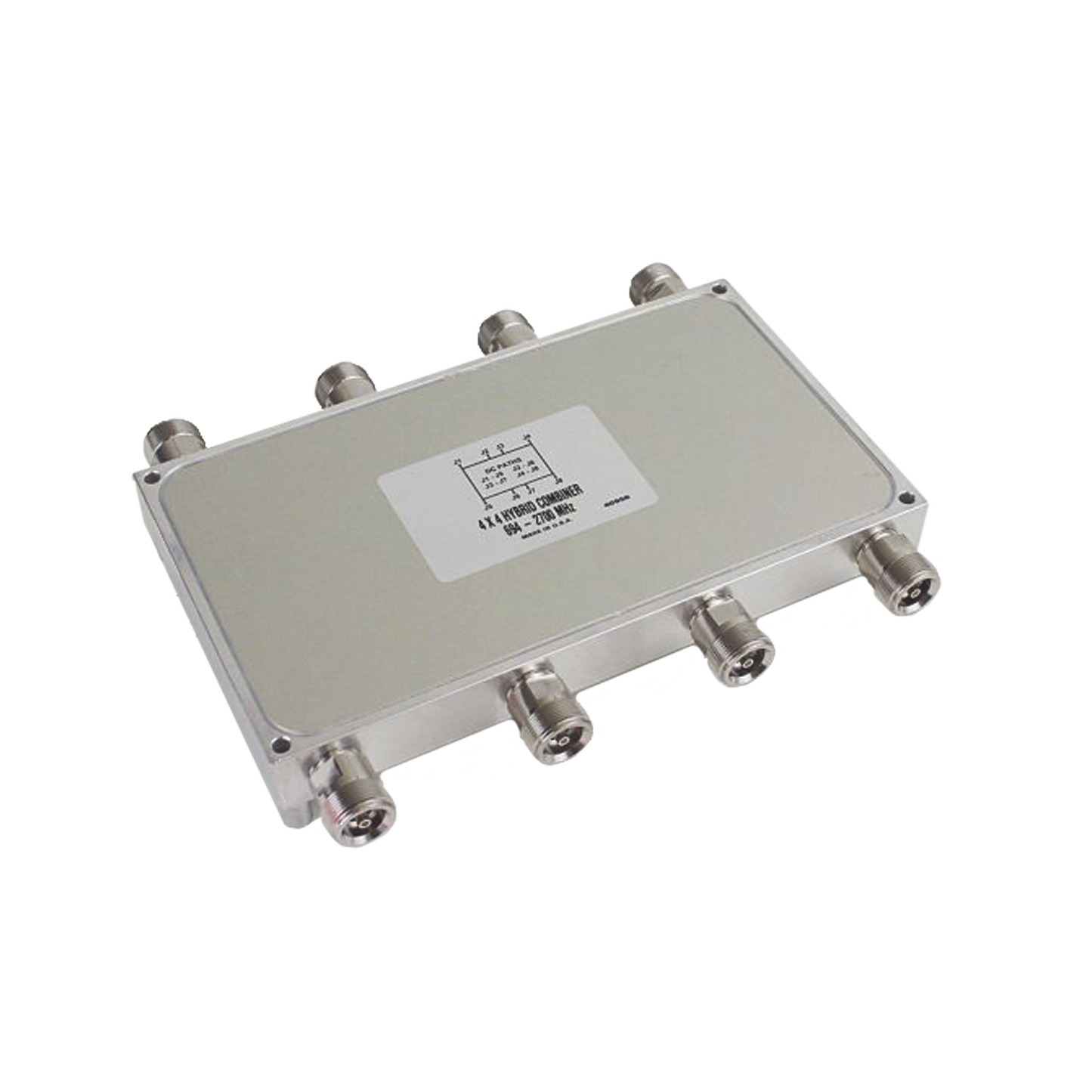

Hybrid combiner 4x4 694-2700MHz 150W -161dBc 4.3-10 IP64

4X4 HYBRID COMBINATOR 694-2700MHZ 150W -161DBC 4.3-10 IP64

Description

The 4x4 hybrid is an array of hybrid couplers arranged so that signals applied to any of the four inputs are divided equally between the four outputs. This allows the combination of multiple signals on the same wireless band to a common power cable, as might be required in a distributed antenna system in a neutral host building. Unused output ports must be externally terminated at 50 W, with adequate PIM performance. Note that the phase relationship of the outputs in this model is not consistent.
Special attention has been paid to maximizing isolation in the wireless bands and minimizing passive intermodulation (PIM). The unit is also available with 7-16 DIN or N connectors as part of the CM-x8D or CM-x8N series.

Characteristics

• Combine 4 inputs to 4 outputs
• 150W/Average input power
• Isolation up to 23 dB
• PIM under specified, -161 dBc
• Indoor environment IP64
• Low VSWR, low loss
• RoHS
