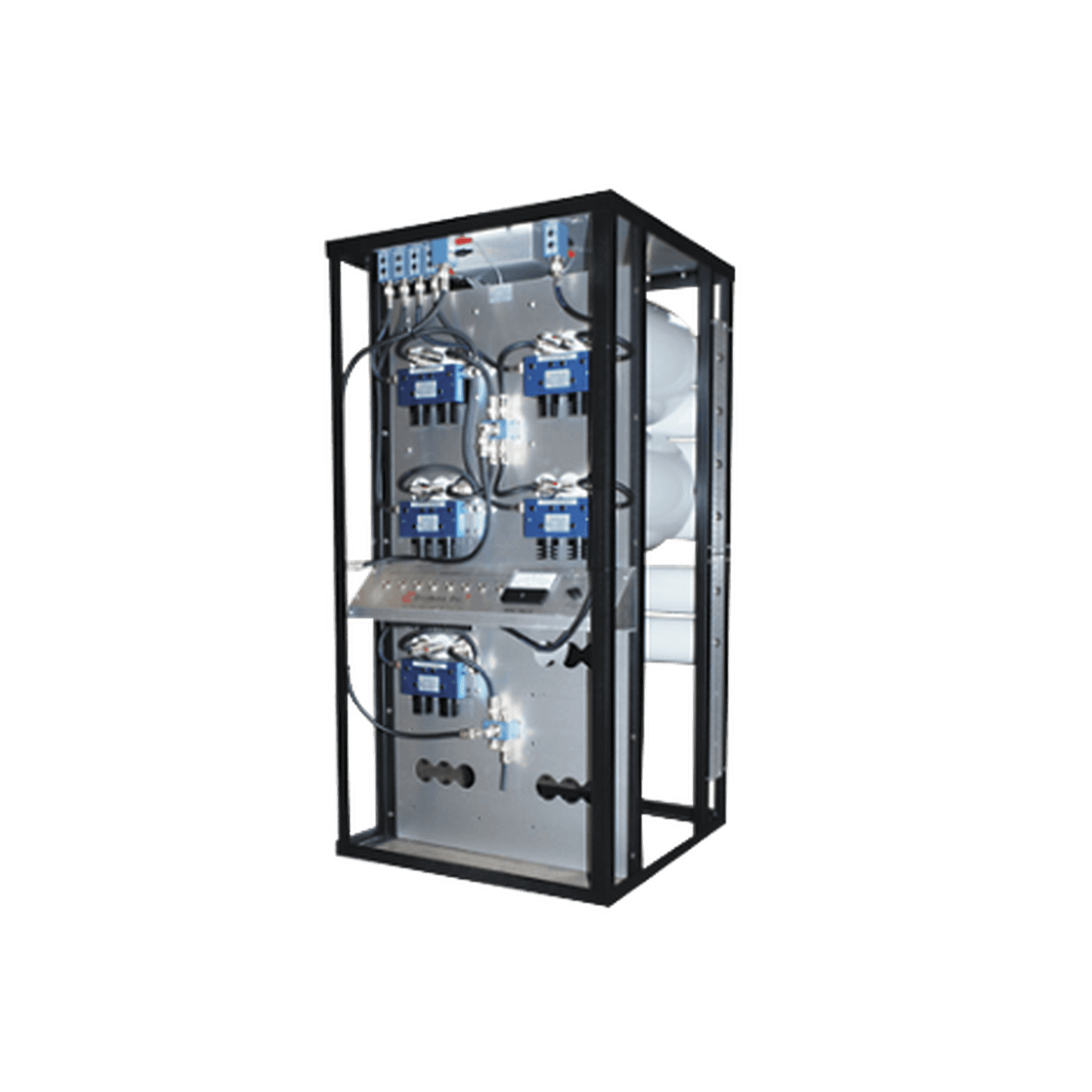

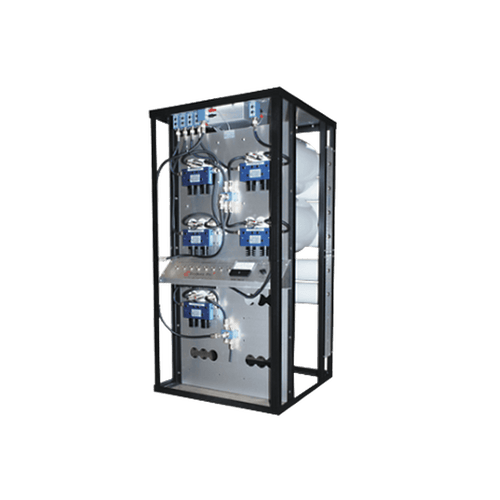

24\" Rack Combiner, 400-512 MHz, 7Channel(10\"Dia.) 250 KHz Tx-Tx, Monitor/Pot. 150 Watt, N Females.

  • c7f5a62e1e7de9cd8af2686d1faed375
1 1

Out of stock

Modelo: M101-450-7TRM

Proveedor: TELEWAVE, INC

Código SAT: 32121800

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

24" Rack Combiner, 400-512 MHz, 7 Channels, 250 KHz Tx-Tx, 150 Watt.
  • Frequency Range: 400-512 MHz.
  • Number of Channels: 7.
  • Cavity Size: 10" Diameter (1/4 Wave).
  • Panel Wattmeter for Power Monitoring.
  • Separation between Channels (min.): 250 kHz.
  • Input Power (max): 150 Watts per Channel.
  • Input Impedance / VSWR (typical): 50 Ohm / 1.25:1
  • Insertion Loss per Channel: 2.8 dB at 275 kHz Separation.
  • Isolation between Tx-Tx (typical): 80 dB.
  • Isolation between Antenna-Tx (typical): 75 dB.
  • 2nd Harmonic Suppression (typical): 90 dB.
  • Operating Temperature: -30ºC to + 60ºC.
  • Mounting / Connectors: Rack Mount 24" / N Female.
  • Dimensions (Height x Width x Depth): 122 x 61 x 61 cm.
  • Weight: 68.1kg.
*Ask for Delivery Time.
