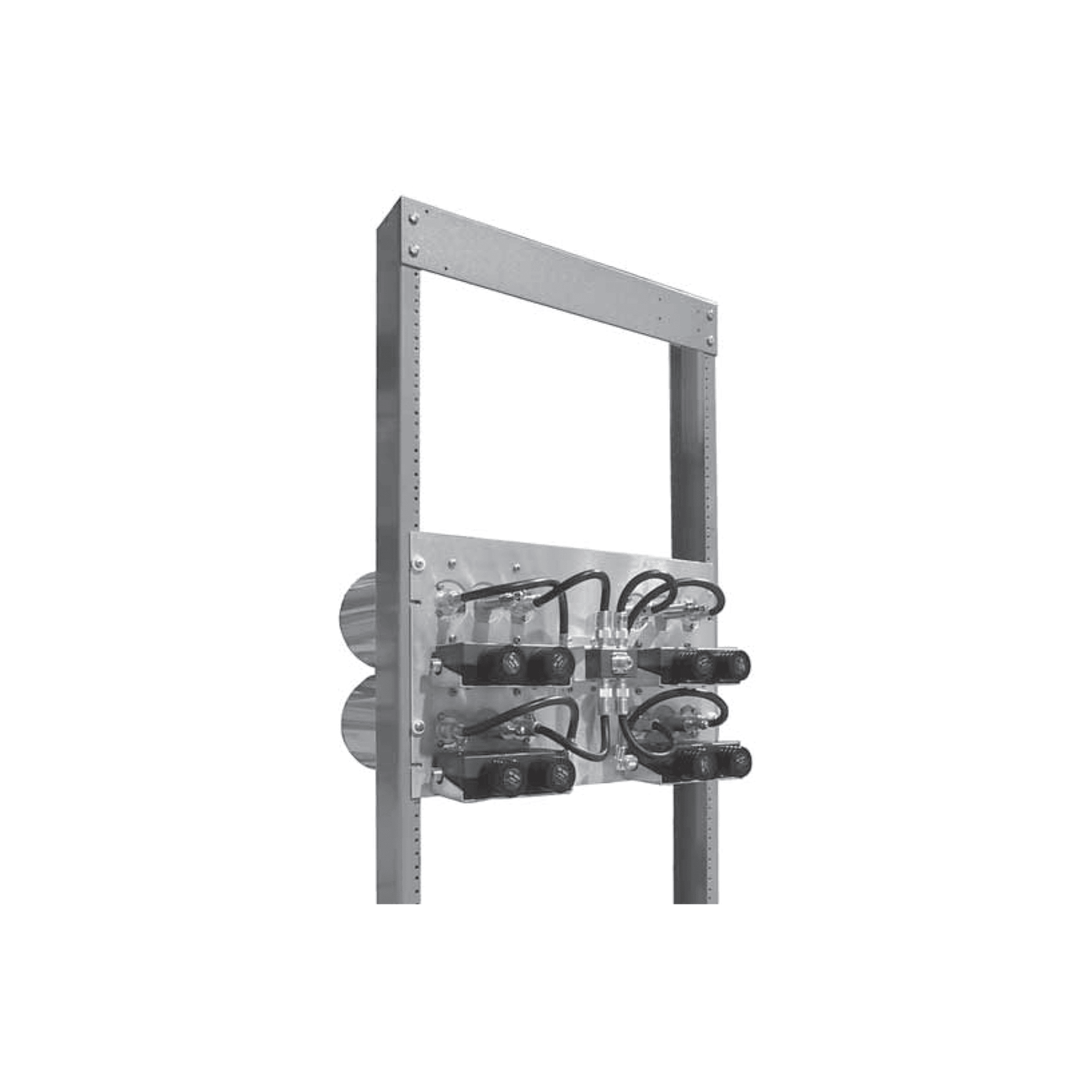

Panel Combiner for Rack 19\" 851-869 MHz, 4 Channels (6\" Diam.) 500 kHz, 100 Watt, N Females.

  • 89559a10ac2ac4b70bb413b4a0d45651
1 1

Out of stock

Modelo: M106-860-4TP

Proveedor: TELEWAVE, INC

Código SAT: 32121800

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details


      Panel Combiner for 19" Rack, 851-869 MHz, 4 Channels, 500 kHz, 100 Watt.​

  • Frequency range: 851-869 MHz.
  • Number of Channels: 4 (6" Diameter, 1/4 Wave).
  • Power Monitoring Rack and Panel are Optional.
  • Separation between Channels (min.): 500 kHz.
  • Input Power (max.): 100 Watt per Channel.
  • Input Impedance / VSWR (typical): 50 Ohm / 1.25:1
  • Insertion Loss per Channel: 2 dB @ 1 MHz; 3.2 dB @ 500 kHz.
  • Isolation between Tx-Tx (min.): 80 dB
  • Isolation between Antenna-Tx (min.): 65 dB.
  • 2nd Harmonic Suppression (typical): 90 dB.
  • Operating Temperature: -30ºC to +60ºC.
  • Mounting / Connectors: 19" Rack Mount / N Female.
  • Panel Dimension (Height x Width x Depth): 31 x 48.3 x 43.2 cm.
  • Weight: 34 kg (5 Can.)

*Ask for delivery time.
