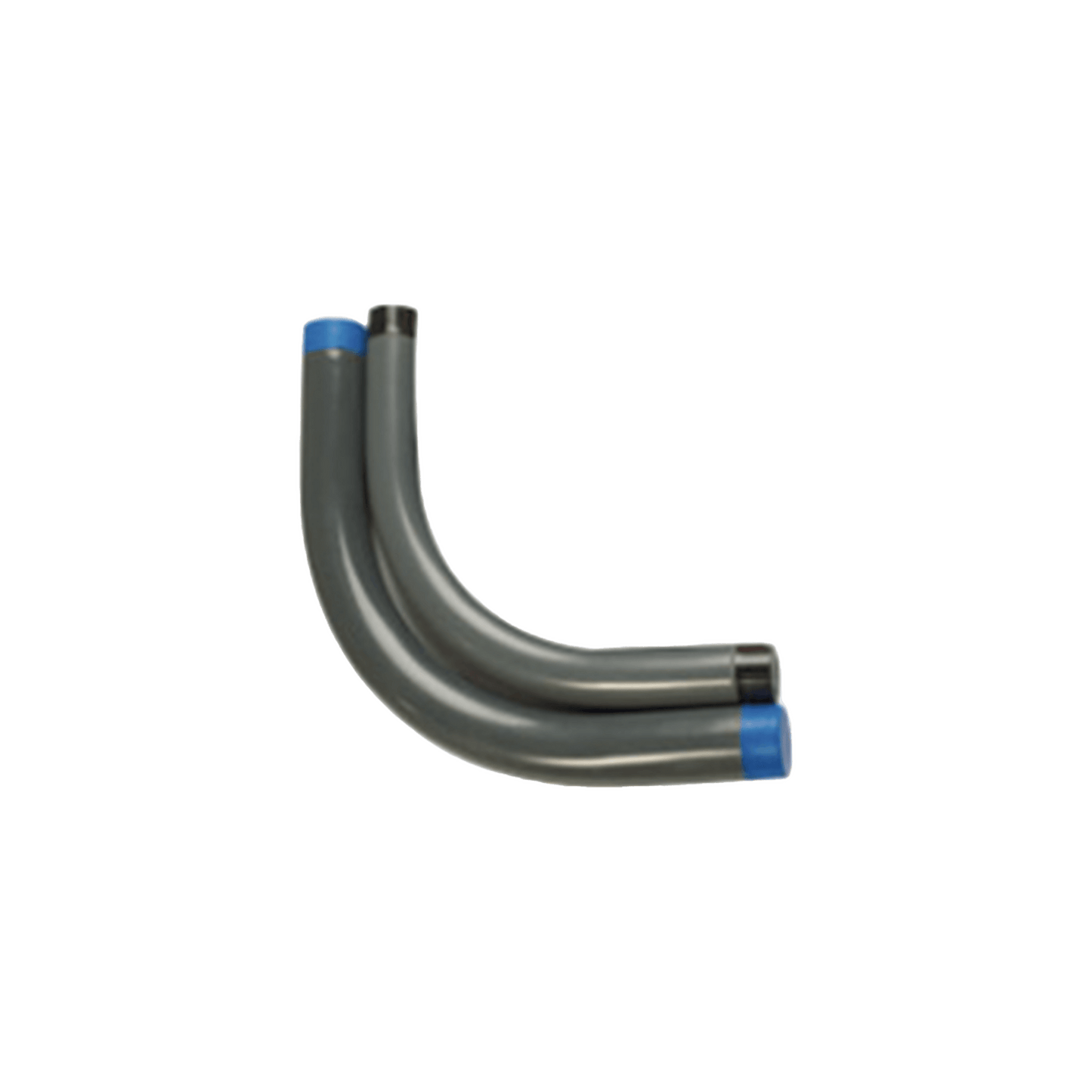

2 1/2\" (63.5 mm) Rigid Aluminum Conduit Elbow PVC Coated and Urethane Interior.

  • 9f1b1d533e2764914e70e1714da4d5ee
1 1

Out of stock

Modelo: CAL-63PC

Proveedor: RAWELT

Código SAT: 40171507

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Characteristics:

  • Proof of corrosive environments.
  • It has a uniform PVC (polyvinyl chloride) coating.
  • PVC coating: 40 mils minimum.
  • Purple Urethane: 2 mils minimum.
  • Salt chamber tests according to ASTM B117.
  • Adhesion tests according to ASTM 3359.
  • Resistance to mechanical impacts on the body according to IK09, thanks to its design that does not have elements susceptible to breakage.
  • Purple Urethane coating on threads.
  • Made of copper-free aluminum 6063, seamless, T1, T5.
  • Meets specifications of: Underwriters Laboratories UL-6A, "Standard for rigid metallic electrical conduit, aluminum, red brass and stainless steel."
  • Non-magnetic, anti-spark
  • Meets requirements of NEC 500 hazardous areas.
  • Corrosion resistant.
  • Own shielding against electromagnetic interference (EMI).
  • Improves thermal and electrical conductivity.
  • Improves grounding. ANSI C80.5 NEMA RN-1.
  • NPT thread.
  • Ideal for: traces, oil refineries, chemical plants, food processors, etc
  • It offers the most effective protection against corrosion caused by highly corrosive environments.

Specifications:

  • Measurement: 63.5 mm (2 1/2")
  • Outer diameter: 79mm (3.11")
  • Inner diameter: 63.98mm (2.52")
  • Wall thickness: 6.52 mm (0.255")
  • Weight per piece: 4,473 kg
