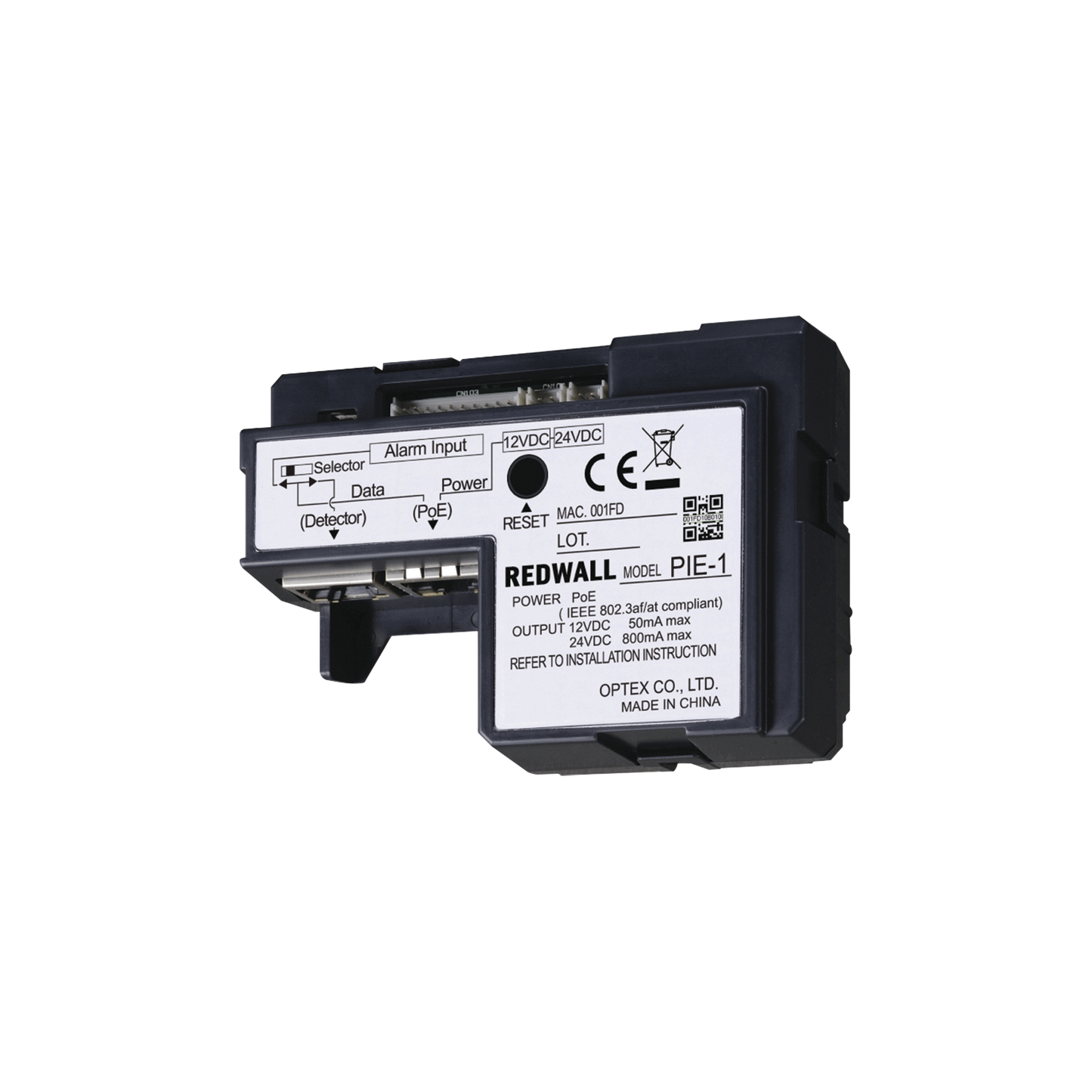

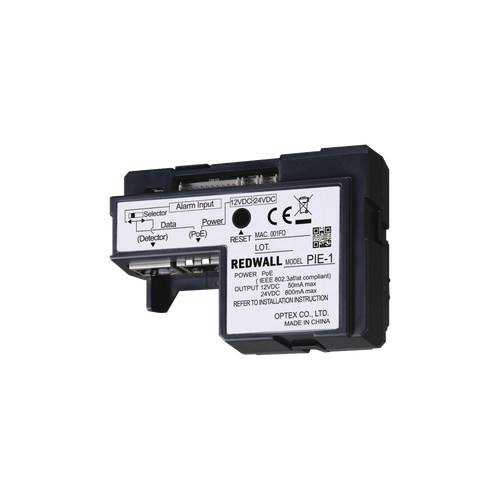

POE IP ENCODER for REDWALL SIP, REDSCAN (RLS3060), REDBEAM series

PIE-1 is an encoder that converts analog relay outputs to original ASCII code (Redwall event code) for Redwall SIP, Redscan, Redbeam detectors. You can now connect to all leading VMS platforms to control IP cameras. PIE-1 supports Power over Ethernet (PoE) IEEE802.3 af /at which makes it possible to supply power through a PoE hub or switch. Only one LAN cable is needed to connect the PIE-1 to a PoE hub or switch reducing installation time and cost.

The Optex PoE IP Encoder, offers extreme flexibility to allow the Optex sensor to be easily added to a security network with Milestone compatible technology. The unit has two RJ45 connectors (one as a network input, one as a pass-through output) and enough analogue and cable power inputs to integrate with any Optex sensor.

The PIE-1 fits into a standard dual gang box and acts as a power divider and Redwall event command encoder to send ASCII alarm commands to the network.

Characteristics:

• Change analog relay output signals (NC) to original ASCII code
• Supply power to detectors using PoE hub or switch
• Integrated with leading VMS platforms

Power input:
PoE (IEEE802.3af/en compliant)

Alarm output:
Redwall event code (UDP/TCP)

Current consumption:
24 V DC 800 mA maximum: 12V DC 50mA max

Operating temperature:
-40 to +140 degrees Fahrenheit
