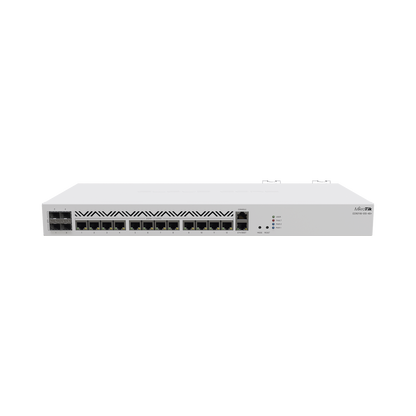

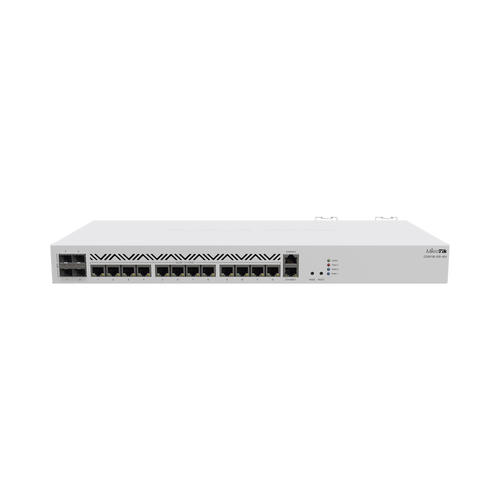

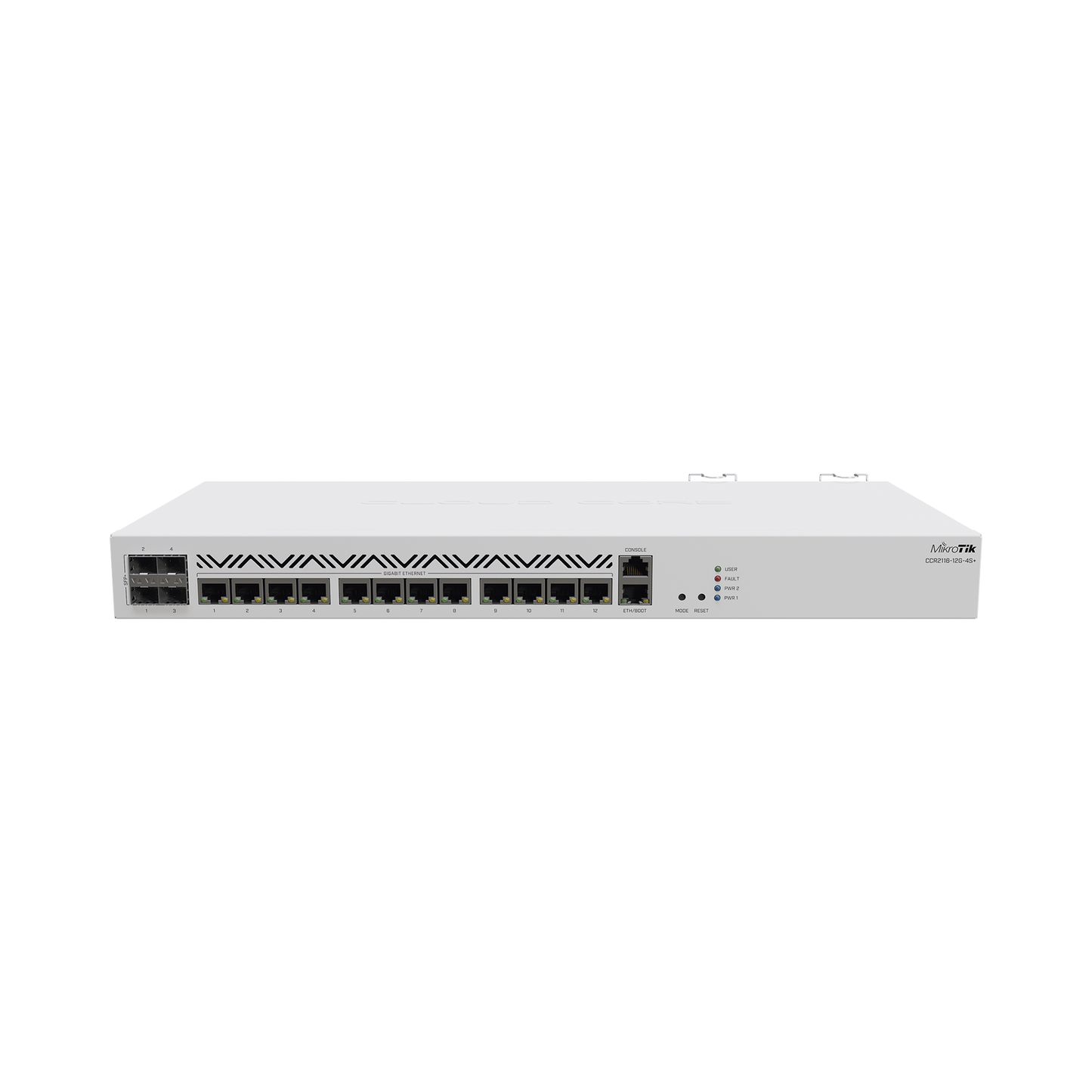

Cloud Core Router 16 ARM Cores, 12 Gigabit ports, 4 SFP+ 10G

We wanted to see the full potential of good 10G networks, old and reliable machines combined with a modern CPU. CCR2116-12G-4S+ allows you to forget about CPU limitations in your setup. Just like his younger brother, the incredible CCR2004, This router features the powerful Amazon Annapurna Labs Alpine CPU.

But with 16 cores running at 2 GHz, this CCR eats the other one for breakfast. For example, we see at least a 15% increase in single core performance. And that is the most important aspect when it comes to heavy operations based on connection processing. Like the queues, For example. CCR2116-12G-4S+ sets a new standard for single-core performance across the entire CCR product family! And it supports layer 3 hardware offloading!

Obviously, You need the right connectivity to harness this power. There is four 10G SFP+ ports. They have a separate full duplex line connected to the Marvell Aldrin family switch chip. Then we have Gigabit Ethernet ports. 12 of them run through the Marvel chip. And there is another Gigabit port connected directly to the CPU. For management purposes.

Each group of 4 ports has a separate full duplex connection to the switch chip. There are no bottlenecks here. You can expect switch-like performance in most configurations. The new generation of processors offers amazing performance.  If we look at CCR1036, the power with a 36-core CPU, the new CCR2116 can easily double the performance. 16 cores vs 36 cores. Double the performance. Or even more.

If you are a fairly large ISP, deals with dynamic routing, the massive BGP, complex firewall rules and intricate quality of service configurations. This is the right device for you. Combination of raw power and utility with the reliable 10G network. And yes, as with any ISP level device, we have included a dual redundant power supply. So you have one less thing to worry about.

CCR2116-12G-4S+: time-tested technology, designed for the future.

The device has a pre-installed and licensed operating system. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years from the date of purchase.
