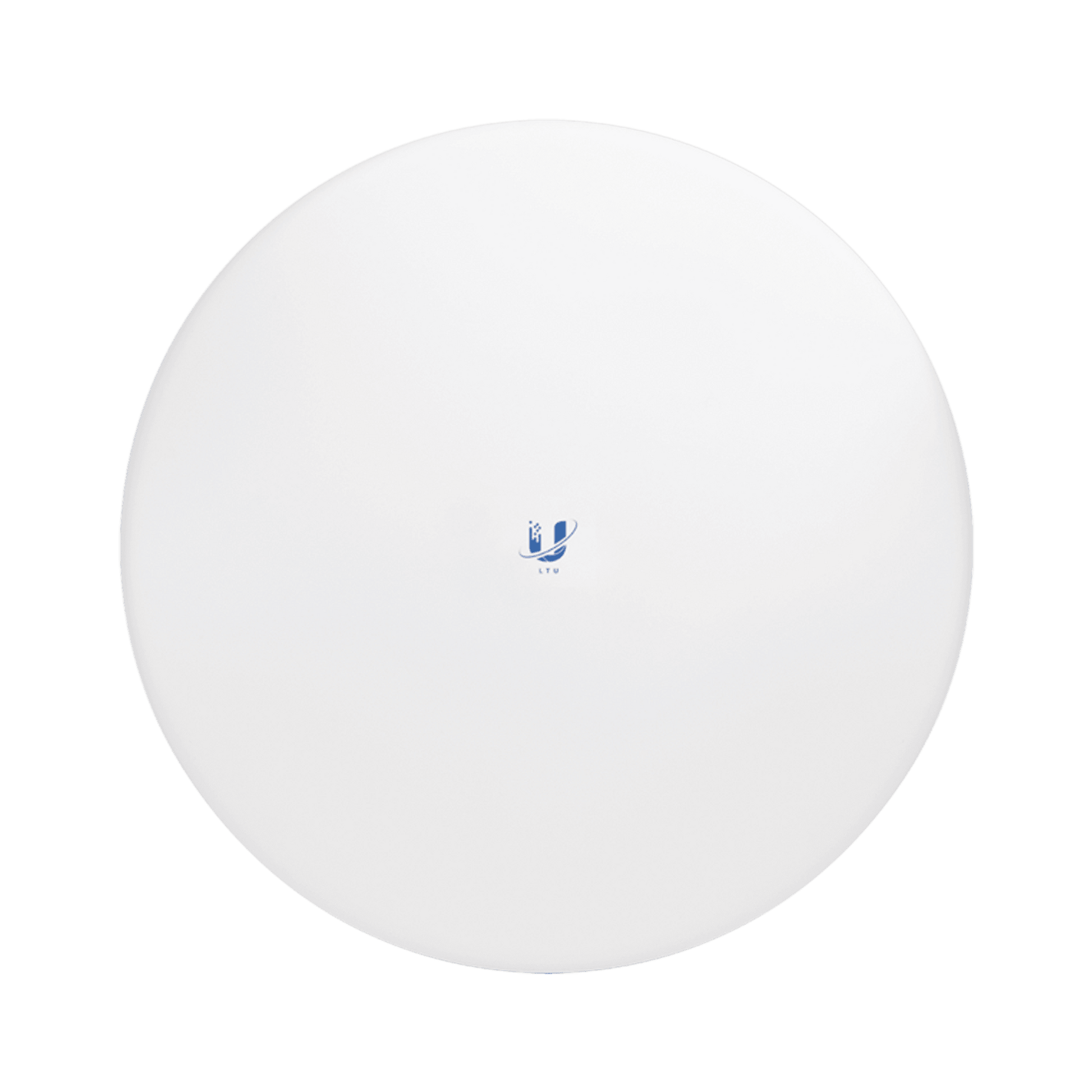

LTU™ Pro PtMP Client, 5 GHz (4.8 - 6-2 GHz) with integrated 24 dBi antenna

  • 21deb6cd89ac702df1be7b458c50fb00
  • 1dbc8a3467bc3c5b821ab13c2ec7b51d
  • 30e59bc3200c21b844ac9f3f94789747
  • 856409b773d72b3fdf4c0193356c4ae8
  • f63b9e0cd1092261970f314f0dfd96fb
1 5
  • Tecnología LTU para enlaces PTP en 5 GHz
  • Dimensiones compactas: 316.5 x 316.5 x 174.3 mm
  • Consumo máximo de 9W, eficiencia energética
  • Interfaz de red Gigabit Ethernet 10/100/1000
  • Adaptador PoE incluido, alimentación 24V pasivo

Out of stock

Modelo: LTU-PRO

Proveedor: UBIQUITI NETWORKS

Código SAT: 43222640

Tax included.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Technology designed for WISP

Unmatched spectral efficiency, noise resistance and scalability to power long-range wireless networks

Broadband radio technology at 5 GHz

PTP links between LTU subscribers with version 1.5.1

802.11n Spectral Efficiency Comparison, 802.11ac, airFiber vs LTU

Spectral Efficiency

Packages per Second

Modulation symbols

Exceptional Performance

Designed for difficult RF environments

The first end-to-end custom PtMP technology

No subscription fees, Fast flow and new features.

Multi-radio architecture that powers a revolutionary RF analysis engine

Ubiquiti Network Management System

LTU-Pro
Dimensions 316.5 x 316.5 x 174.3mm
(12.46 x 12.46 x 6.86")
Weight 1.3kg
(2.87lb)
Network interface (1) 10/100/1000 Ethernet Port
Enclosure Plastic
Max consumption 9W
Power supply 24V PoE Adapter 0.5A (Included)
Feeding method 24V Passive PoE (Pairs 4, 5+, 7, 8-)
Voltage Range 22 -26V
Max. Conducted TX Power 22 dBm (per Chain)
Revenue 24 dBi
Beamwidth 14th
Lateral lobe -10dB
Front-to-Back Ratio 27 dB

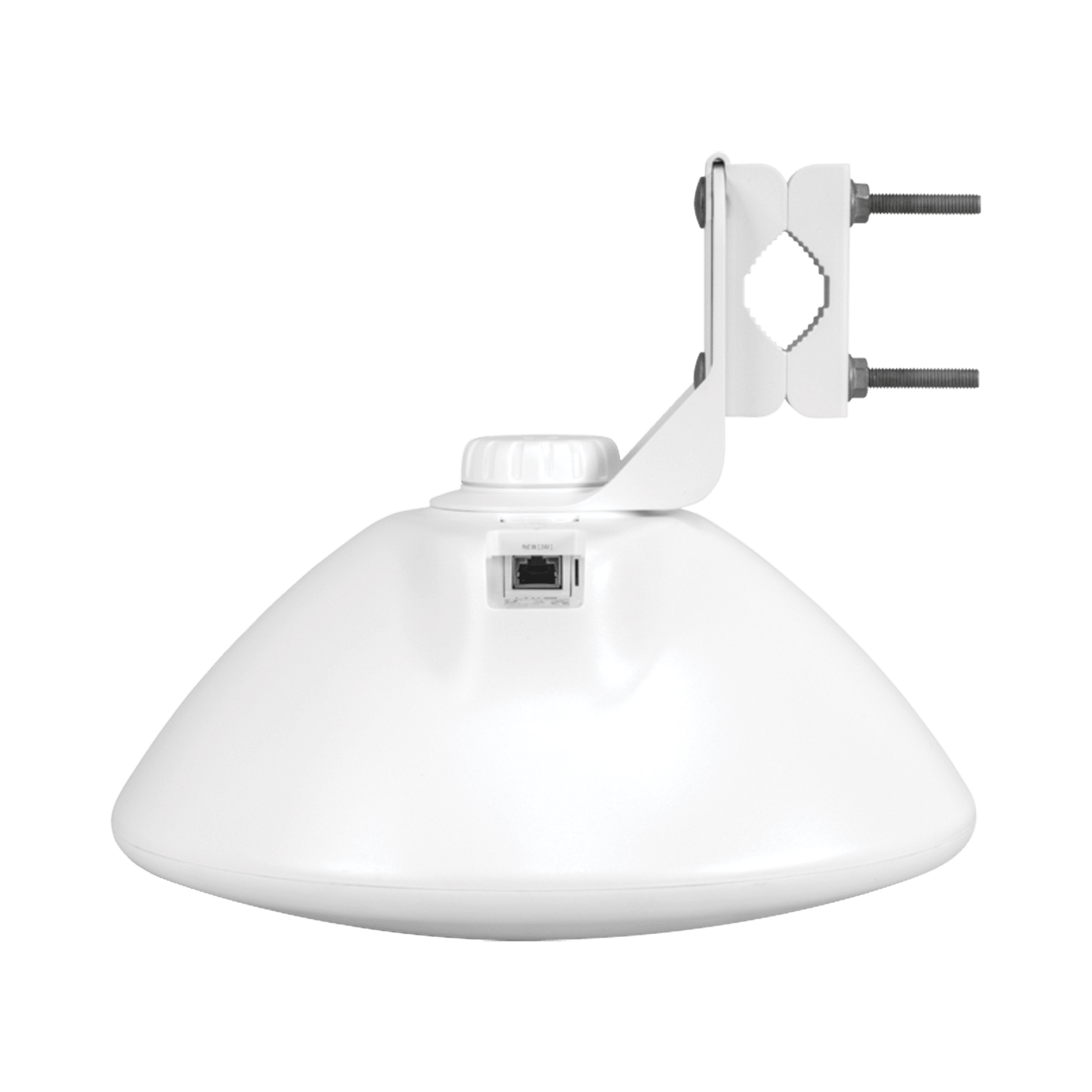

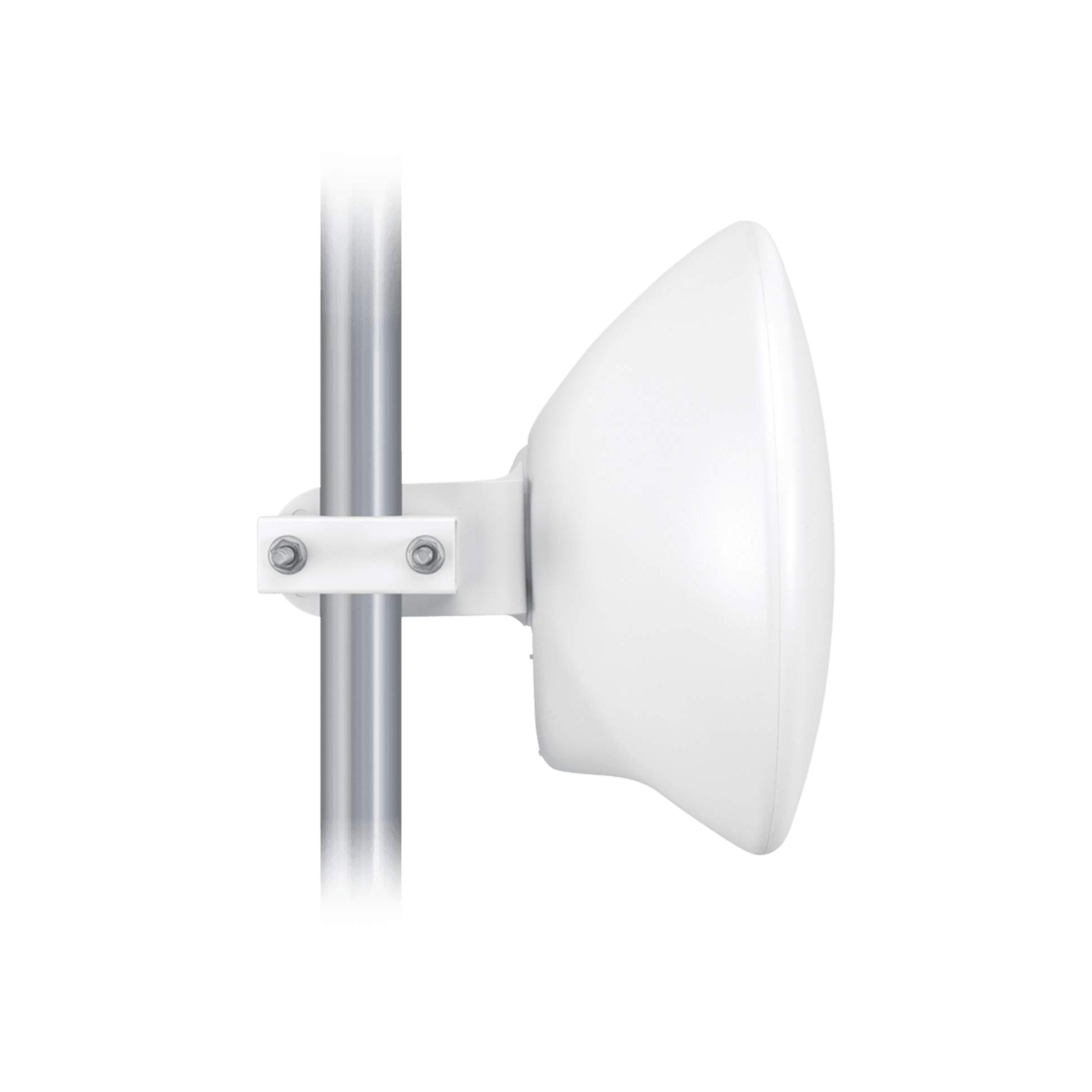

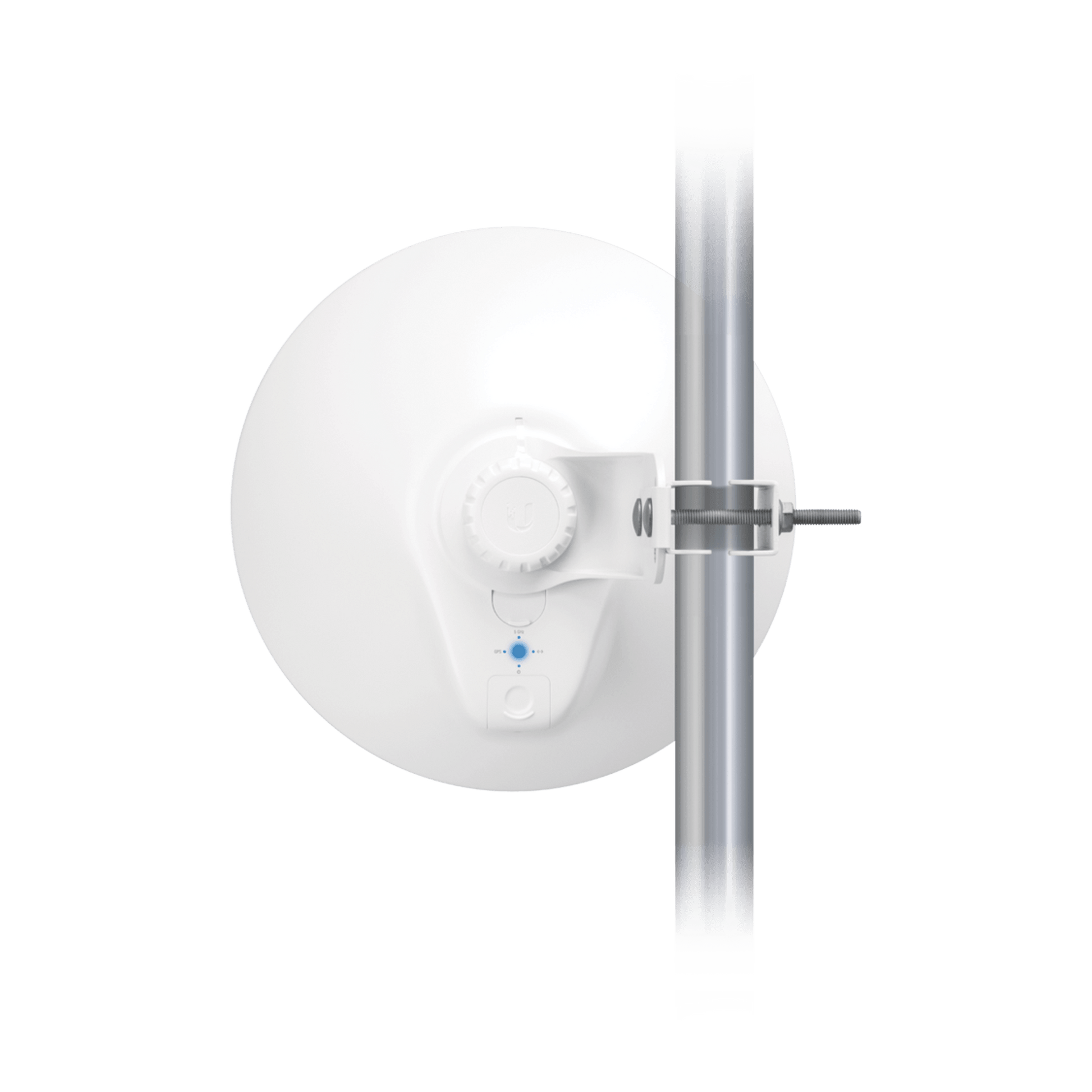

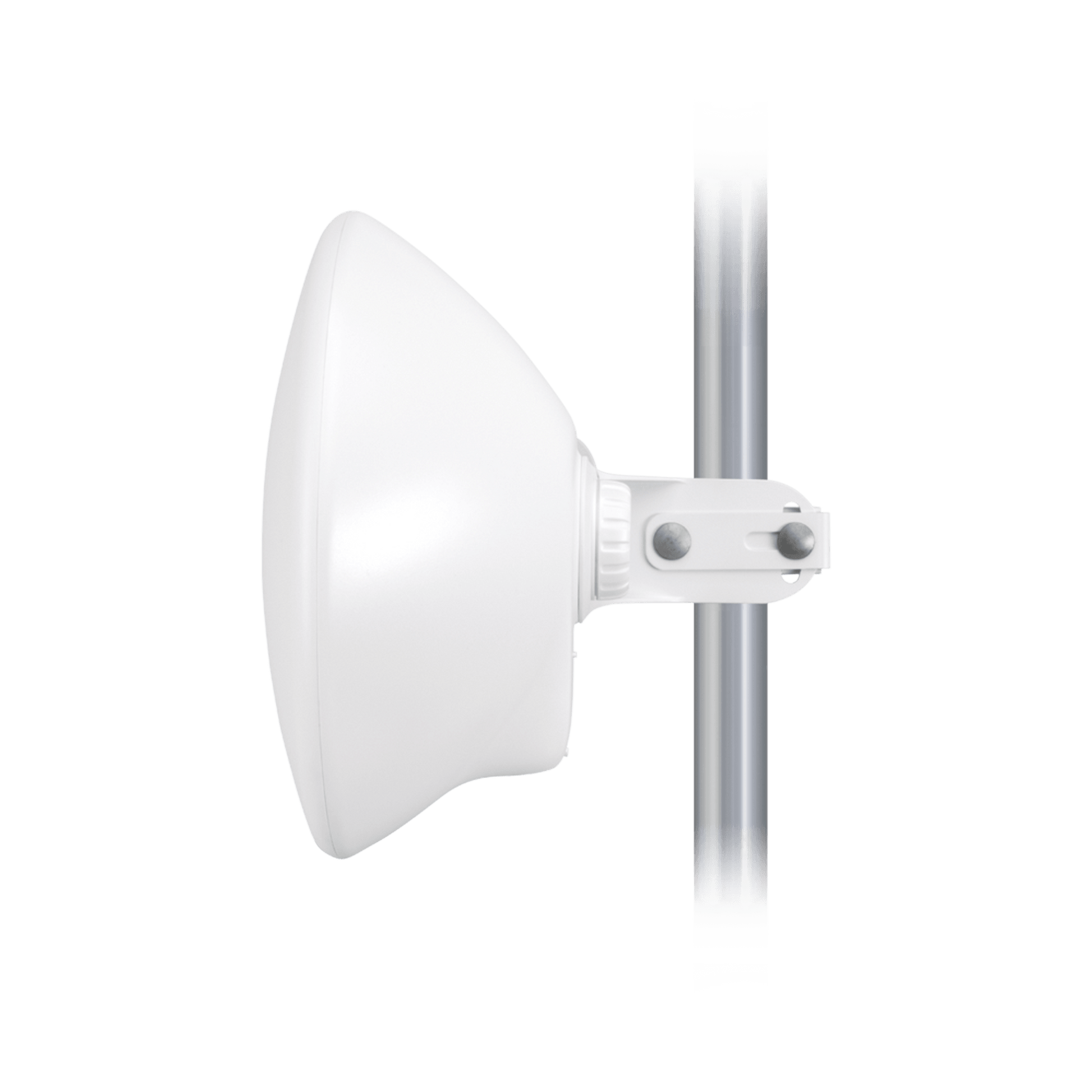

Mounting Pole Mounting (Included)
wind load 150N @ 200km/h
(33.72 lbf @ 125 mph)
Wind survival 200km/h
(125 mph)
ESD/EMP Protection ±24kV Contact/Air
Temperature range -5 to 40°C
(23 to 104°F)
Humidity 10 -90% No Condensation
Certifications CE, FCC, I.C.
Frequency range (MHz)
Worldwide 2400 -2483.5*
4800 -6200*
US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3
5150 -5250
5250 -5350
5470 -5725
5725 -5850
EU 2400 -2483.5
5150 -5875

*Depends on regulatory region
*To make PTP links with LTU subscribers (LTU-PRO, LTU-LR, LTU-LITE) both radios must have firmware updated to Version 1.5.1
