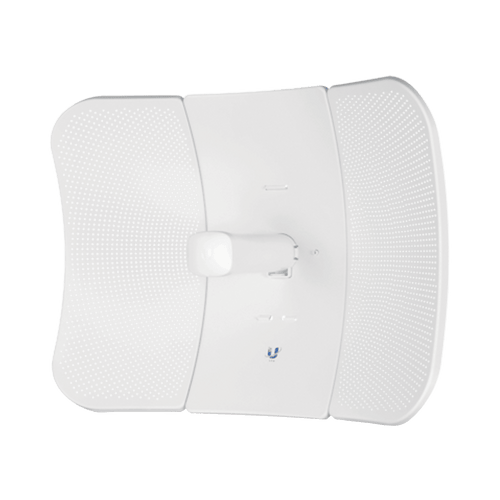

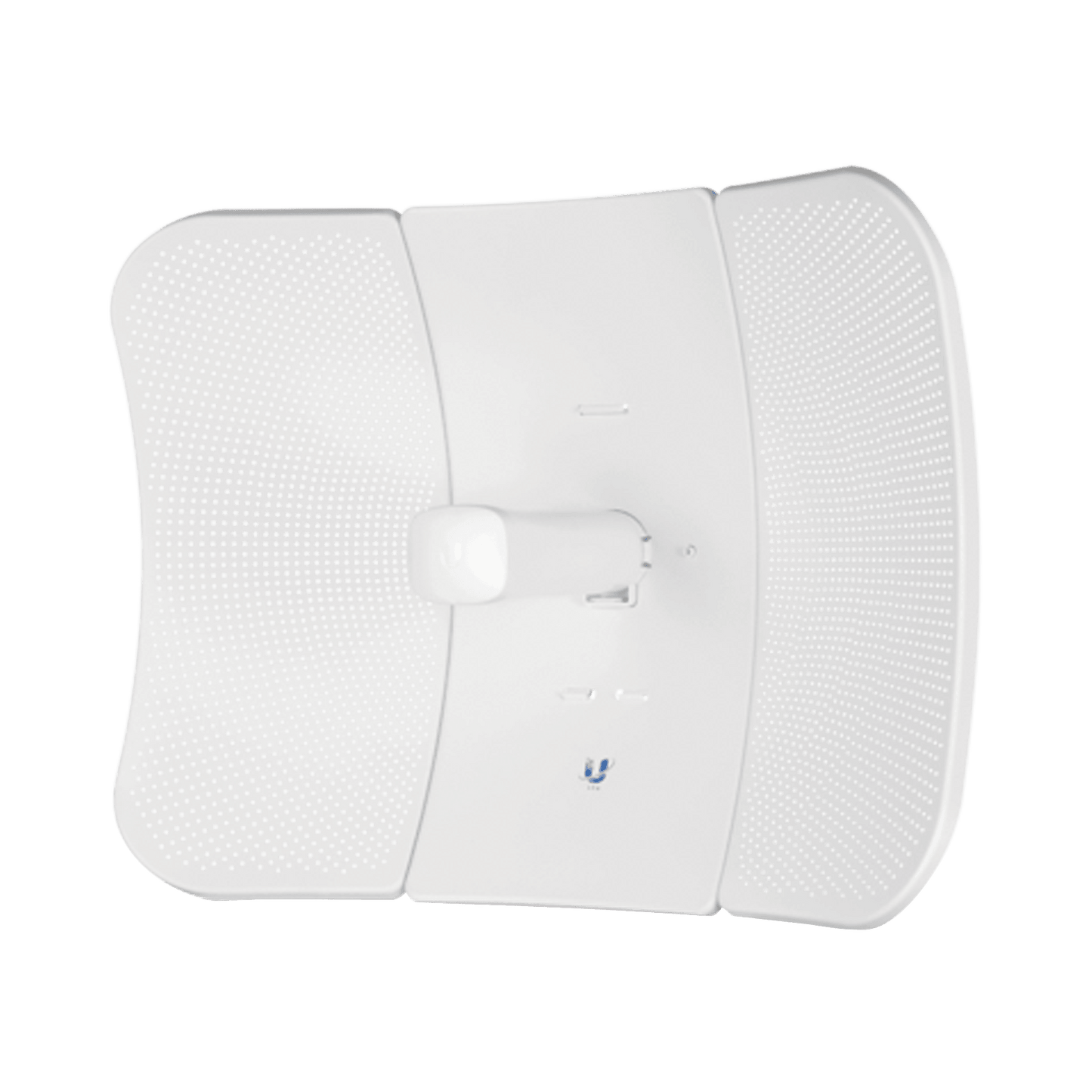

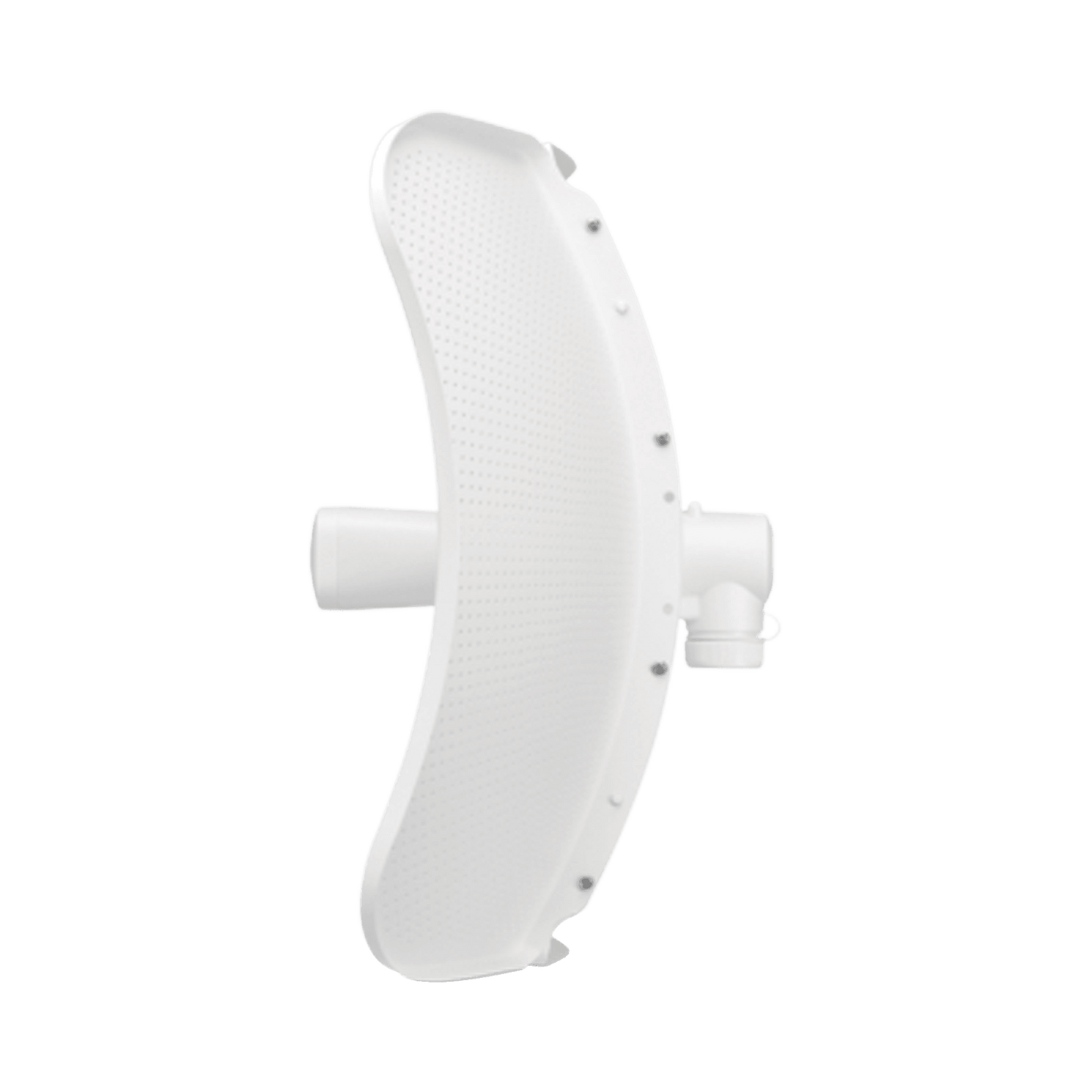

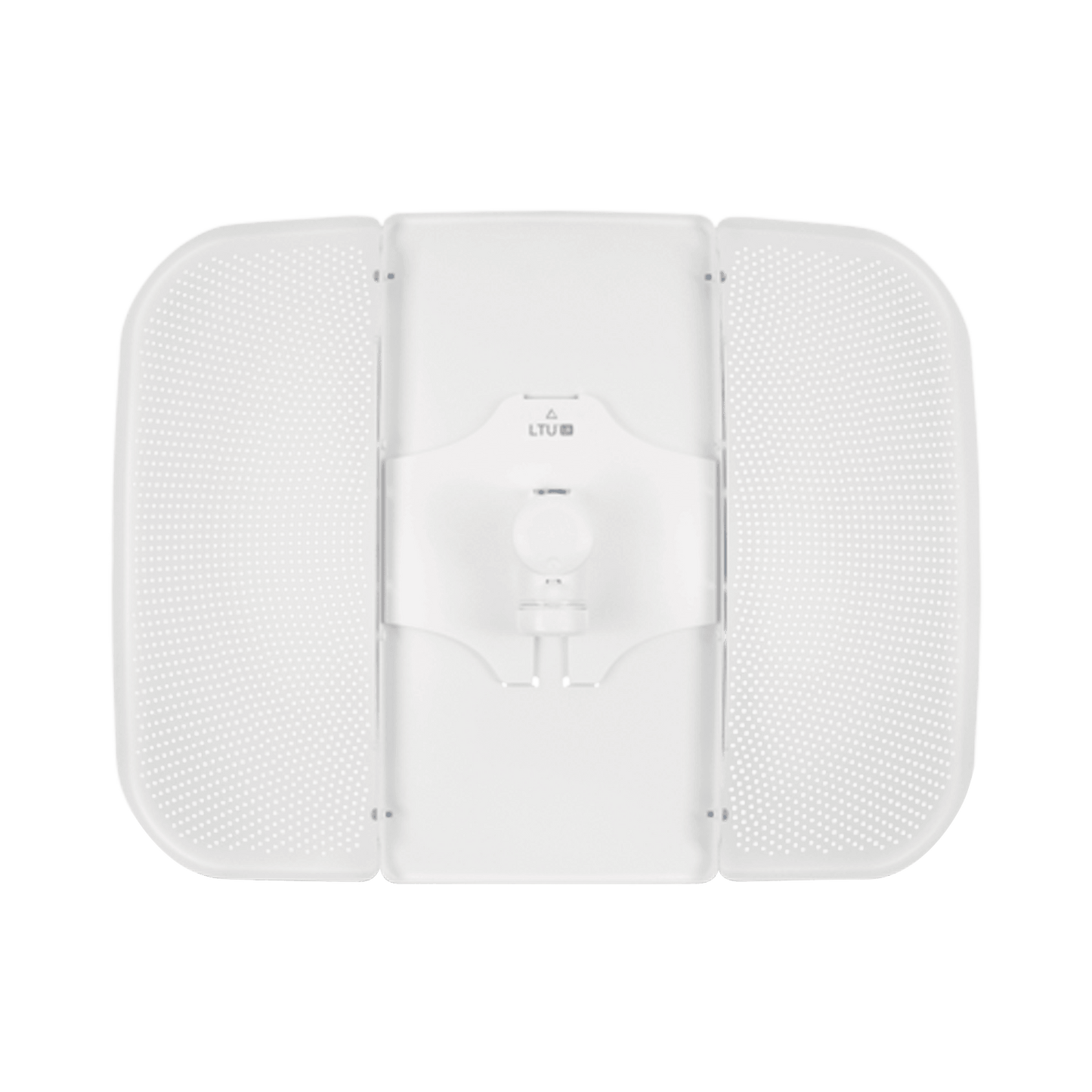

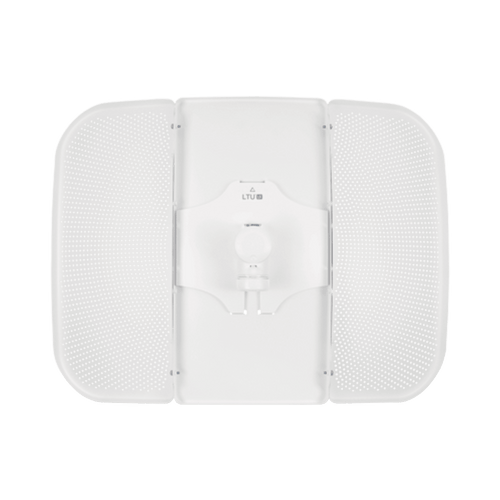

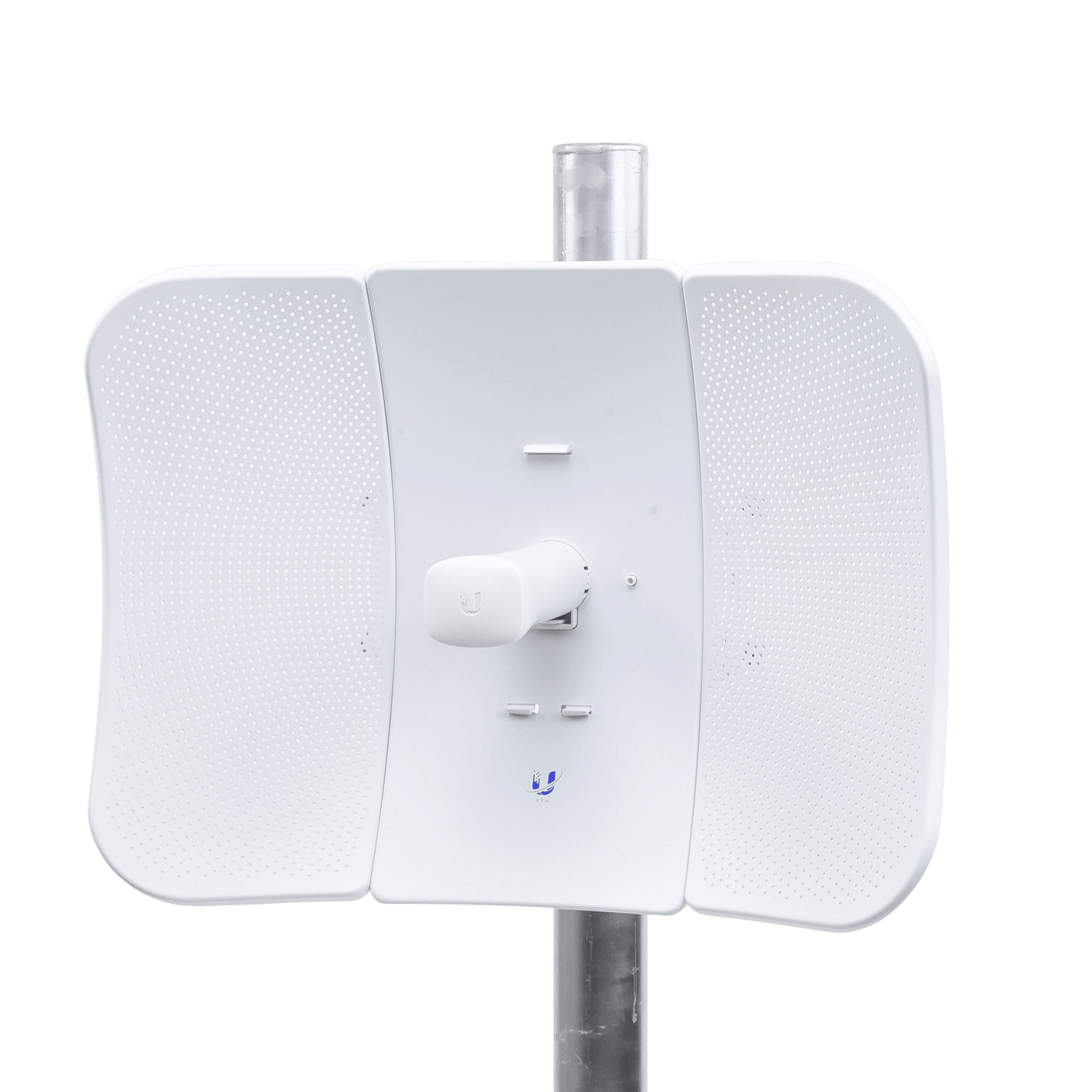

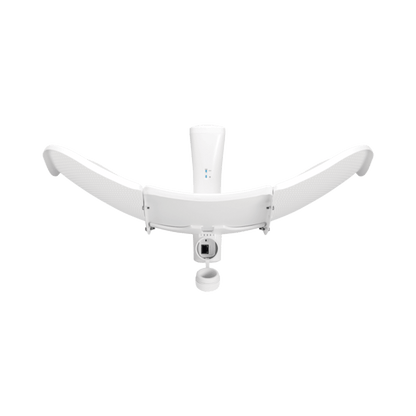

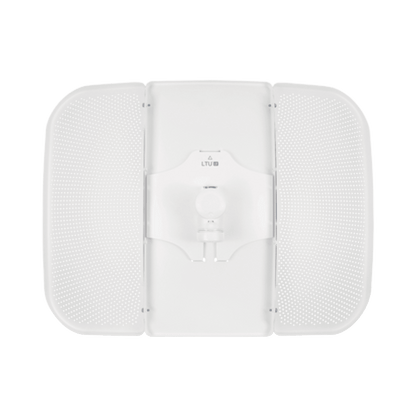

LTU™ Long Range PtMP Client, 5 GHz (4.8 - 6-2 GHz) with integrated 26 dBi antenna

  • 7cb0c81234bde5e64b1bc280b0423740
  • b31afa75795193acc3f17540c7948e8a
  • 00dd65dbc2e7559ffb6e1324306237d5
  • f15211f6787fe58da879ca47c2fbd074
  • ad1679f87a80e0fa832fab43a603e0cf
1 5
  • Tecnología WISP con eficiencia espectral incomparable
  • Operación en 5 GHz, enlaces PTP seguros
  • Arquitectura multi-radio, análisis RF revolucionario
  • Dimensiones 512.5x385.75x258.3mm, peso 1.735 kg
  • Consumo máximo de 8.5W, adaptador PoE incluido

Out of stock

Modelo: LTU-LR

Proveedor: UBIQUITI NETWORKS

Código SAT: 43222640

Tax included. Shipping calculated at checkout.
Our Commitment ×
By purchasing this product you are making a positive impact. We contribute of each sale and we’ve partnered with WeAreGoodness.io
Let’s do some good
View full details

Technology designed for WISP

Unmatched spectral efficiency, noise resistance and scalability to power long-range wireless networks

Broadband radio technology at 5 GHz

PTP links between LTU subscribers with version 1.5.1

802.11n Spectral Efficiency Comparison, 802.11ac, airFiber vs LTU

Spectral Efficiency

Packages per Second

Modulation symbols

Exceptional Performance

Designed for difficult RF environments

The first end-to-end custom PtMP technology

No subscription fees, Fast flow and new features.

Multi-radio architecture that powers a revolutionary RF analysis engine

Ubiquiti Network Management System

LTU-LR
Dimensions 512.5 x 385.75 x 258.3mm
(20.18 x 15.19 x 10.17")
Weight
Weight with assembly		 1,360 kg (2,998 lb)
1,735 kg (3,825 lb)

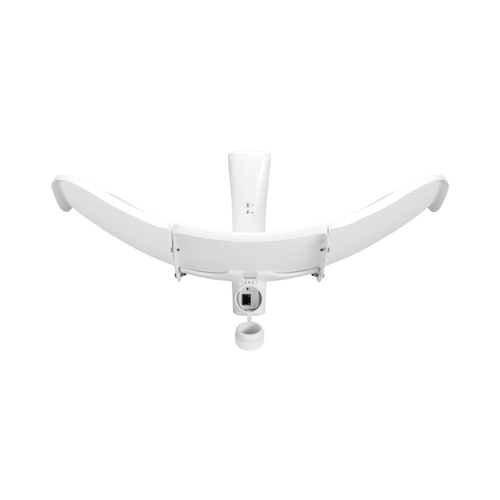

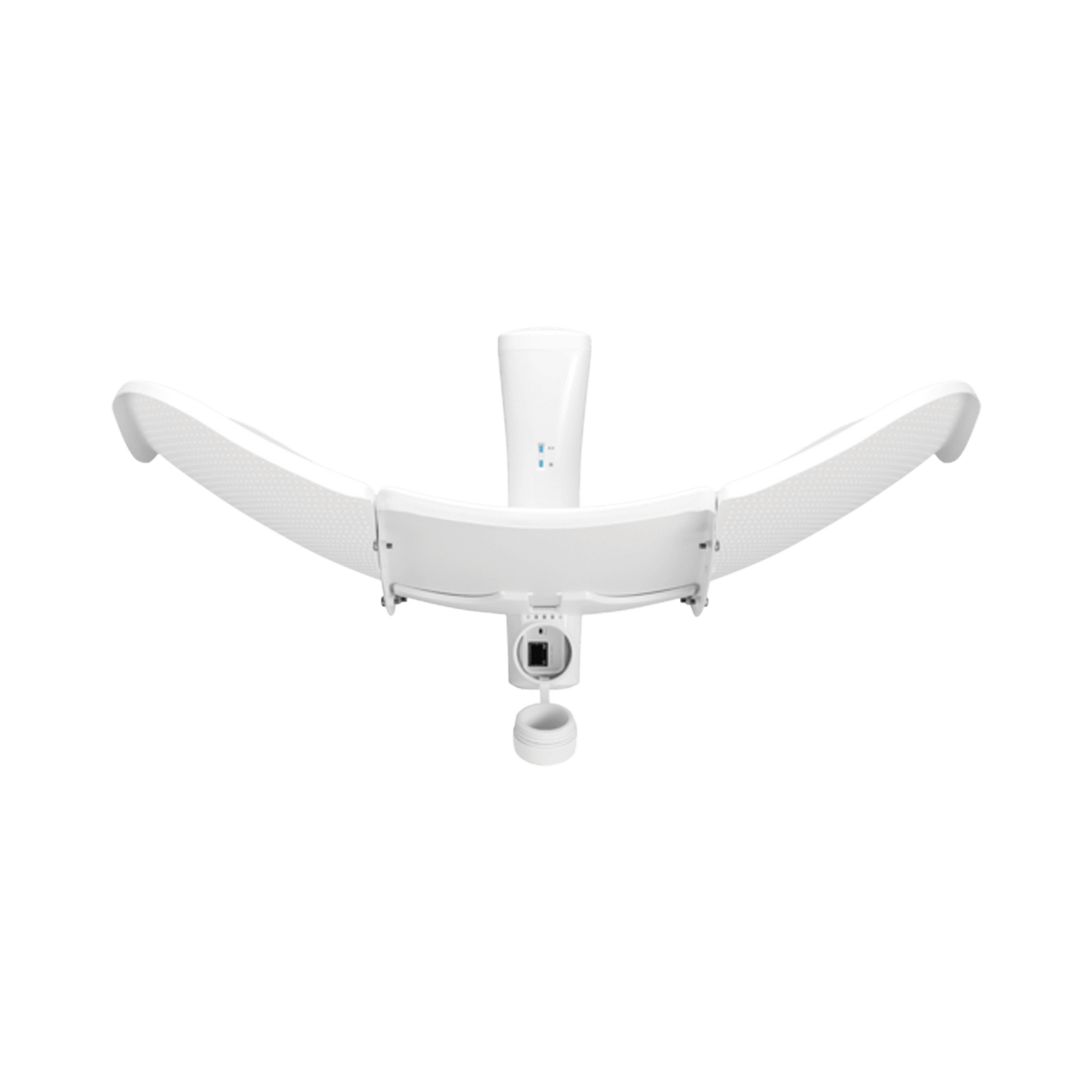

Network interface (1) 10/100/1000 Ethernet Port
Enclosure Plastic
Max consumption 8.5W
Power supply 24V PoE Adapter 0.5A (Included)
Feeding method 24V Passive PoE (Pairs 4, 5+, 7, 8-)
Voltage Range 22 -26V
Max. Conducted TX Power 22 dBm (per Chain)
Revenue 26 dBi

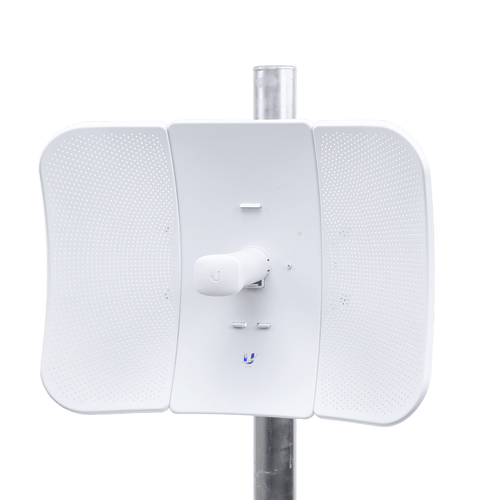

Mounting Pole mounting (kit included)
wind load 550N @ 200km/h
(123.6 lbf @ 125 mph)
Wind survival 200km/h
(125mph))
ESD/EMP Protection ±24kV Contact/Air
Temperature range -40 to 60°C
(-40 to 140°F)
Humidity 5 -95% No Condensation
Certifications CE, FCC, I.C.
Frequency range (MHz)
Worldwide 2400 -2483.5*
4800 -6200*
US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3
5150 -5250
5250 -5350
5470 -5725
5725 -5850
EU 2400 -2483.5
5150 -5875

*Depends on regulatory region
*To make PTP links with LTU subscribers (LTU-PRO, LTU-LR, LTU-LITE) both radios must have firmware updated to Version 1.5.1.
